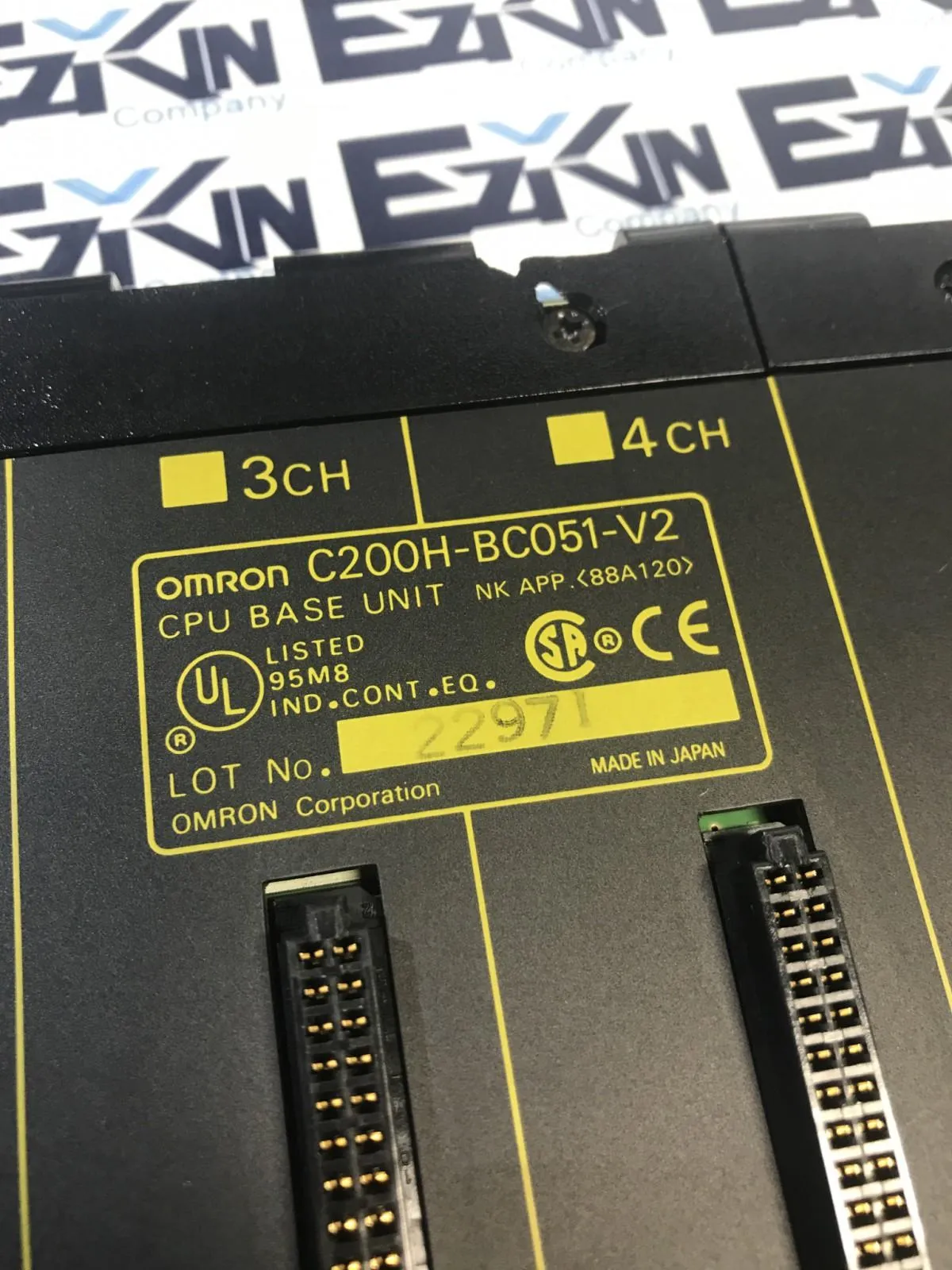

Omron C200H-BC051-V2 CPU 5-Slots Base Unit

The Omron C200H-BC051-V2 is a 5-slot CPU base unit for the C200H series PLC system. It provides the primary mounting and backplane connection for the CPU and up to four additional I/O or special-purpose modules. Technical Specifications: Model: C200H-BC051-V2 Series: SYSMAC C200H Base Type: CPU Base Unit Number of Slots: 5 (1 for CPU, 4 for I/O or option modules) Power Supply Mounting: Right-side (dedicated slot) Module Mounting Orientation: Horizontal Backplane Communication: Integrated bus for signal and power distribution Compatibility: Omron C200H-series CPUs and modules Material: Durable industrial-grade resin Dimensions (HxWxD): Approx. 130 x 315 x 100 mm Weight: Approx. 1.1 kg Installation: Panel or DIN rail mountable Operating Temperature: 0°C to 55°C Storage Temperature: -20°C to 75°C Humidity: 10% to 90% RH (non-condensing) Country of Origin: Japan Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.50

Depth:   6.00

Length:   20.00

Width:   10.00

SKU:   3753 4.S8.8.4A
