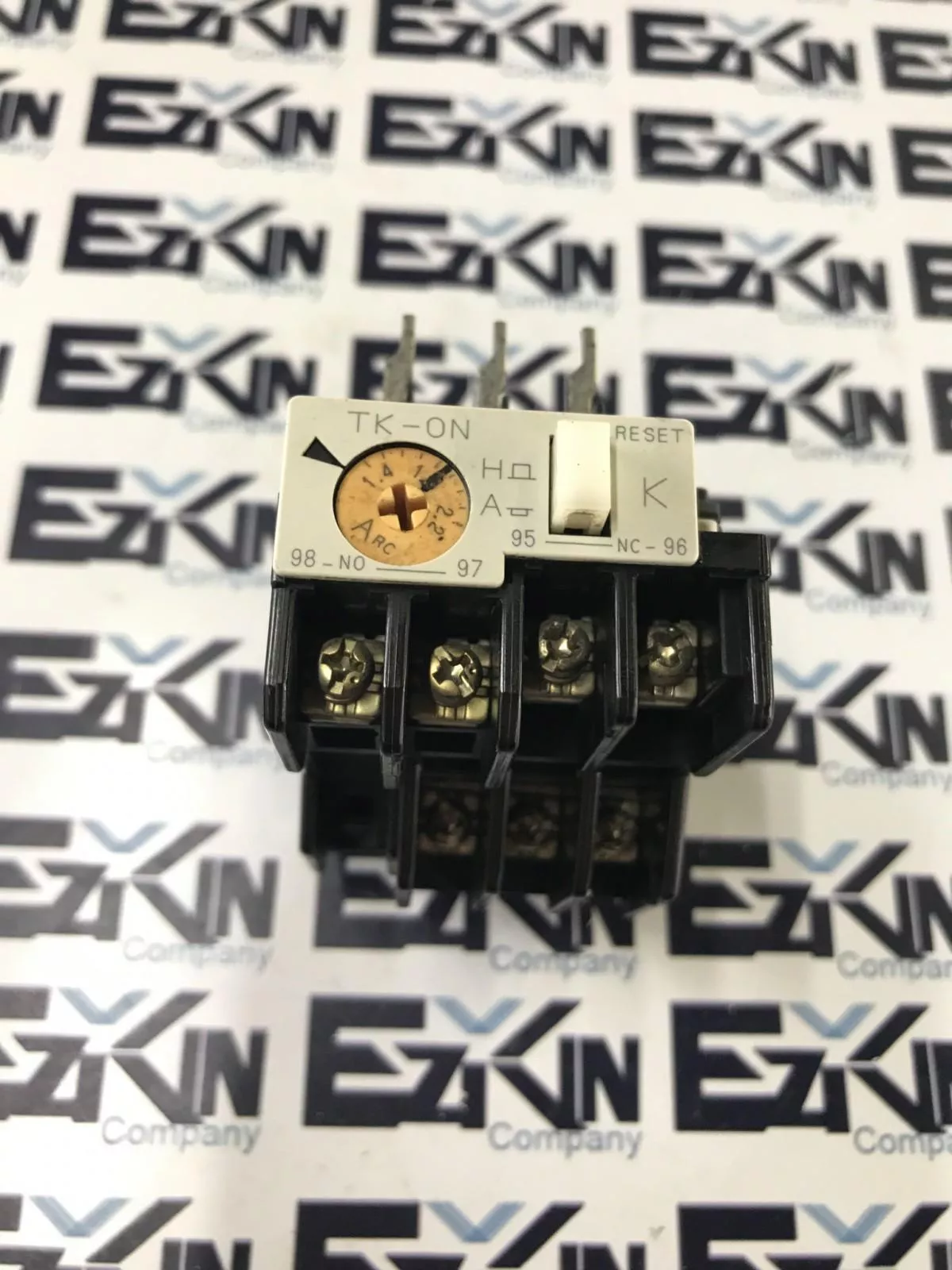

Fuji Electric TK-ON TR13E Overload Relay, 1.4-2.2A 600VAC

The Fuji Electric TK-ON TR13E is a thermal overload relay used to protect motors from overload and phase failure. It provides an adjustable current setting and is compatible with a wide range of motor starters in systems up to 600 VAC. Technical Specifications: Model: TK-ON TR13E Type: Thermal Overload Relay Current Adjustment Range: 1.4–2.2 A Rated Operational Voltage: Up to 600 VAC Trip Class: 10 Number of Poles: 3-pole motor protection Reset Method: Manual and automatic reset Auxiliary Contacts: 1 NO + 1 NC Mounting: Direct mount onto compatible Fuji contactors (e.g., SC series) Ambient Temperature Compensation: Yes Trip Indicator: Mechanical flag Protection: Overload and phase failure Conformity: UL, CSA, and IEC compliant Application: General motor protection in industrial control systems Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.50

Depth:   4.00

Length:   10.00

Width:   8.00

SKU:   3777 4.S10.1.3I
