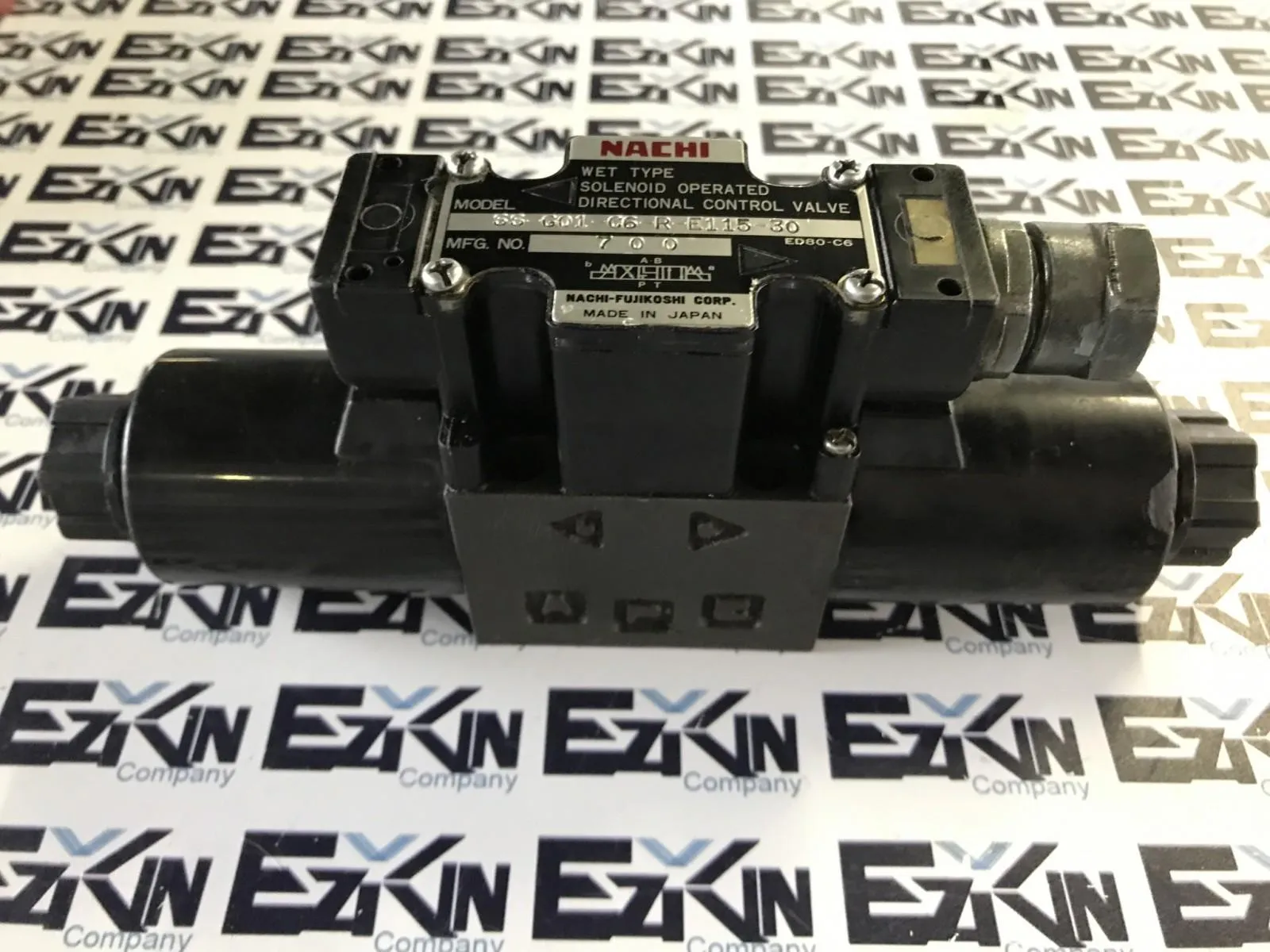

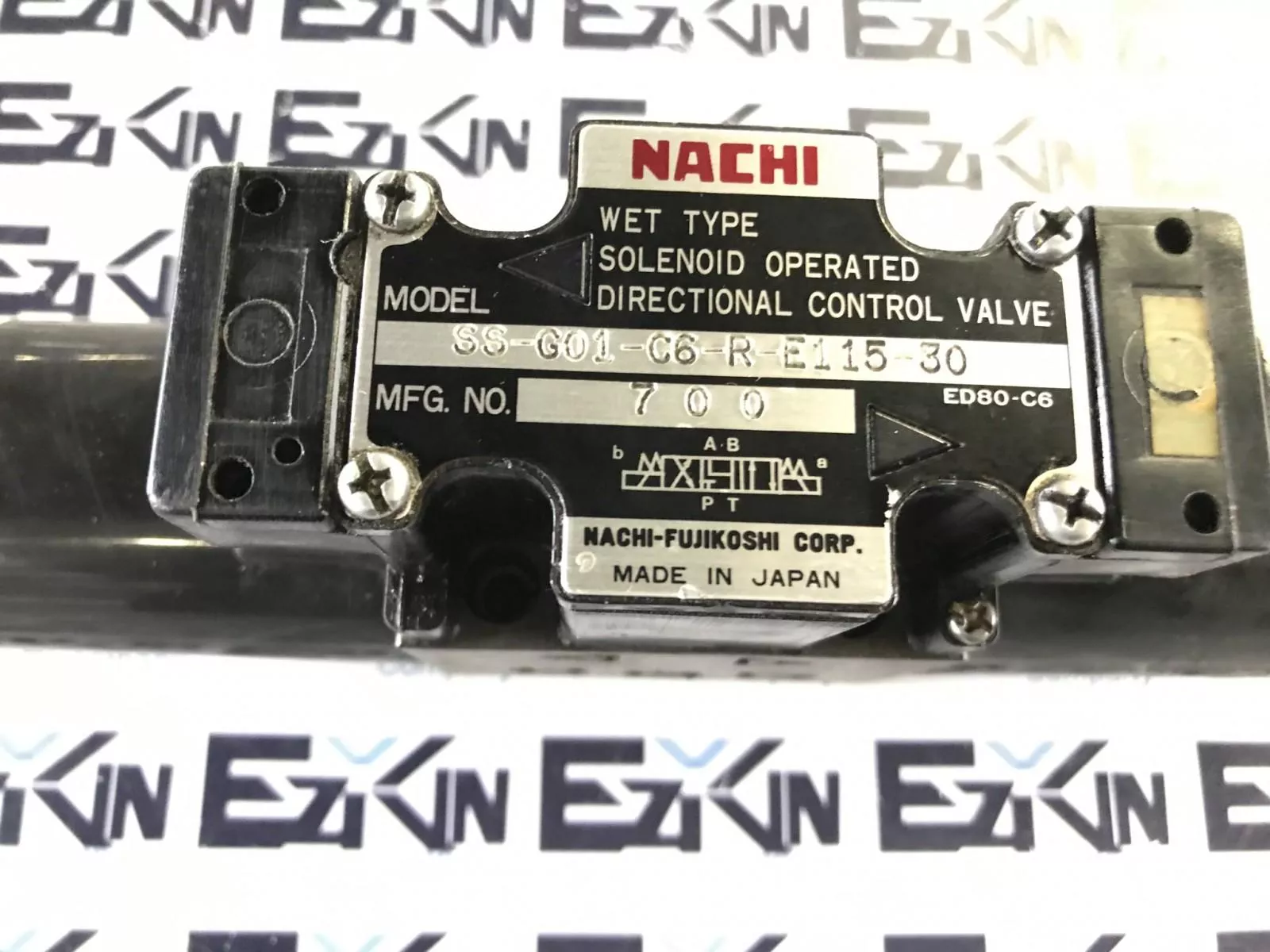

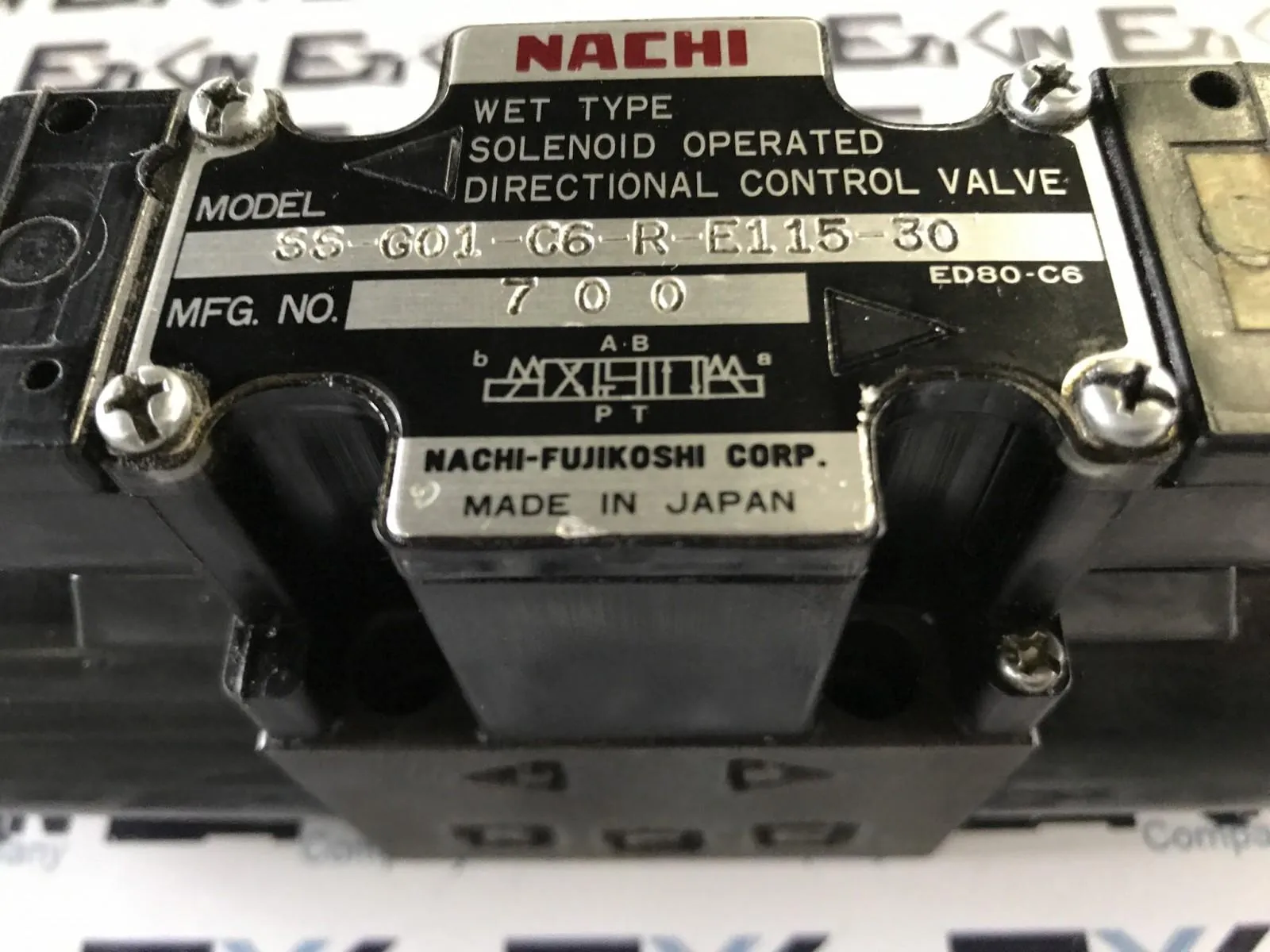

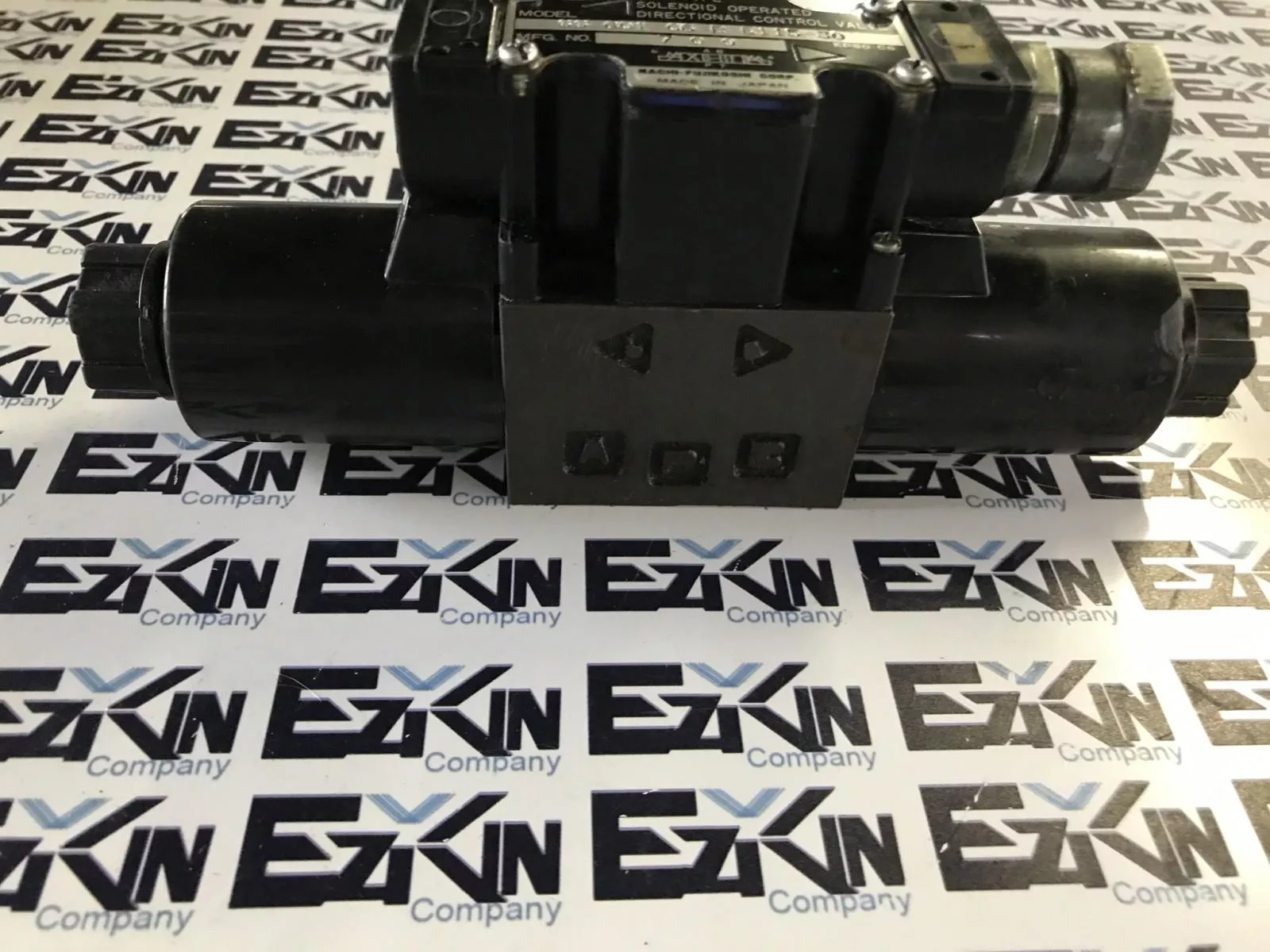

Nachi SS-G01-C6-R-E115-30 Solenoid Directional Control Valve

The Nachi SS-G01-C6-R-E115-30 is a high-pressure, solenoid-operated directional control valve designed for hydraulic systems. It features a 3-position, 4-way configuration with double solenoids and includes indicator lights and a terminal box for easy wiring. Suitable for applications requiring compact D03 interface and reliable flow control. Technical Specifications: Model: SS-G01-C6-R-E115-30 Valve Type: Solenoid-Operated Directional Control Valve Mounting Pattern: D03 (ISO 4401-03 / NFPA NG6) Spool Type: C6 (A & B open to T, P blocked in center) Function: 4-way, 3-position spring-centered Flow Capacity: 17.1 GPM (65 L/min) Maximum Operating Pressure: 5075 PSI (350 bar) Solenoid Type: Double solenoid Voltage: 115 VAC (rectified) Coil Features: Indicator lights Electrical Connection: Terminal box Seal Material: Buna-N (Nitrile) Mounting Bolts: 10-24 UNC Manual Override: Yes Application: Industrial hydraulic machinery and control systems

Condition: Used

Weight:   5.00

Depth:   6.00

Length:   12.00

Width:   9.00

SKU:   3806 4.S9.12.2
