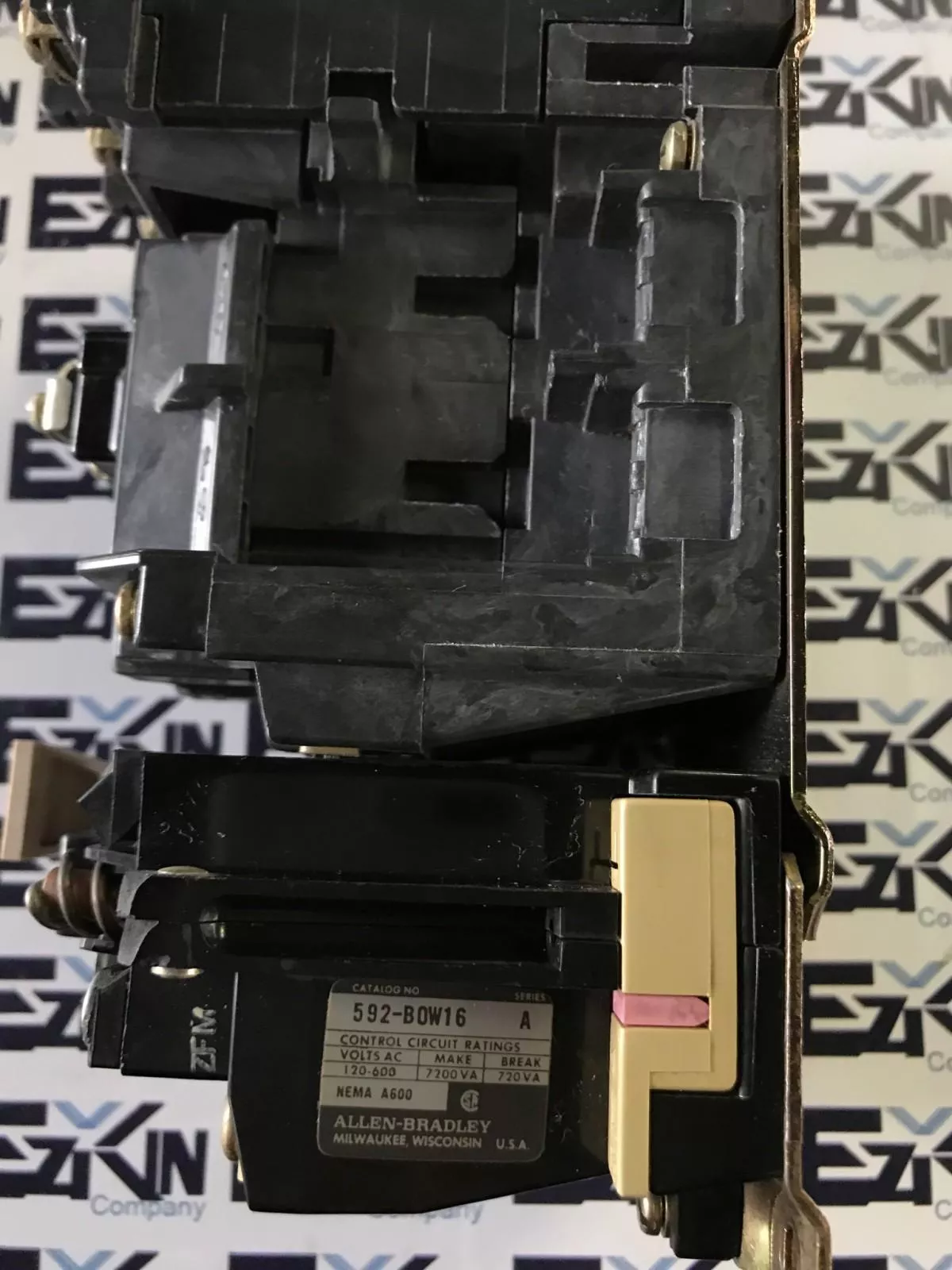

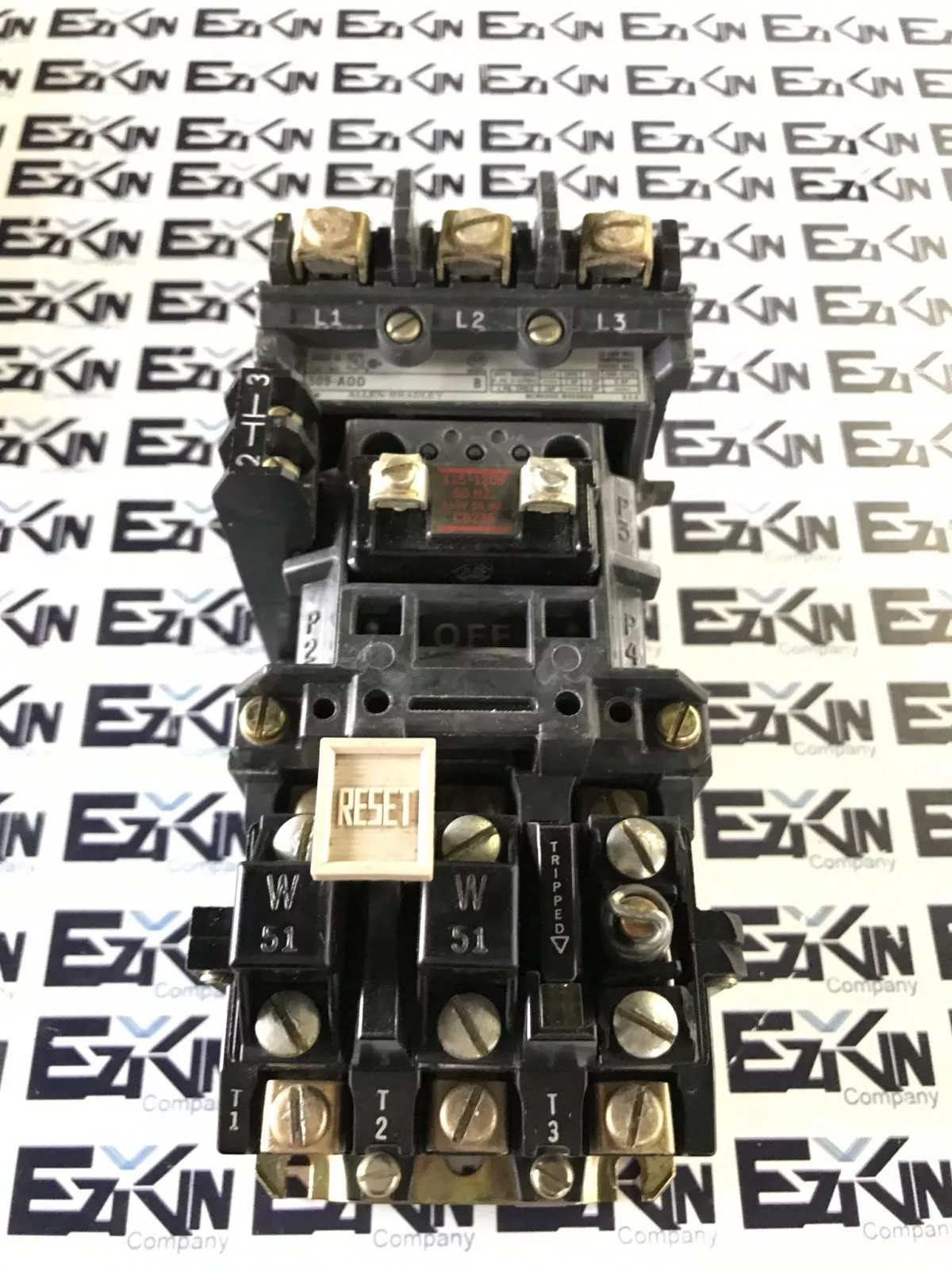

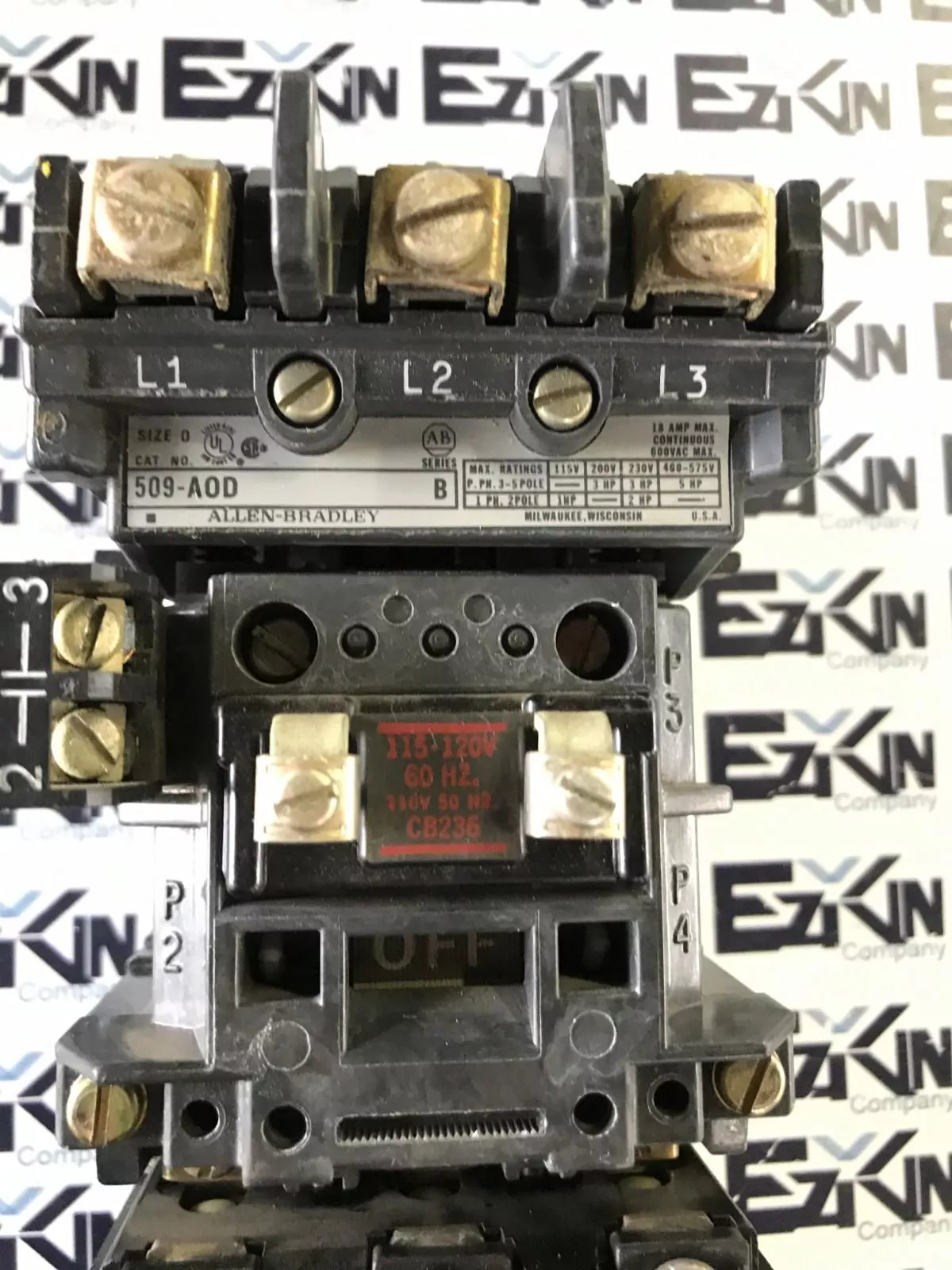

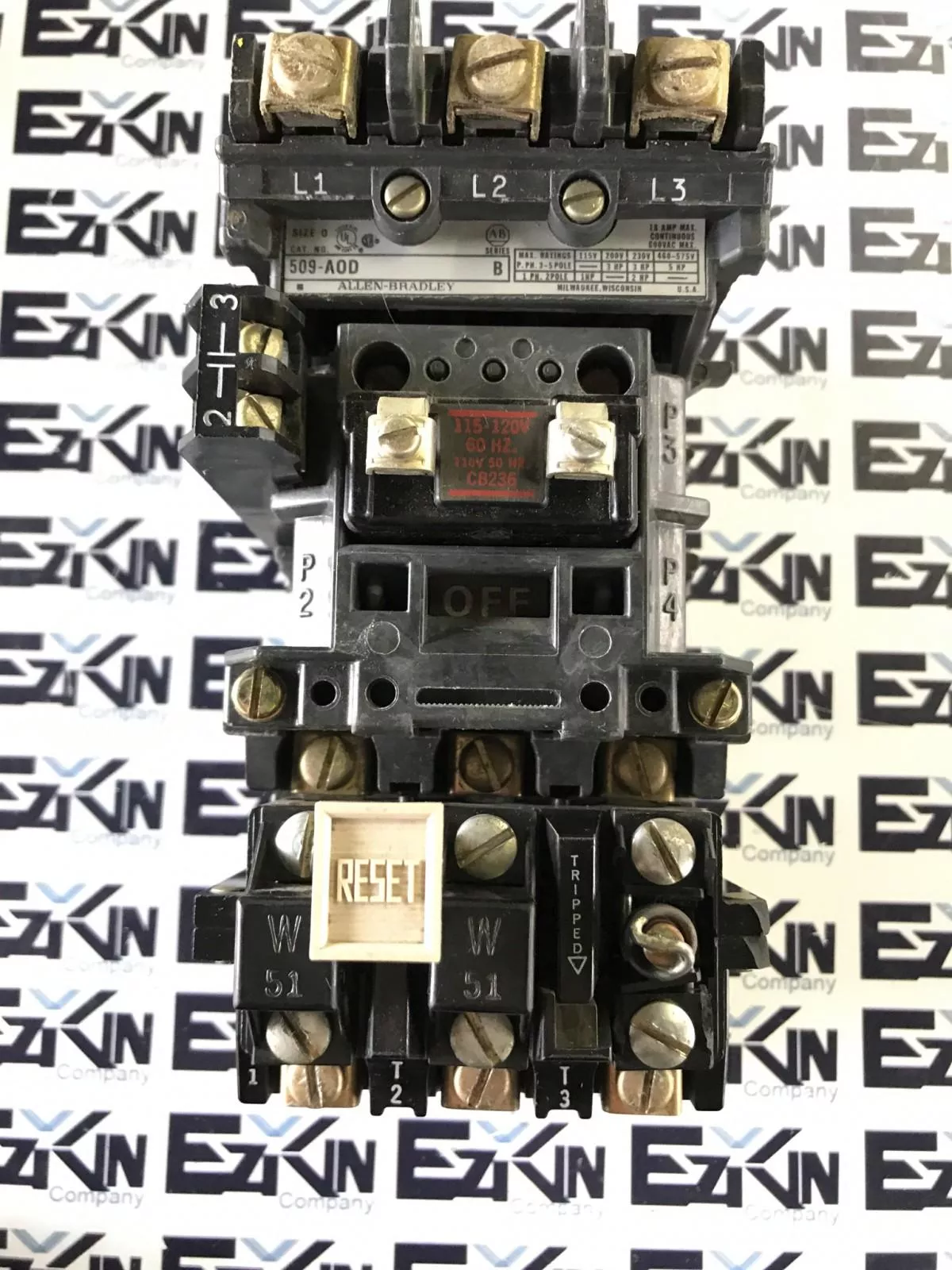

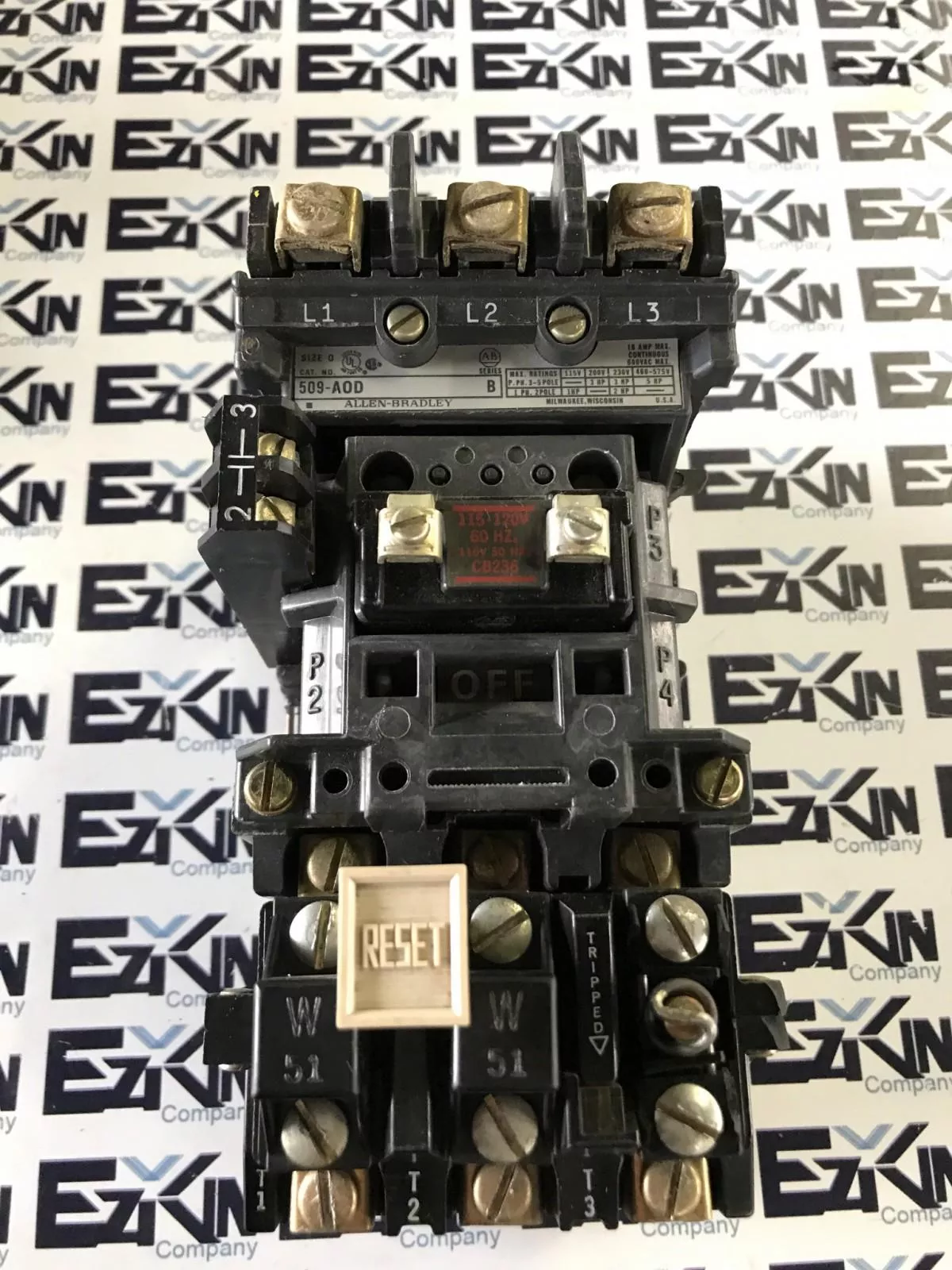

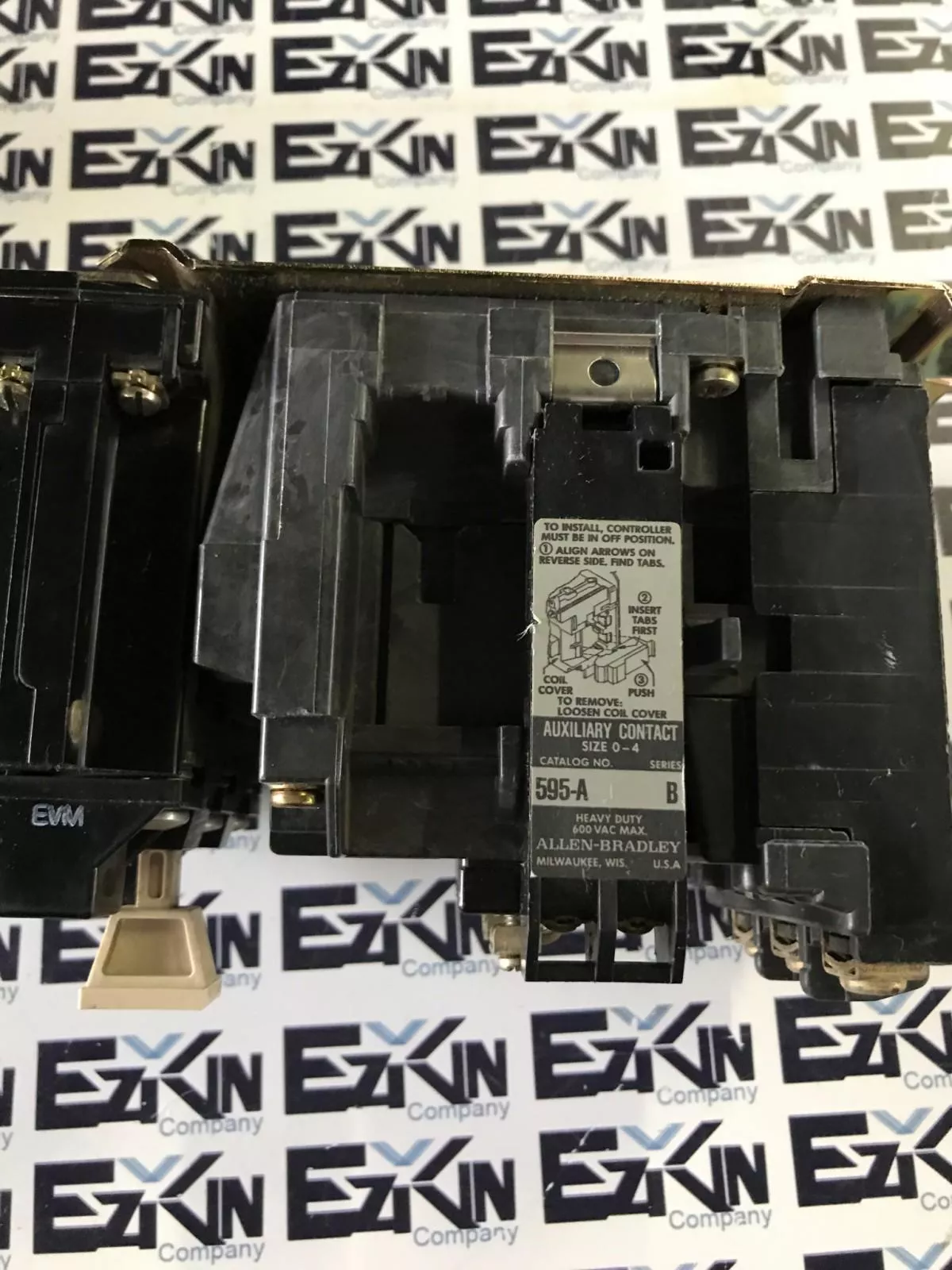

Allen-Bradley 509-A0D SER.B Motor Starter Size 0 W/592-B0W16 Overload Relay

The Allen-Bradley 509-A0D Series B is a NEMA Size 0 full-voltage non-reversing motor starter, equipped with a 592-B0W16 thermal overload relay. This combination is used for motor starting and overload protection in industrial control panels. Technical Specifications: Starter Model: 509-A0D SER.B Starter Type: Full Voltage Non-Reversing (FVNR) NEMA Size: 0 Rated Voltage: Up to 600 VAC Rated Current: 18 A max Coil Voltage: 120V AC Enclosure Type: Open style (no enclosure) Auxiliary Contacts: 1 NO + 1 NC (typical) Mounting: Panel mount Standards: UL, CSA, NEMA ICS compliance Overload Relay Model: 592-B0W16 Type: Thermal Overload Relay Current Adjustment Range: 1.6–2.4 A Reset Method: Manual and automatic Number of Poles: 3-pole motor protection Auxiliary Contacts: 1 NO + 1 NC Mounting: Direct mount to 509-A0D starter Trip Class: 10 Ambient Compensation: Yes Application: Motor overload protection for small AC motors

Condition: Used

Weight:   4.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   3807 4.S7.21.2
