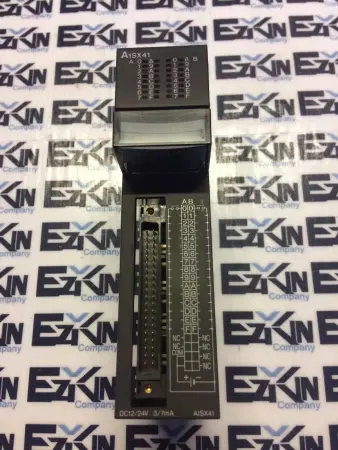

Mitsubishi Electric A1SX41 Input Unit Module 12-24VDC

The Mitsubishi A1SX41 is a digital input module for the MELSEC AnS series PLC systems. It is used to interface DC input signals into the PLC for control and monitoring purposes. Model: A1SX41 Series: MELSEC AnS Series Type: Input Unit Module Input Voltage: 12–24 VDC Number of Input Points: 32 points Input Type: Sink/source type (common selectable) Input Current: Approx. 7 mA per point Response Time: 10 ms or less Connector Type: Removable terminal block Mounting: Base rack mounted (AnS PLC rack) Isolation: Photocoupler isolation for each input Certifications: UL, CE, CSA Applications: Factory automation, sensor interfacing, control panel I/O expansion, and industrial monitoring systems Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.40

Depth:   4.00

Length:   10.00

Width:   8.00

SKU:   389 4.S9.14.4
