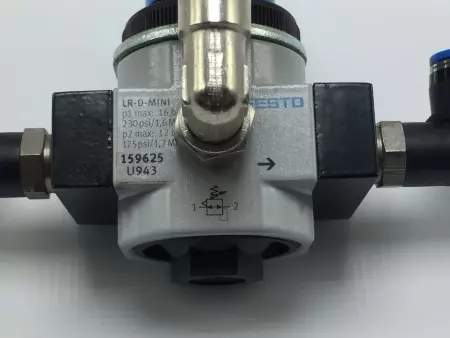

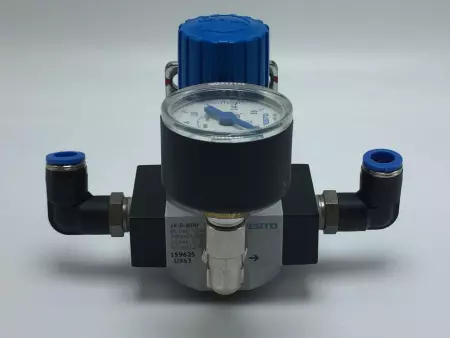

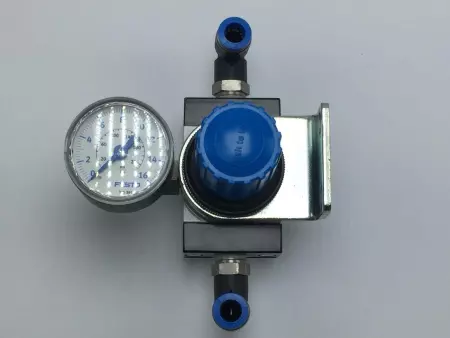

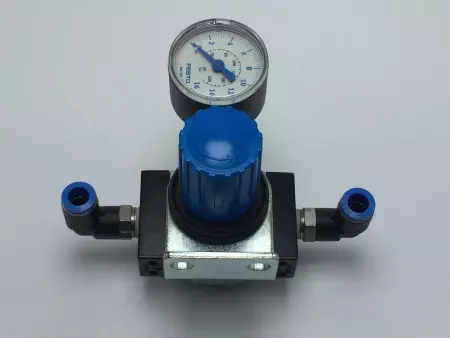

Compact diaphragm pressure regulator with integrated gauge and rotary knob lock. Designed for precise pressure control in pneumatic systems with high flow capacity. Technical Specifications Manufacturer: Festo Model: LR-D-MINI Part Number: 159625 Type: Pressure Regulator with Gauge Operating Pressure Range: 1 to 16 bar (14.5 to 232 psi) Standard Nominal Flow Rate: 1500 l/min Adjustment: Rotary knob with lock Regulation Type: Directly-controlled diaphragm Ports: G1/4 (Port 1 & 2) Gauge: Integrated analog pressure gauge Body Material: Aluminum with protective coating Knob Color: Blue Temperature Range: –10 °C to +60 °C (14 °F to 140 °F) Mounting: Inline or panel mount Application: Pneumatic circuits in automation systems Country of Manufacture: Germany
Condition: Used
Weight: 3.00
Depth: 6.00
Length: 6.00
Width: 6.00
SKU: 40257 4.S6.7.2
