Omron C200H-0C224 Output Unit 250 VAC 24VDC 2Amp

This is a relay output module for the Omron C200H PLC series, designed for switching AC and DC loads. It features 16 relay output points and is used for general-purpose industrial control applications.

Output Type: Relay (Form C)
Number of Output Points: 16 Points
Rated Load Voltage: 250 VAC / 24 VDC
Rated Load Current: 2 A per point, 16 A per unit
Contact Type: SPST-NO (Form A)
Output Delay Time: Approx. 10 ms (ON), 10 ms (OFF)
Isolation: Photo-coupler isolation per point

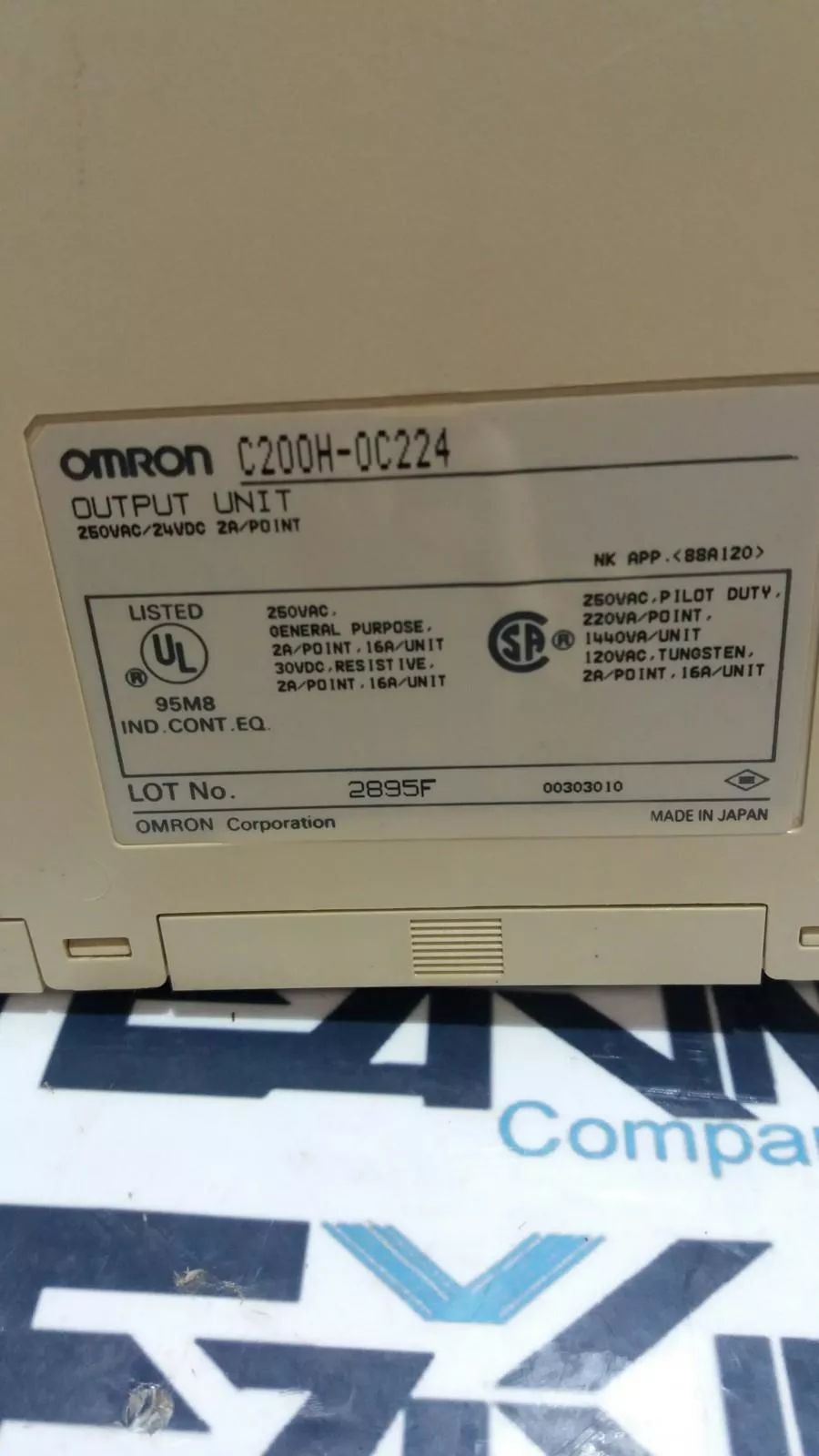

Pilot Duty Rating: 250VAC, 220VA/point, 1440VA/unit
Tungsten Load Rating: 120VAC, 2A/point, 16A/unit
UL Listed: IND.CONT.EQ. (95M8)
Mounting: Rack-mounted in C200H PLC rack
Manufacturer: Omron Corporation
Origin: Made in Japan Please review pictures carefully and let us know if you have any questions!
