Elwood 1326AS-B440G-21 AC Servo Motor, 2.6HP

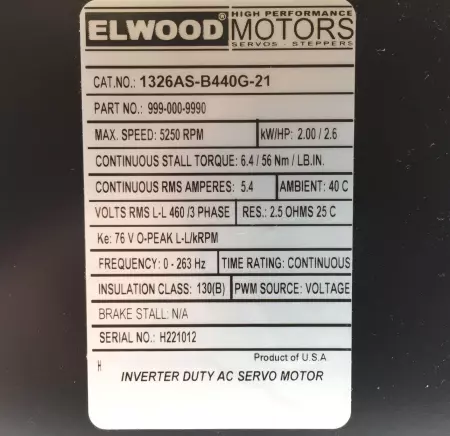

High-performance inverter-duty AC servo motor engineered for precision motion control in industrial automation systems, capable of operating over a wide frequency range. Catalog No: 1326AS-B440G-21 Part No: 999-000-9990 Power Rating: 2.00 kW / 2.6 HP Maximum Speed: 5250 RPM Continuous Stall Torque: 6.4 Nm / 56 lb-in Continuous RMS Amperes: 5.4 A Voltage: 460 V RMS L-L, 3 Phase Resistance: 2.5 Ohms @ 25°C Back EMF Constant (Ke): 76 V O-peak L-L/kRPM Frequency Range: 0–263 Hz Time Rating: Continuous Insulation Class: 130(B) PWM Source: Voltage Ambient Temperature: 40°C Brake Stall: N/A Serial No: H221012 Product Type: Inverter Duty AC Servo Motor Origin: Made in U.S.A.

Condition: New

Weight:   27.00

Depth:   12.00

Length:   18.00

Width:   10.00

SKU:   40815 4.S4.5.1
