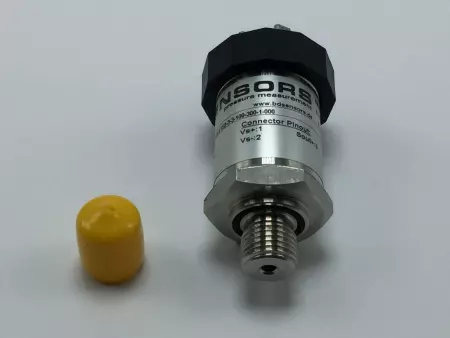

BD Sensors DMP-331 Pressure Transmitter Code: 110-V152-3-3-100-300-1 14-36VDC

New in Mfg Packaging Robust industrial pressure transmitter designed for reliable and precise measurement of liquids and gases. The BD Sensors DMP-331, with configuration code 110-V152-3-3-100-300-1, is well-suited for hydraulic, pneumatic, and process control applications requiring durability and high accuracy. Technical Specifications: Manufacturer: BD Sensors Model: DMP-331 Product Code: 110-V152-3-3-100-300-1 Sensor Type: Pressure transmitter Pressure Range: -1-1.5 bar (gauge) Overpressure Limit: 300 bar Output Signal: 4–20 mA (2-wire loop-powered) Supply Voltage: 14–36 VDC Accuracy: ±0.35% of span (standard; optional ±0.25% or better) Process Connection: G1/2" DIN 3852-E (V152 = G1/2 male with sealing edge) Electrical Connection: DIN EN 175301-803-A connector (standard) Wetted Materials: • Pressure port: Stainless steel 1.4571 (316Ti) • Sensor diaphragm: Stainless steel 1.4435 (316L) Media Compatibility: Liquids and gases compatible with stainless steel Temperature Range: • Medium: –40 °C to +125 °C • Ambient: –25 °C to +85 °C Protection Class: IP65 (standard with connector), up to IP67 with cable version Response Time: <1 ms Long-Term Stability: <0.2% of span/year Application: Hydraulics, process control, mechanical engineering, refrigeration, pneumatics, and water systems

Condition: New

Weight:   3.00

Depth:   5.00

Length:   5.00

Width:   5.00

SKU:   40909 4.S1.15.6
