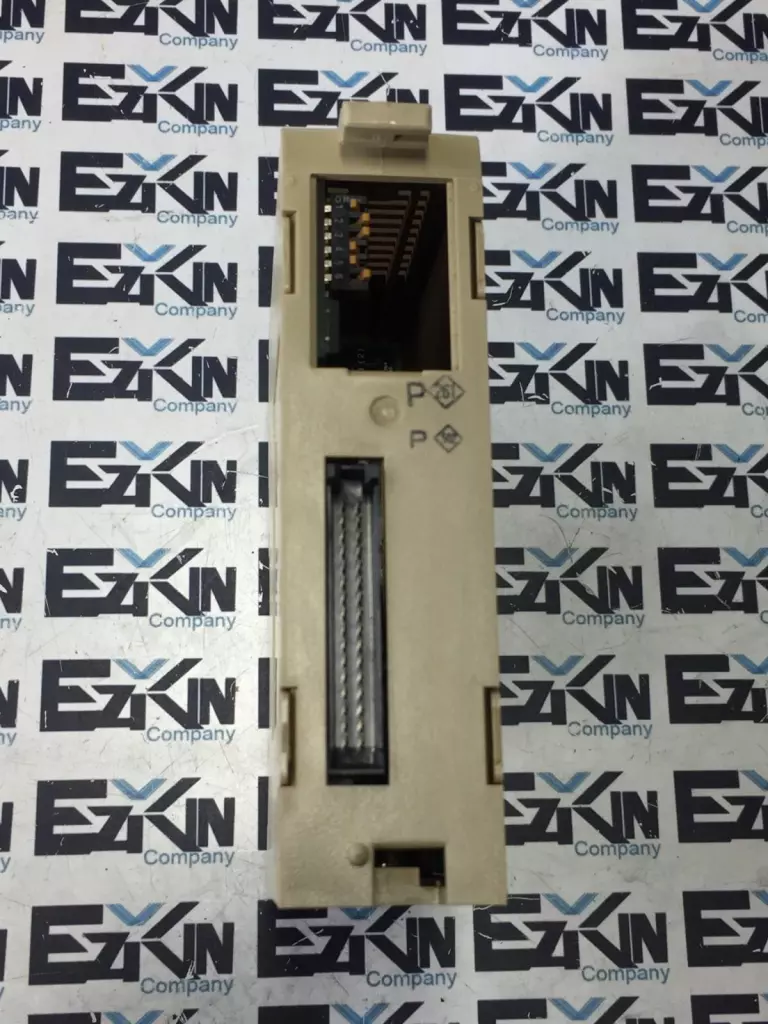

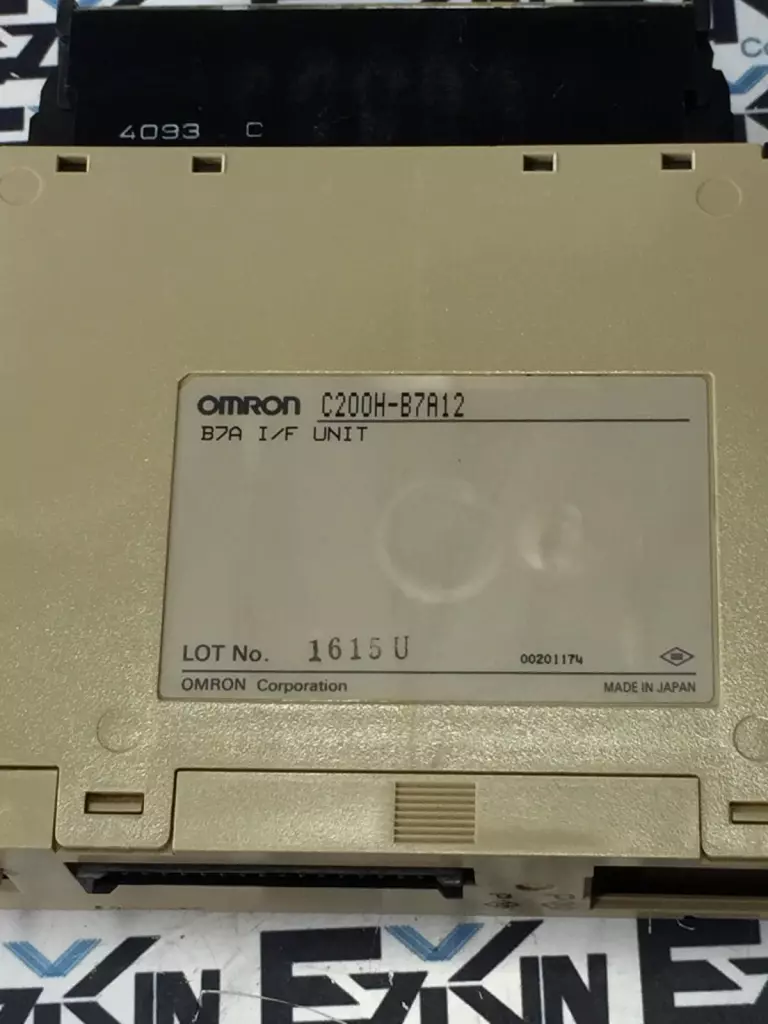

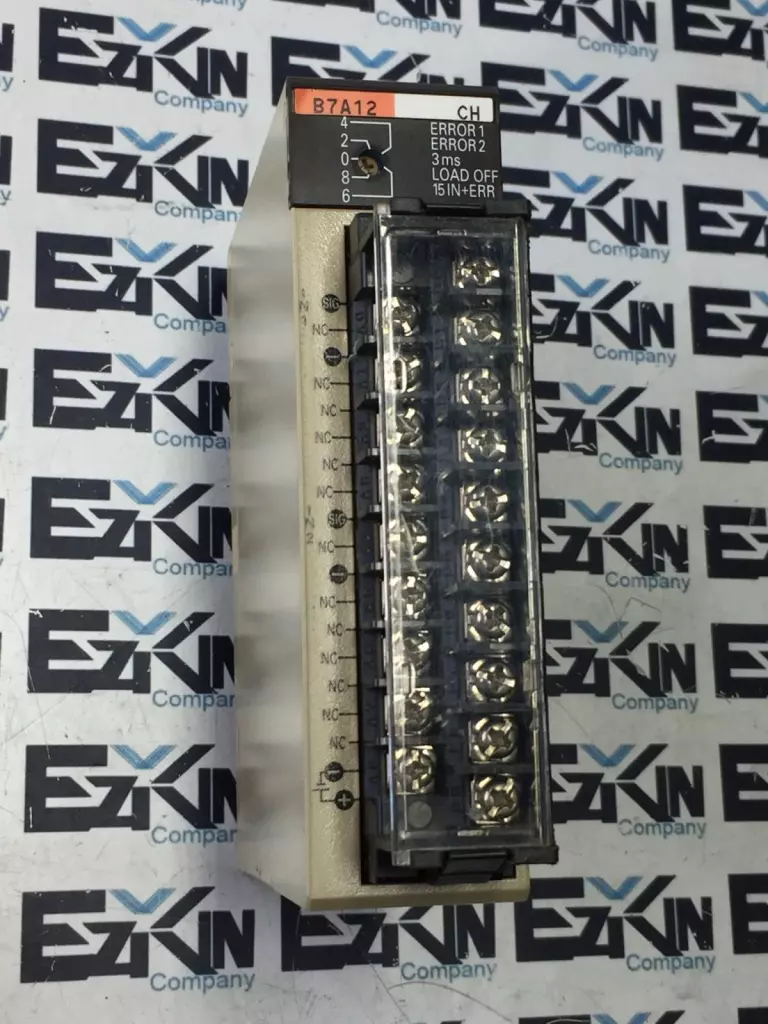

Omron C200H-B7A12 Remote Interface Module

The C200H-B7A12 is a remote output interface module used in SYSMAC C200H PLC systems, part of the Group-2 I/O architecture. It transmits digital output signals over long distances using a parallel interface method.

Series: SYSMAC C200H
Model: C200H-B7A12
Unit Type: Remote I/O Interface Module
I/O Type: Digital Output
Number of Output Points: 32 Points
Transmission Type: Parallel I/O interface
Communication Speed (Selectable): High-speed (3 ms) or Long-distance (19.2 ms)
Distance Range: Up to 100 meters depending on speed setting
Signal Type: Transistor output (open collector)
Output Voltage: Typically 12–24 VDC (depending on connected B7A units)
Output Current: Determined by external interface unit specs
Connector Type: MIL-style 40-pin connector
Mounting: Rack-mounted in C200H PLC backplane
Power Supply: Supplied from PLC rack
LED Indicators: Yes – Per output point
Manufacturer: Omron Corporation
Country of Origin: Japan Please review pictures carefully and let us know if you have any questions!
