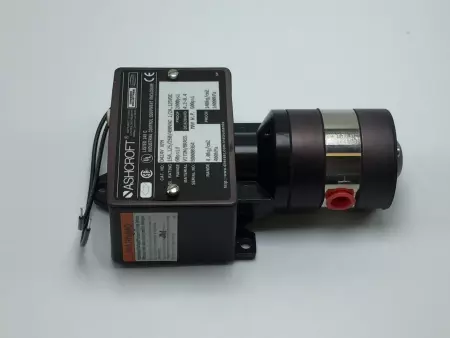

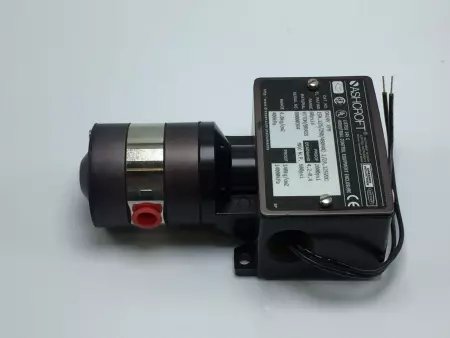

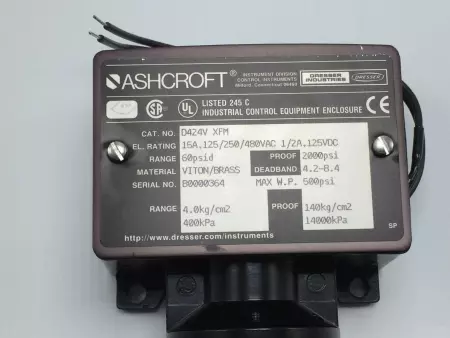

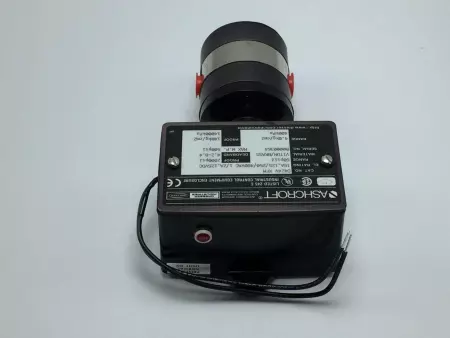

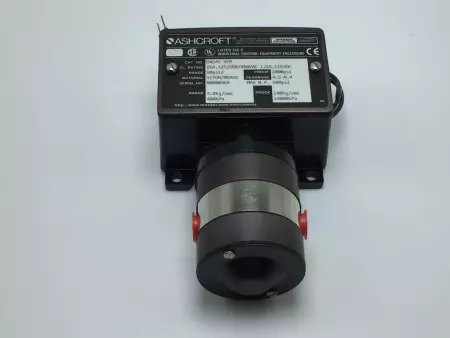

Ashcroft D424VXFM60PSID Differential Pressure Switch

Model: Ashcroft D424VXFM60PSID Type: Differential Pressure Switch Enclosure: NEMA 4X watertight (Type 400) Setpoint Range: Adjustable from 15% to 100% of range Deadband: Fixed or limited adjustable Diaphragm Material: Viton® Static Pressure Limit: 500 psi Pressure Connection: 1/4 inch NPT Electrical Rating: 15A at 125/250/480 VAC; 1/2A at 125 VDC Electrical Termination: 1/4 inch NPT female Setpoint Repeatability: ±1% of span Ambient Temperature Range: -20°F to 150°F (-29°C to 65°C) Certifications: FM, UL, CE, CRN approved; SIL 3 capable Applications: Suitable for differential pressure control, shutdown, or alarm operations in industries such as offshore oil rigs, chemical and petrochemical plants, pulp and paper mills, power plants, steel mills, and water and sewage treatment facilities

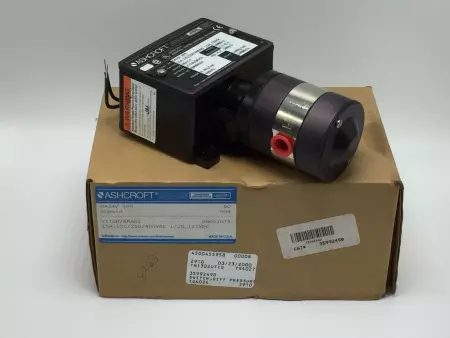

Condition: New – Open box

Weight:   6.00

Depth:   5.00

Length:   9.00

Width:   6.00

SKU:   41017 4.S4.13.5
