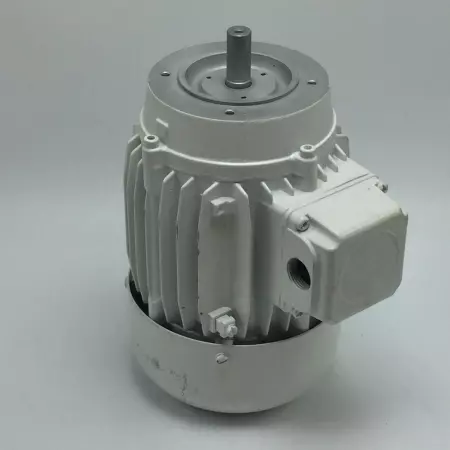

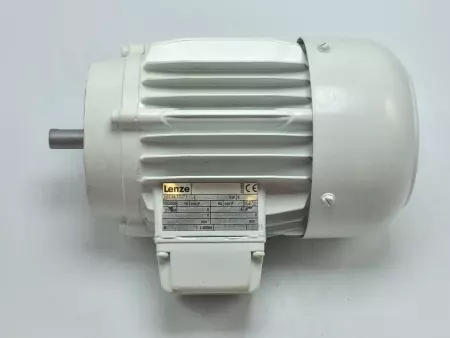

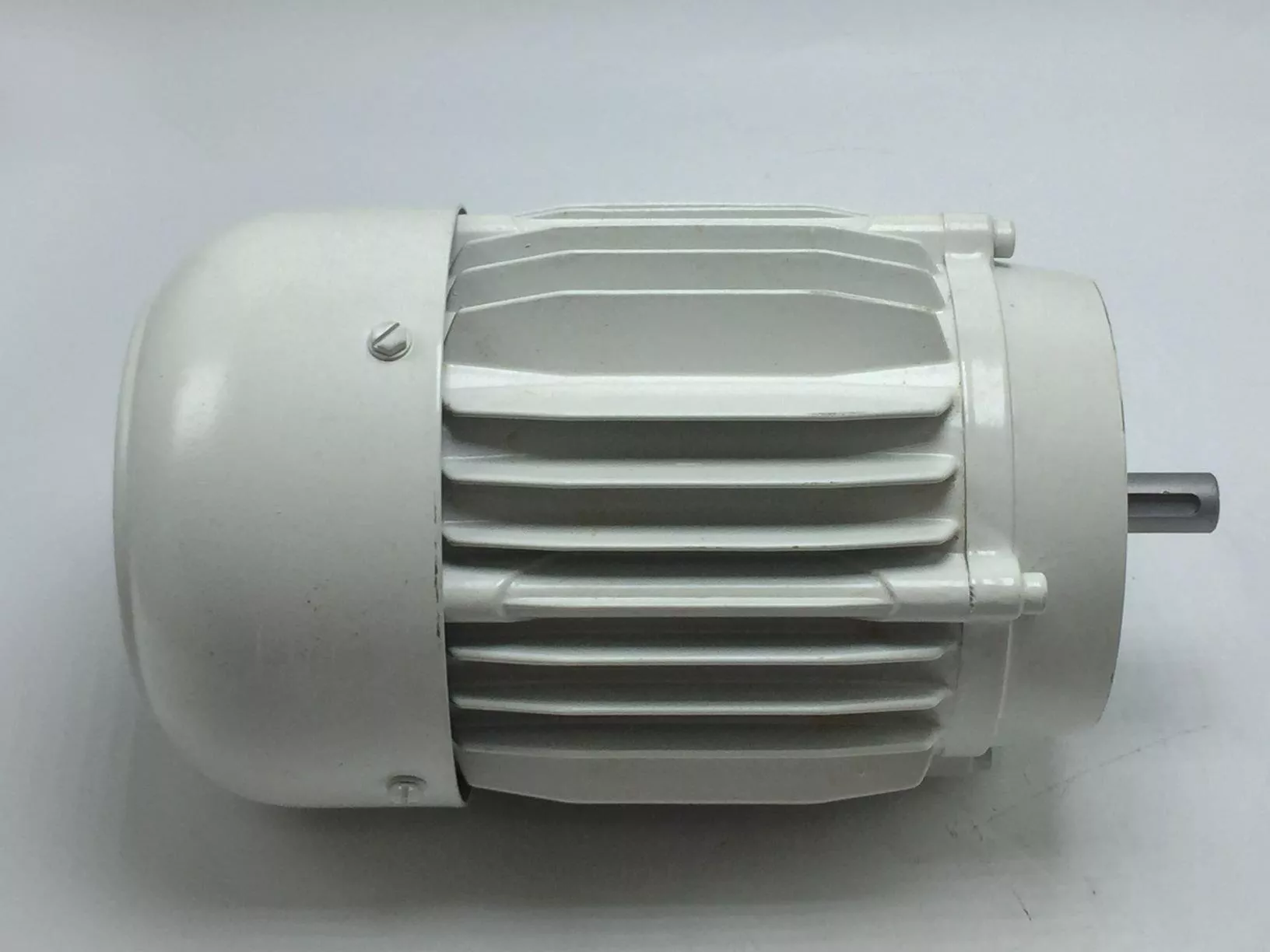

Lenze MDERAXX071-32 AC Motor 0.37kW

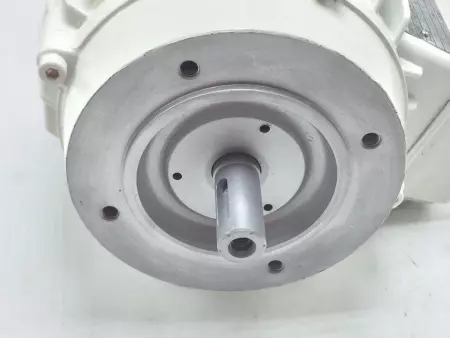

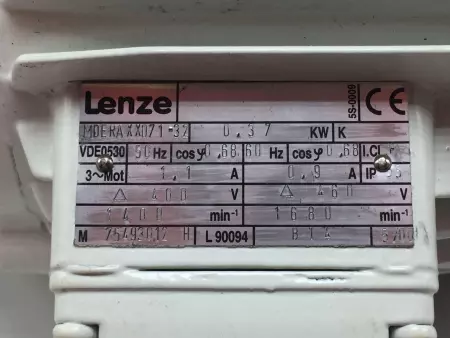

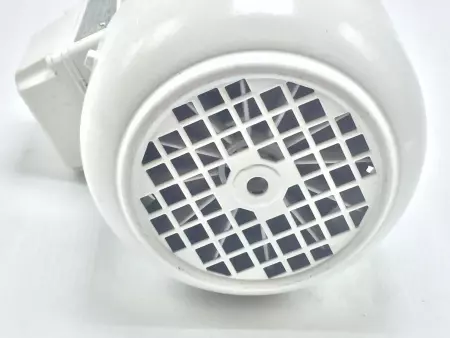

The Lenze MDERAXX071-32 is a three-phase asynchronous AC motor, designed for industrial automation and drive systems. It belongs to Lenze’s M-series motors, known for their efficiency, reliability, and modular construction. The motor is suitable for applications requiring compact size, precise control, and long operating life. Technical Specifications: • Motor Type: AC Asynchronous (Induction) • Model: MDERAXX071-32 • Rated Power: 0.37 kW (0.5 HP) • Voltage: 400/460 V (Δ connection) • Frequency Range: 50/60 Hz • Speed: ~1680 rpm • Frame Size: 71 (IEC standard) • Mounting: B3 (foot mounted) or B5/B14 optional • Enclosure: IP55 (Totally Enclosed Fan Cooled - TEFC) • Cooling Method: IC411 • Insulation Class: F • Temperature Rise Class: B • Ambient Temperature Range: -20 °C to +40 °C • Altitude: Up to 1000 m above sea level without derating • Duty Cycle: S1 (continuous) • Efficiency Class: IE2 or IE1 depending on variant • Service Factor (SF): 1.0 • Amperage: ~1.25 A (at 400 V, full load) • Weight: Approx. 7.5 – 8.5 kg (depending on mounting and options) • Shaft Diameter: 14 mm (standard for frame size 71) and 30 mm length • Thermal Protection: PTC thermistor optional • Bearings: Deep groove ball bearings, lifetime lubricated

Condition: New – Open box

Weight:   20.00

Depth:   16.00

Length:   16.00

Width:   16.00

SKU:   41457 4.R1.6.1
