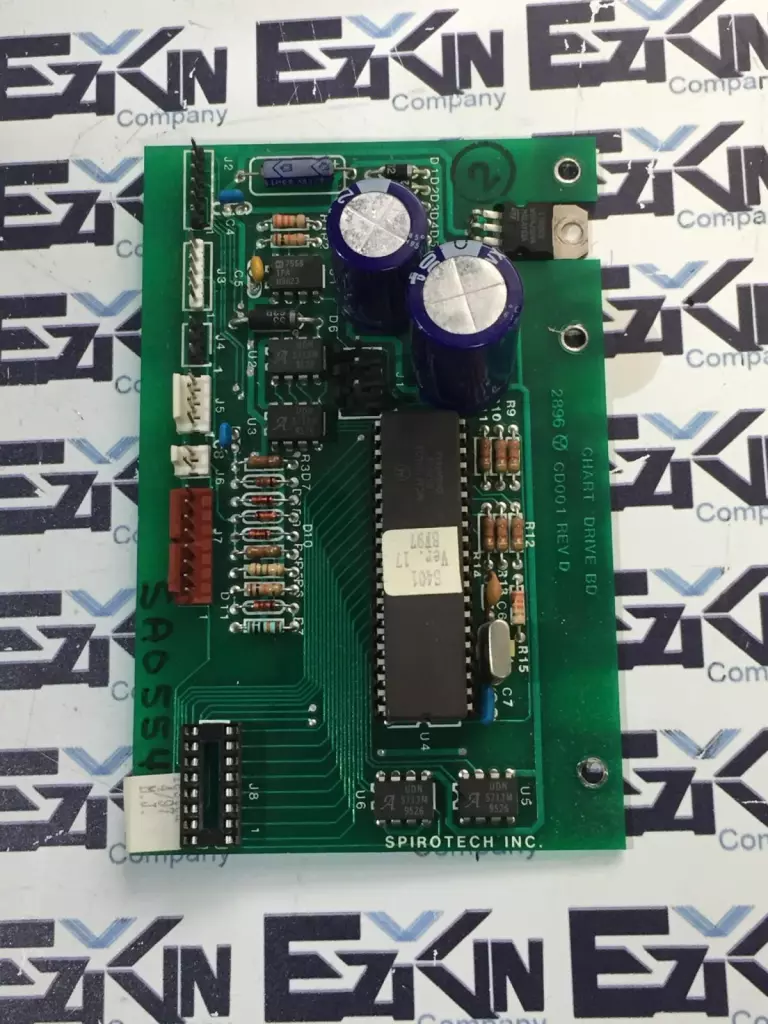

Spirotech 2896 CD001 REV.D Chart Drive Circuit Board

The Spirotech 2896 CD001 REV.D is a chart drive circuit board used in chart recorder systems. It controls the motorized movement of the chart paper and synchronizes with the sensing elements to create accurate time-based recordings, typically in gas detection or environmental monitoring equipment. Model: 2896 CD001 Revision: REV.D Board Type: Chart Drive Circuit Board Function: Controls chart motor timing, speed, and paper advancement Application: Used in chart recorders for time-based graphing of sensor data (e.g., gas concentration, temperature) Drive Mechanism: Supports synchronous or stepper motor drive (depending on hardware configuration) Power Requirements: Typically 12–24 VDC (verify onboard voltage regulators) Interface: Connects to main control board and motor assembly Components: Likely includes motor driver ICs, capacitors, timing circuits, connectors, and possible opto-isolation Indicators: May include onboard status LEDs Mounting: Internal board mount with standoffs or fixed slots Use Case: Spirotech safety monitoring systems requiring physical recording (e.g., gas log events or alarm trends) Manufacturer: Spirotech / Graseby-Andersen (legacy product line) Country of Origin: Likely UK Please review pictures carefully and let us know if you have any questions!
