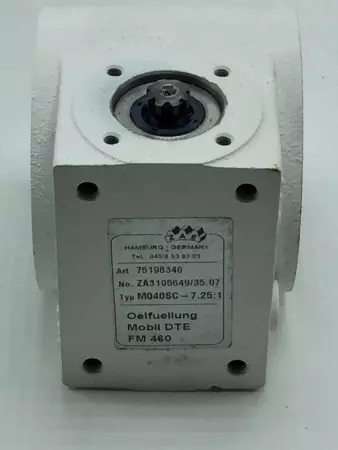

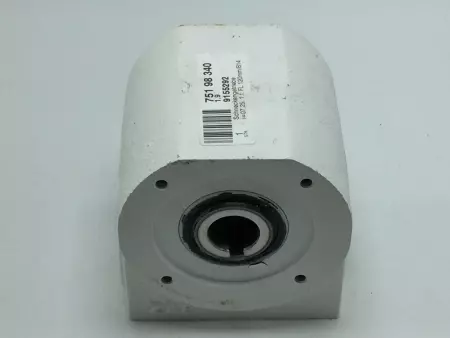

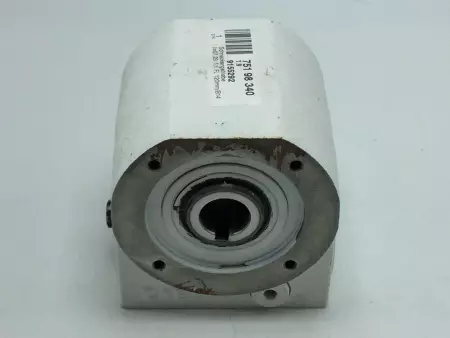

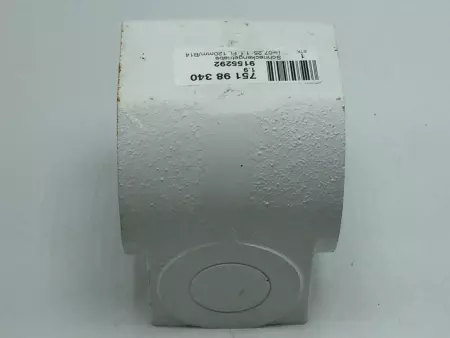

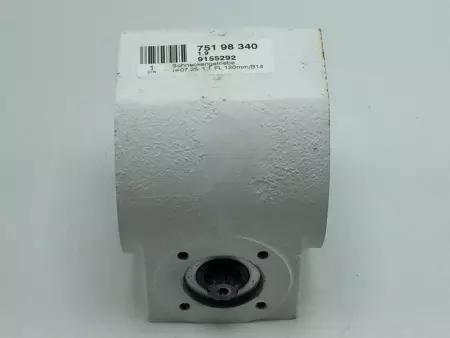

ZAE 75198340 Gearbox Ratio 7.25:1 Type M040SC ZA3105649/35.07

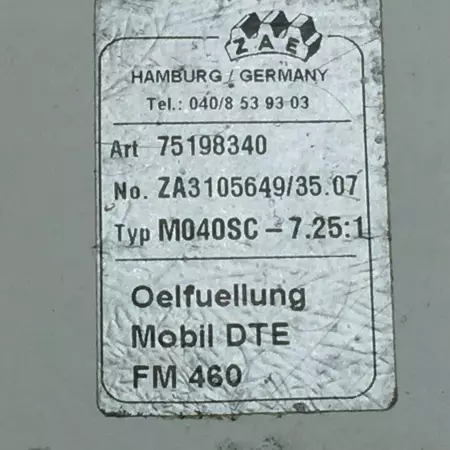

The ZAE 75198340 is a compact worm gear reducer from ZAE Antriebssysteme, designed for reliable power transmission in industrial machinery. This unit features a 7.25:1 gear reduction ratio and belongs to the M040SC series, known for its compact build and high torque density. The suffix ZA3105649/35.07 identifies the specific internal configuration or customer build. Technical Specifications Part Number: 75198340 Gear Type: Worm gear reducer Series: M040SC (compact worm gearbox) Gear Ratio: 7.25:1 Reference Code: ZA3105649/35.07 (internal build or customer-specific configuration) Mechanical Features Mounting Type: – Foot or flange mount (SC variant indicates standard compact housing) – Mounting positions configurable (left, right, top, bottom) Input: – IEC motor flange (B5 or B14 style) – Compatible with servo or standard AC motors Output Shaft: – Hollow shaft 22 mm Diameter – Keyed shaft standard; optional shrink disc available Housing Material: High-grade cast iron (robust and vibration-resistant) Gearing: – Worm shaft: Hardened and ground steel – Worm wheel: High-strength bronze Lubrication: – Factory-filled with long-life synthetic oil – Maintenance-free under normal operation Sealing: Double-lip radial shaft seals, splash-proof Performance Gear Ratio: 7.25:1 Torque Output: Estimated 50–90 Nm (depending on input speed and duty cycle) Input Speed Range: Up to 1500–3000 RPM Efficiency: ~70–85% (typical for worm gear drives, ratio dependent) Duty Rating: S1 (continuous industrial operation) Noise Level: Low, suitable for quiet environments

Condition: New

Weight:   14.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   41764 4.S2.9.2
