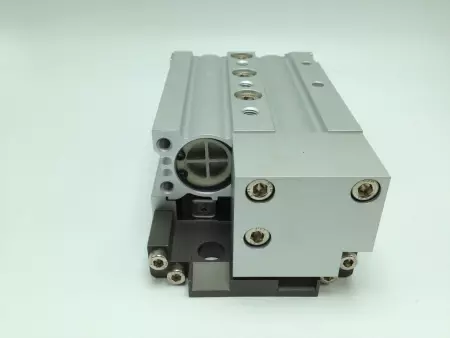

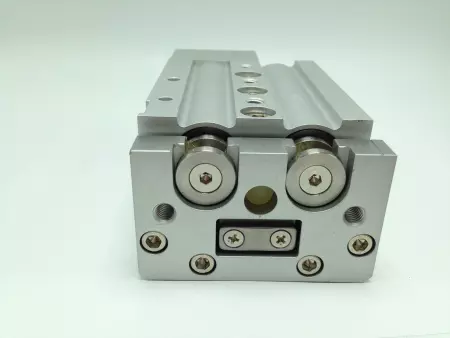

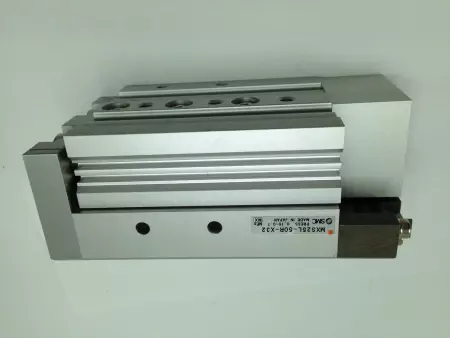

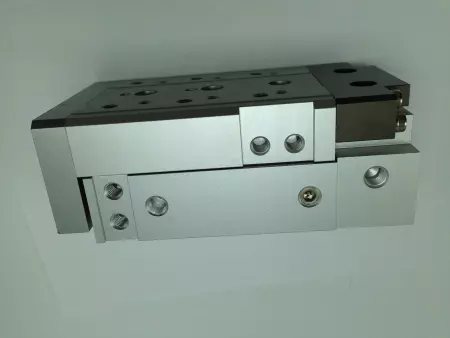

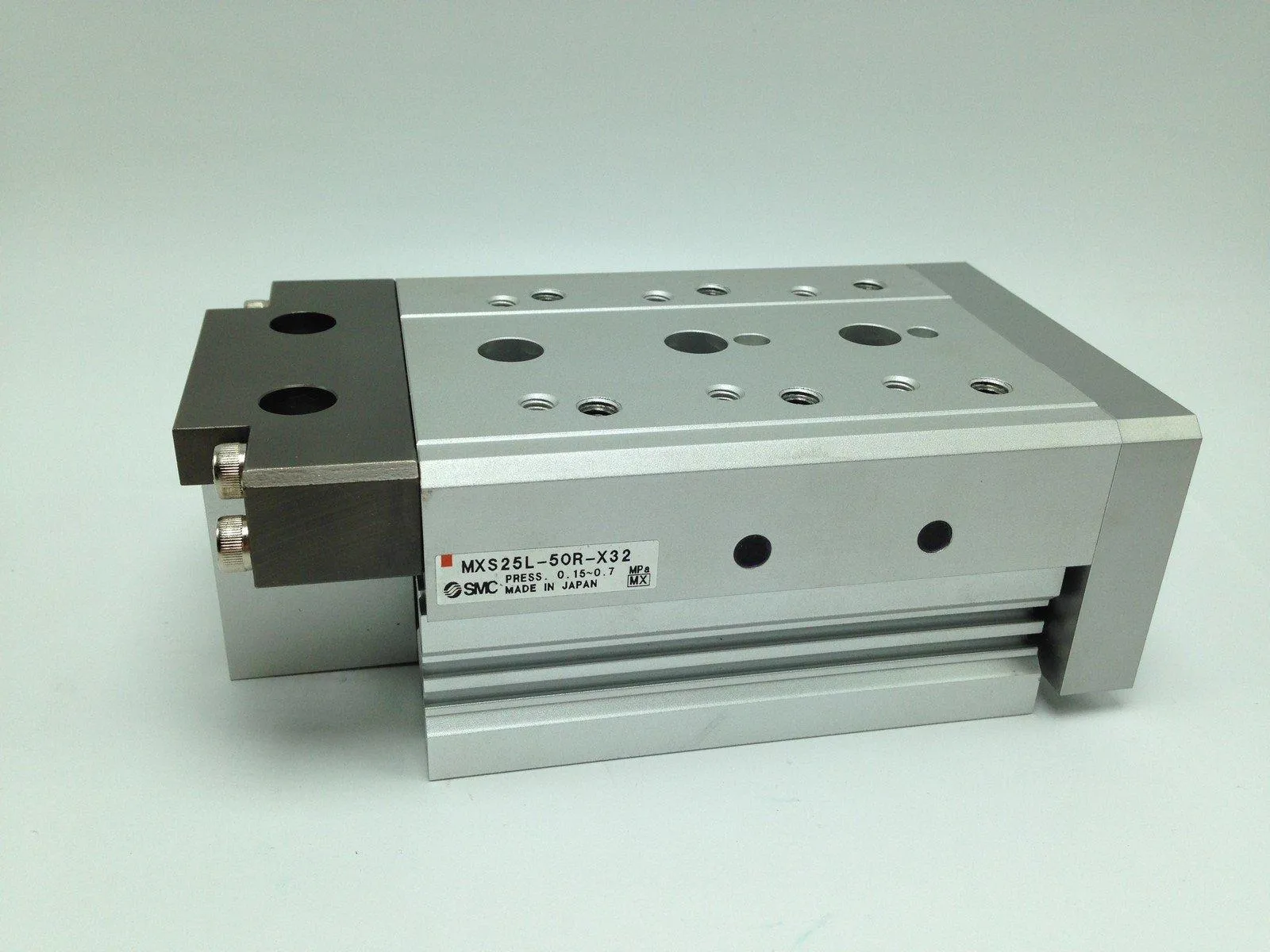

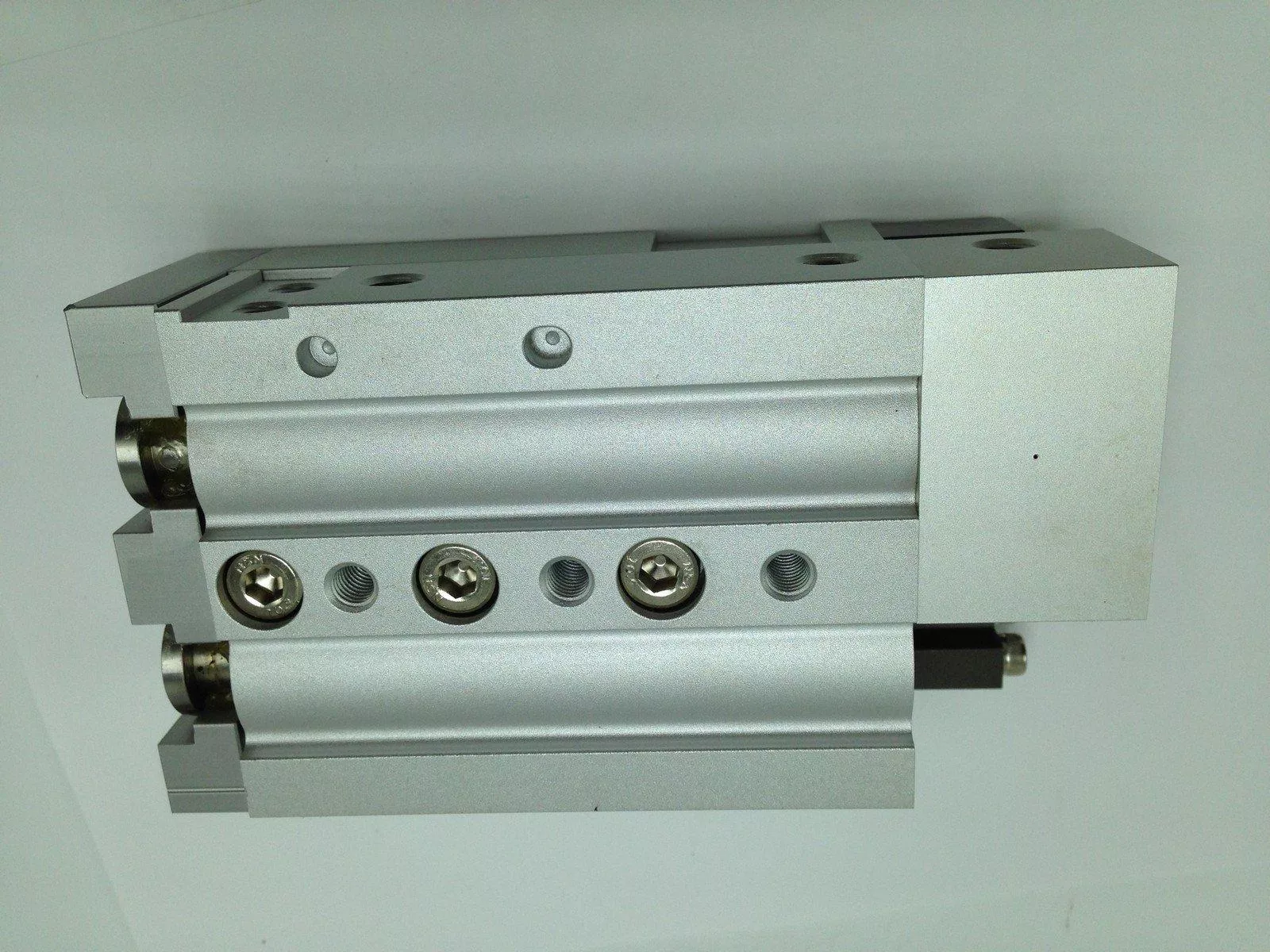

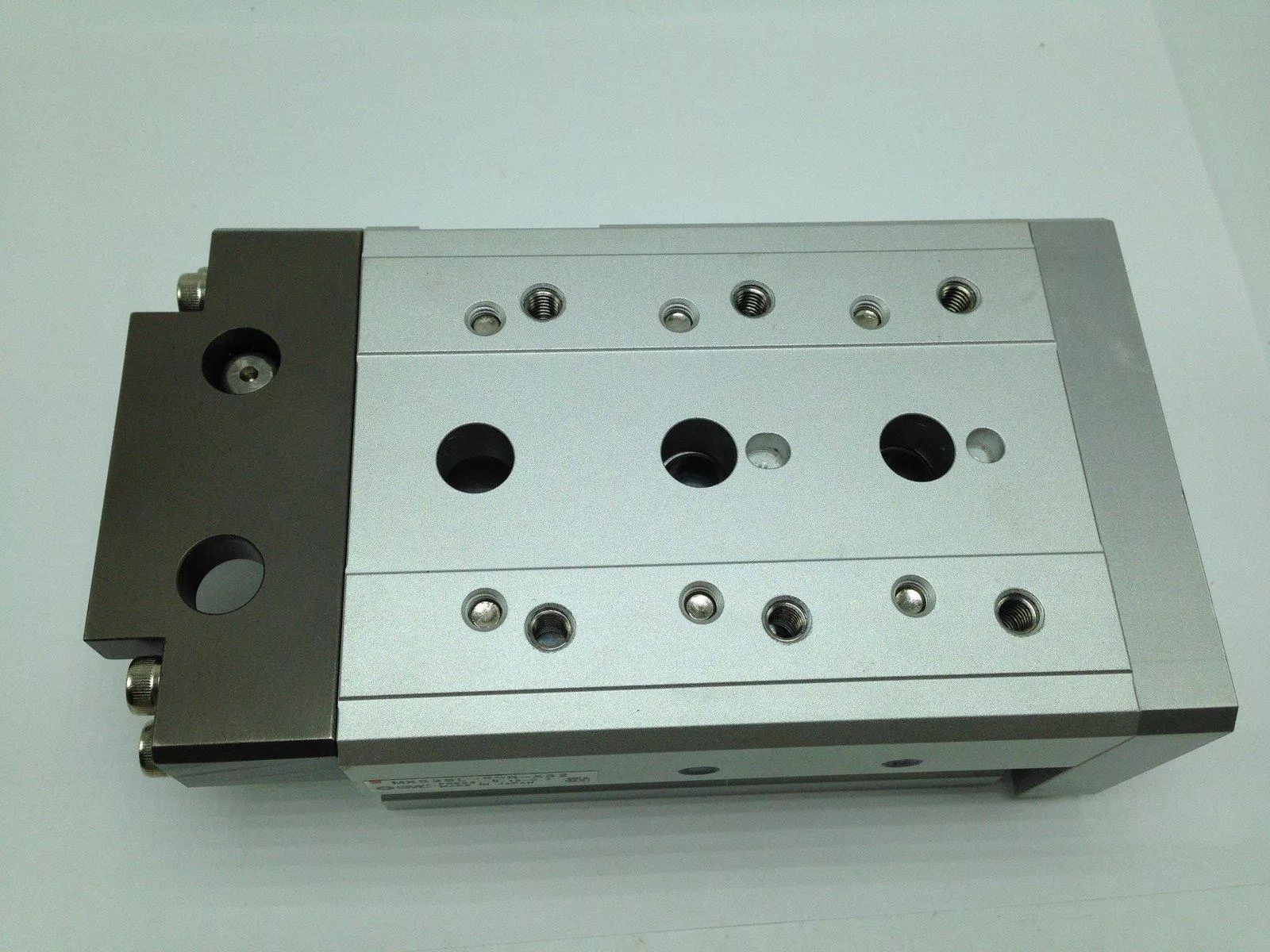

SMC MXS25L-50R-X32 Air Slide Table Pressure, 25mm Bore 50mm Stroke

The SMC MXS25L-50R-X32 is a precision air slide table actuator that combines a guided cylinder and table for highly accurate linear motion. It features dual rod construction with a precision linear guide, offering high rigidity and parallelism. This model is ideal for pick-and-place systems, inspection stations, and small part transfer applications. Model: MXS25L-50R-X32 Series: MXS Bore Size: 25 mm Stroke Length: 50 mm Body Style: "L" indicates long stroke body (enhanced rigidity) Port Location: "R" indicates right-side porting Option Code: X32 denotes improved dust resistance or custom spec (consult SMC for details) Guide Type: Precision linear ball bearing guide Mounting: Through-hole and tapped mounting options on body and table Repeatability: ±0.01 mm Operating Pressure Range: 0.15 to 0.7 MPa (approx. 21 to 101 psi) Max. Operating Pressure: 0.7 MPa (101.5 psi) Minimum Operating Pressure: 0.15 MPa (21.8 psi) Ambient and Fluid Temperature: 0°C to 60°C (no freezing) Lubrication: Not required (lubed for life) Cushion Type: Rubber stoppers or external shock absorbers (depending on configuration) Application: Semiconductor handling, electronics assembly, precision transport systems Country of Origin: Japan

Condition: New

Weight:   8.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   41809 4.S2.10.3
