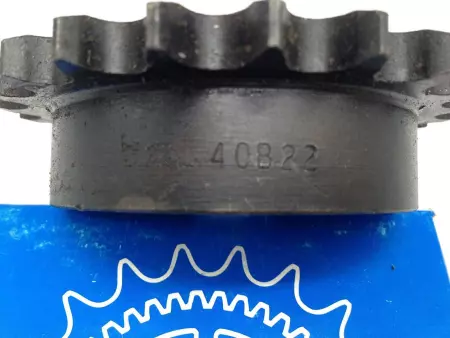

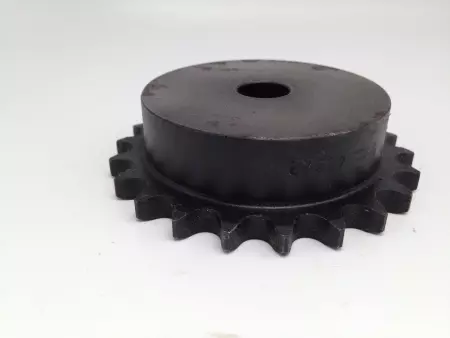

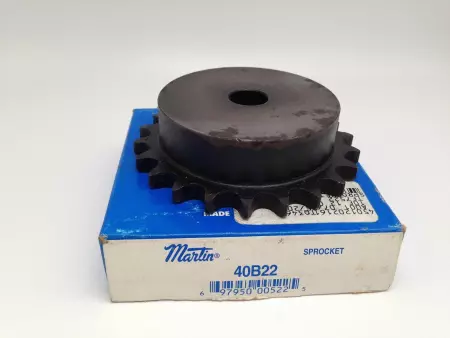

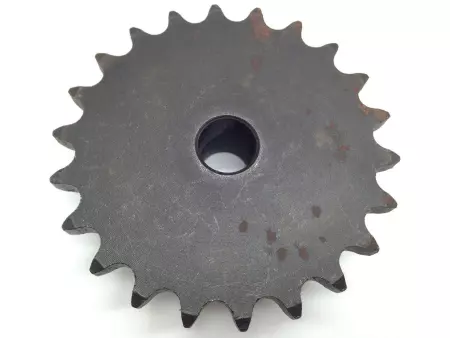

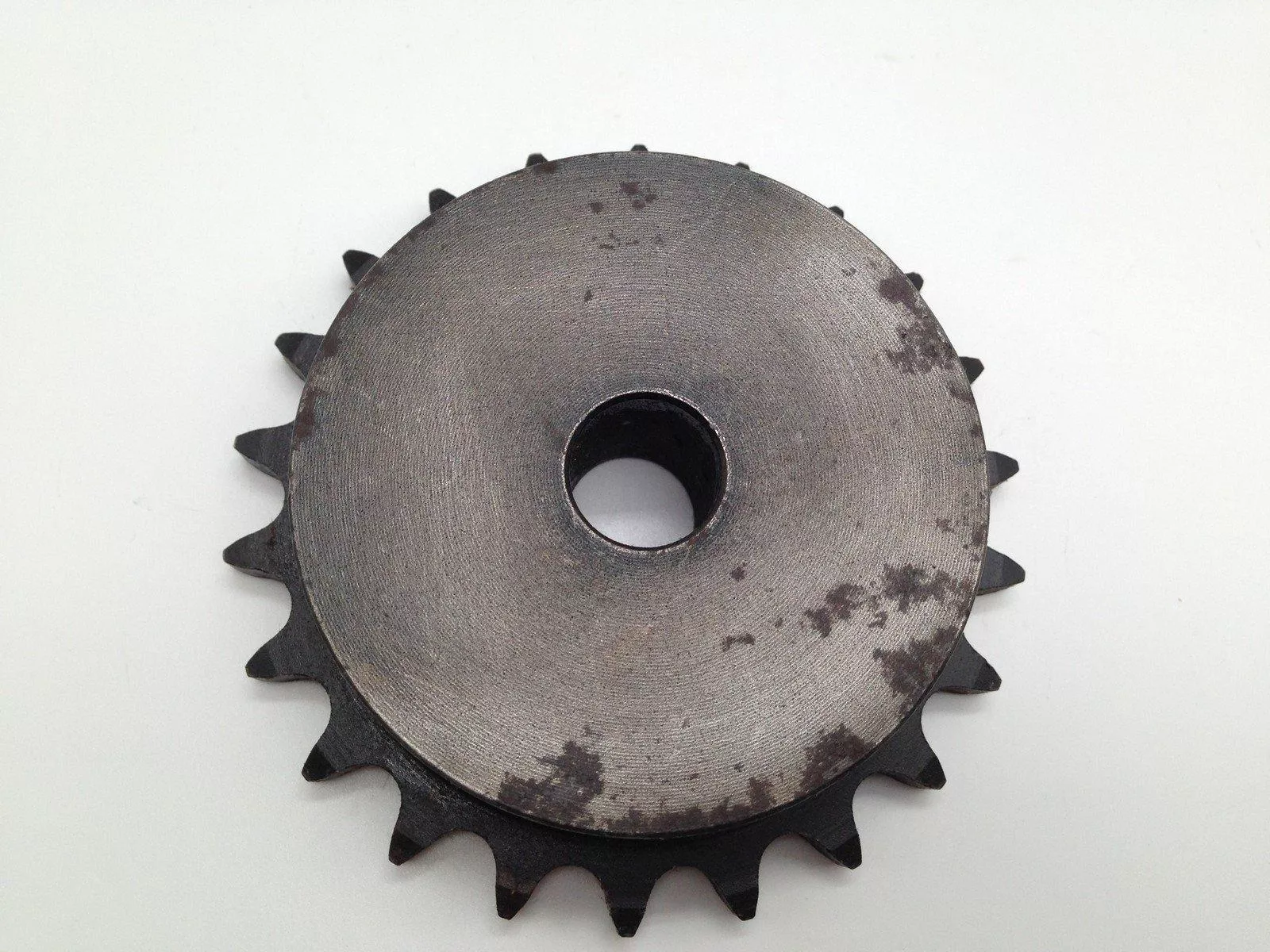

NEW MARTIN 40B22 SPROCKET - BORED TO SIZE

NEW MARTIN SOLID B SPROCKET - BORED TO SIZE, Chain number & pitch: 40 / 1/2 in; Caliper diameter: 3.2013 in; Hub style: B; Pitch diameter: 3.5133 in; Number of teeth: 22; Maximum bore diameter: 1.875 in; Bore type: Bored to Size; Tooth width: 0.284 in; Bore diameter: 0.6250 in; Storage dimension height: 1.0625 in; Number of strands across: 1; Storage dimension length: 4.3125 in; Material: Steel; Storage dimension width: 4.3125 in; Number of hubs: 1; Standards met: ANSI; Length through bore: 1.0000 in; Surface treatment: Protective Coating; Hardened teeth: Non-Hardened Teeth; Manufacturer upc number: 697950005225; Pitch type: Single; Hub diameter: 2.8750 in; Weight: 1.95 lbs; Outside diameter: 3.778 in, P/N 40B22

Condition: New

Weight:   3.00

Depth:   5.00

Length:   5.00

Width:   5.00

SKU:   41985 4.S5.4.4
