In stock 8 available

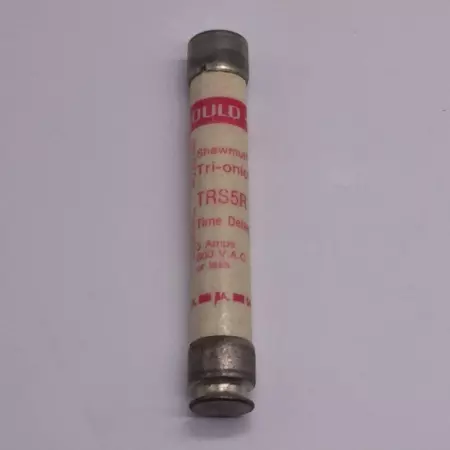

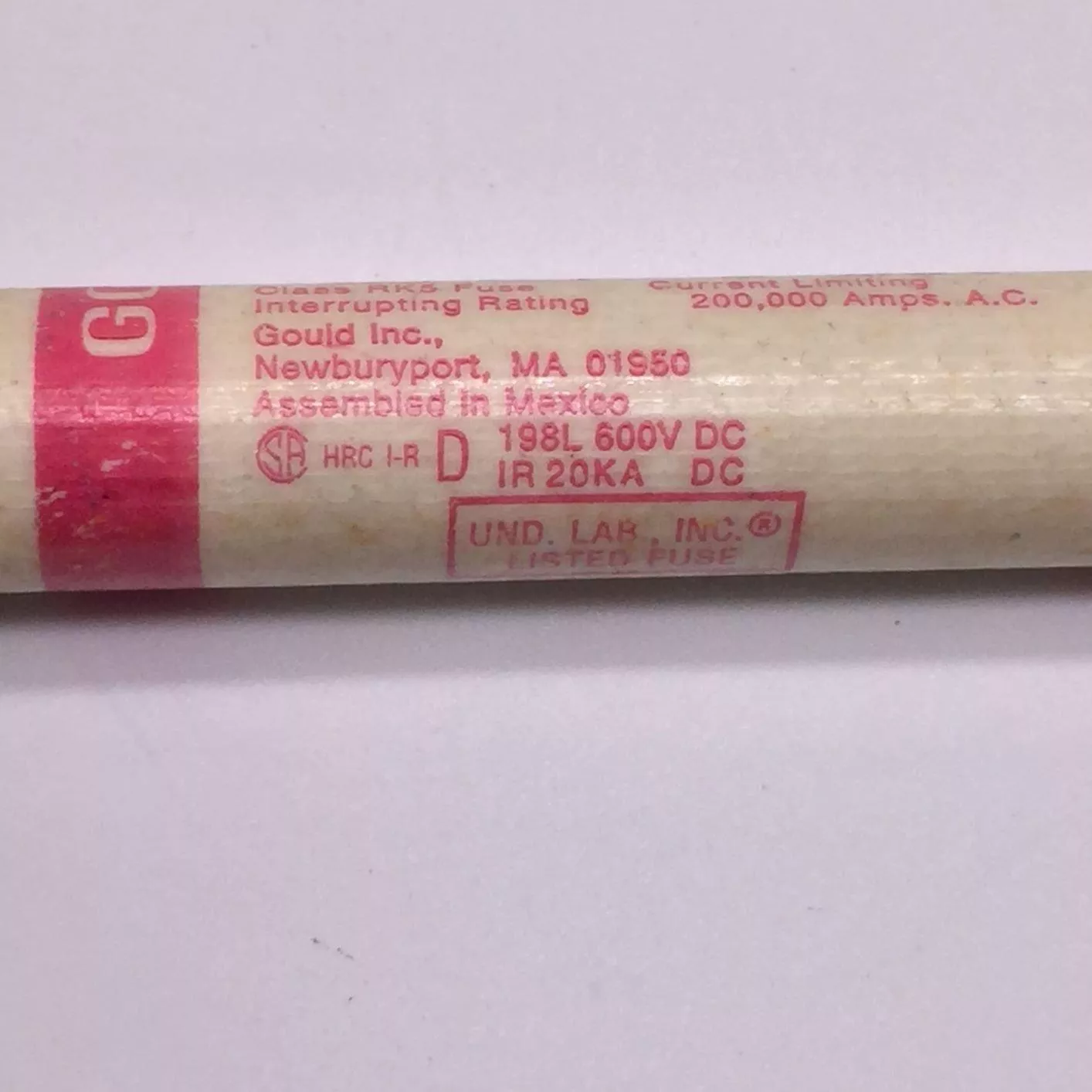

The Gould Shawmut TRS5R Tri-onic® is a 5-amp, dual-element, time-delay fuse designed for reliable overcurrent protection in industrial and commercial electrical systems. As a Class RK5 fuse, it operates at 600 volts AC and 600 volts DC, offering high interrupting ratings suitable for safeguarding various electrical components. Key Features: Time-Delay Performance: Allows temporary inrush currents, such as motor startups or transformer energization, to pass without causing unnecessary interruptions. High Interrupting Capacity: Capable of interrupting fault currents up to 200,000 amperes AC and 20,000 amperes DC, ensuring robust protection against short-circuit events. Current-Limiting Design: Reduces the potential impact of high fault currents by limiting the peak let-through current, thereby enhancing the protection of downstream equipment. Physical Specifications: Dimensions: Diameter: Approximately 13/16 inches (21 mm) Length: Approximately 5 inches (127 mm) Construction: Features a cylindrical body with ferrule terminals, facilitating secure and straightforward installation in compatible fuse holders.
Condition: Used
Weight: 2.00
Depth: 5.00
Length: 5.00
Width: 5.00
SKU: 42183 4.FR1.8
