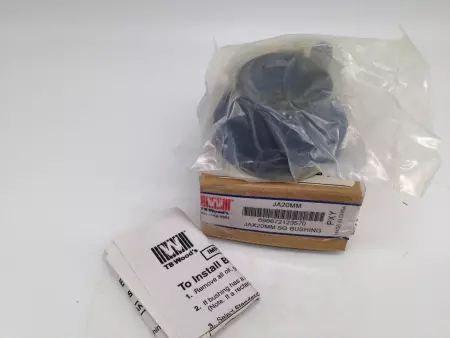

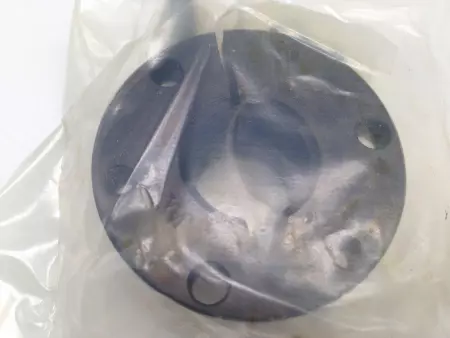

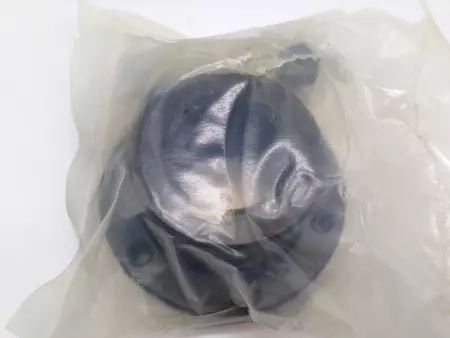

NEW TB Wood's JAX20MM SG SG Bushing 20mm Bore

NEW TB WOODS, Bore diameter: 20 mm Mounting type: Conventional or Reverse; Flange outside diameter: 2.0000 in; Screw torque: 5 ft-lbs; Flange thickness: 0.3125 in; Barrel diameter: 1-3/8 in; Length through bore: 1.0000 in; Barrel length: 11/16 in; Bushing size: JA; Bolt circle diameter: 1-21/32 in; Bore type: Finished w/ Keyway; Number of bolt holes: 3; Keyway size: 6 x 6 mm; Screw thread size: #10-24; Material: Ductile Iron; Screw length: 1 in; Torque capacity: 1750 in-lbs; Manufacturer catalog number: 120372 P/N JA20MM

Condition: New

Weight:   3.00

Depth:   5.00

Length:   5.00

Width:   5.00

SKU:   42234 4.S6.17.3
