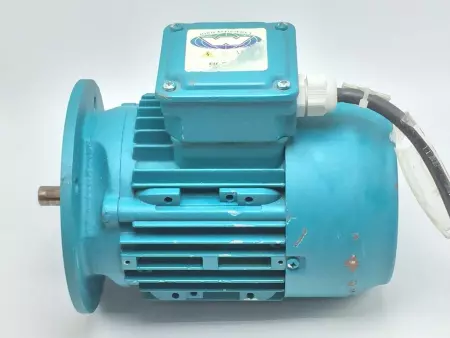

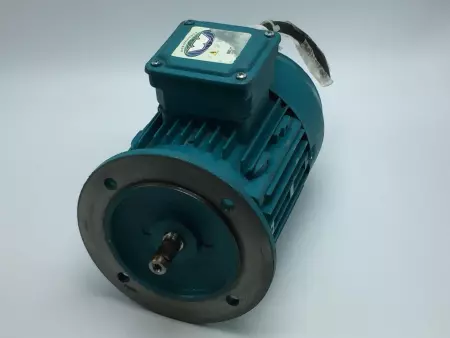

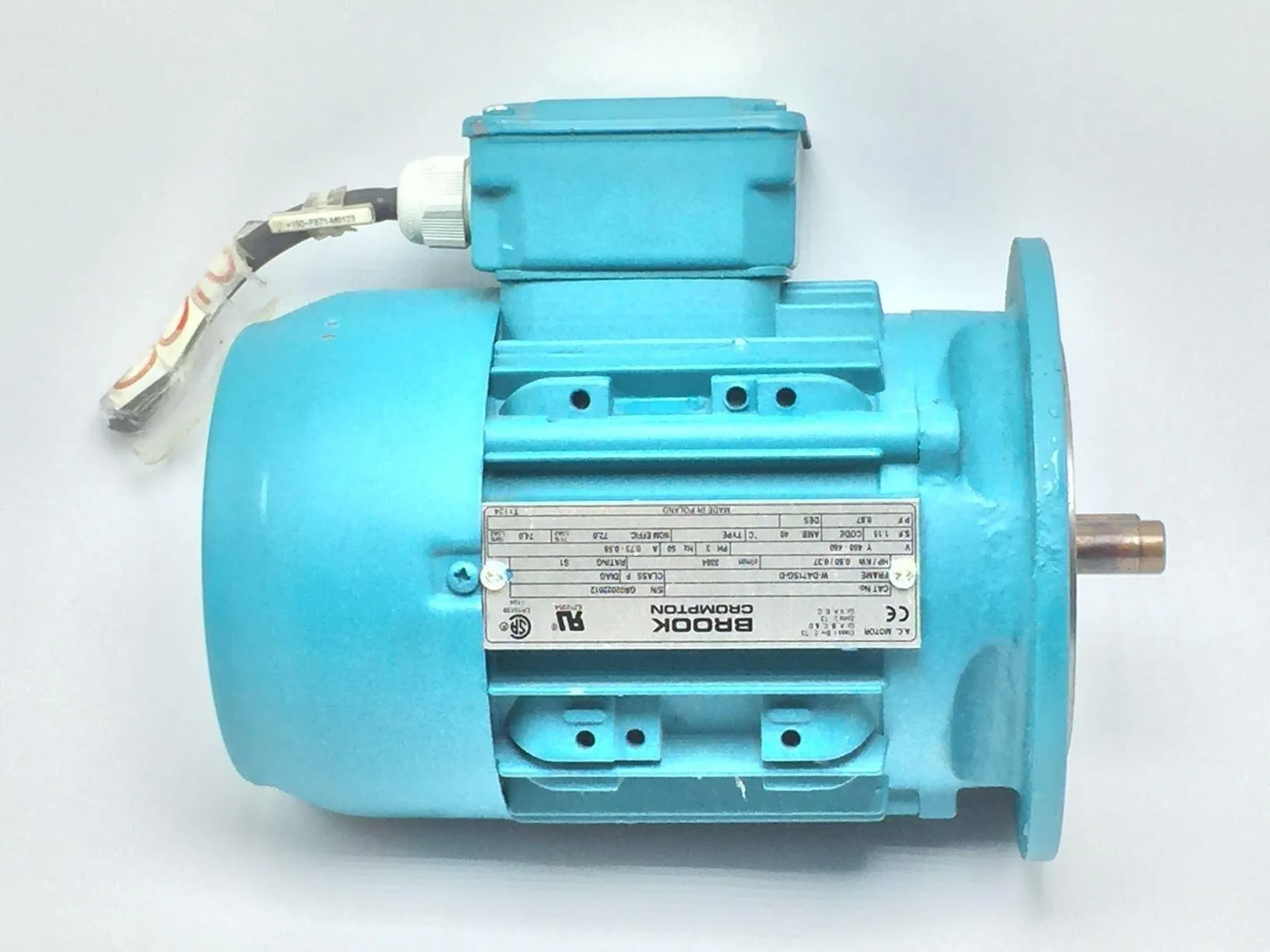

Brook Crompton W-DA71SG-D AC Motor 0.5HP

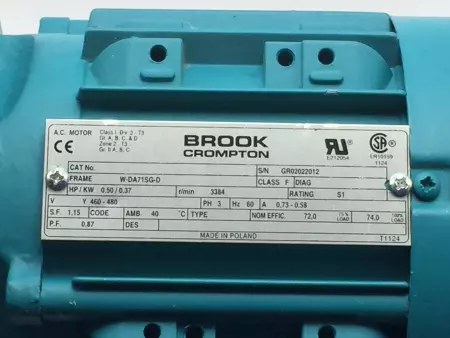

Model: Brook Crompton W-DA71SG-D Power: 0.50 HP / 0.37 kW Speed: 3384 r/min Voltage: Y 460-480 V Current: 0.73 – 0.58 A Frequency: 60 Hz Phases: 3 Insulation Class: F Service Factor (S.F.): 1.15 Ambient Temp: 40°C Enclosure Type: Not explicitly listed Protection Class: Zone 2 T3 (Class I Div. 2, T3; Groups A, B, C, D) Efficiency: – 72.0% (Nominal) – 74.0% (at 100% load) – 75% load efficiency: not specified clearly Power Factor (P.F.): 0.87 Duty Rating: S1 (Continuous) Country of Manufacture: Made in Poland Serial Number: GR02022012 Certifications: CE, UL (E212054), CSA (LR10159 1124)

Condition: Used

Weight:   18.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   42375 4.S4.7.1
