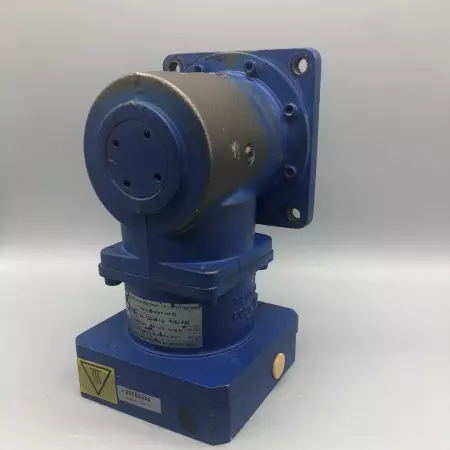

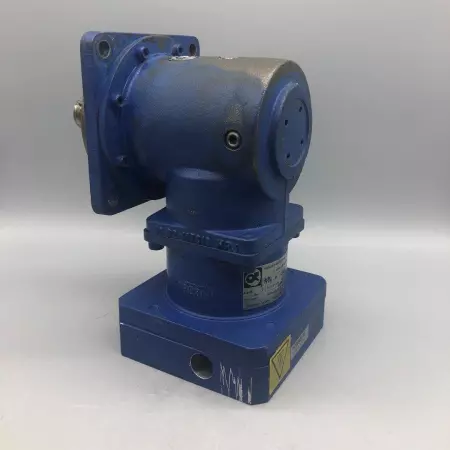

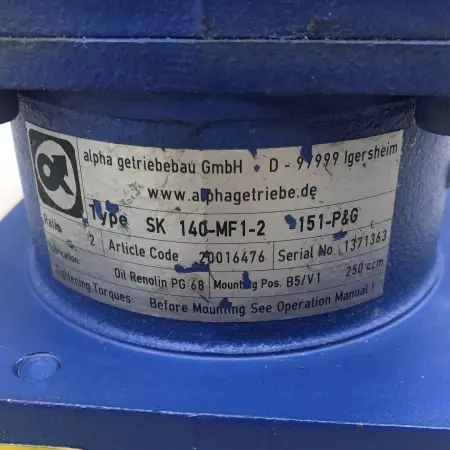

Alpha SK 140-MF1-2-151 Right Angle Gearbox Ratio 2:1

Alpha SK 140-MF1-2-151 is a precision right-angle planetary gearbox designed for high-performance motion control applications. It offers a 2:1 gear ratio and features a compact, rigid design for efficient torque transmission in tight spaces. Specifications: Manufacturer: Alpha (Wittenstein) Model: SK 140-MF1-2-151 Gearbox Type: Right Angle Planetary Gearbox Gear Ratio: 2:1 Frame Size: 140 mm Output Configuration: Solid shaft Input Configuration: Motor flange MF1 (custom motor mounting interface) Max Input Speed: Up to 6000 RPM (application-dependent) 35mm clamping hub bore hole diameter Nominal Output Torque: Approx. 300–500 Nm (varies by duty and ratio) Backlash: Low-backlash, typically ≤6 arcmin for standard version Lubrication: Lifetime lubrication (maintenance-free) Mounting Position: Any (universal mounting) Application: Robotics, CNC machinery, packaging systems, and automation equipment

Condition: Used

Weight:   35.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   42579 4.R1.5.2
