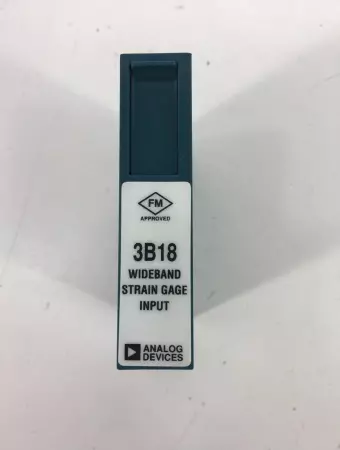

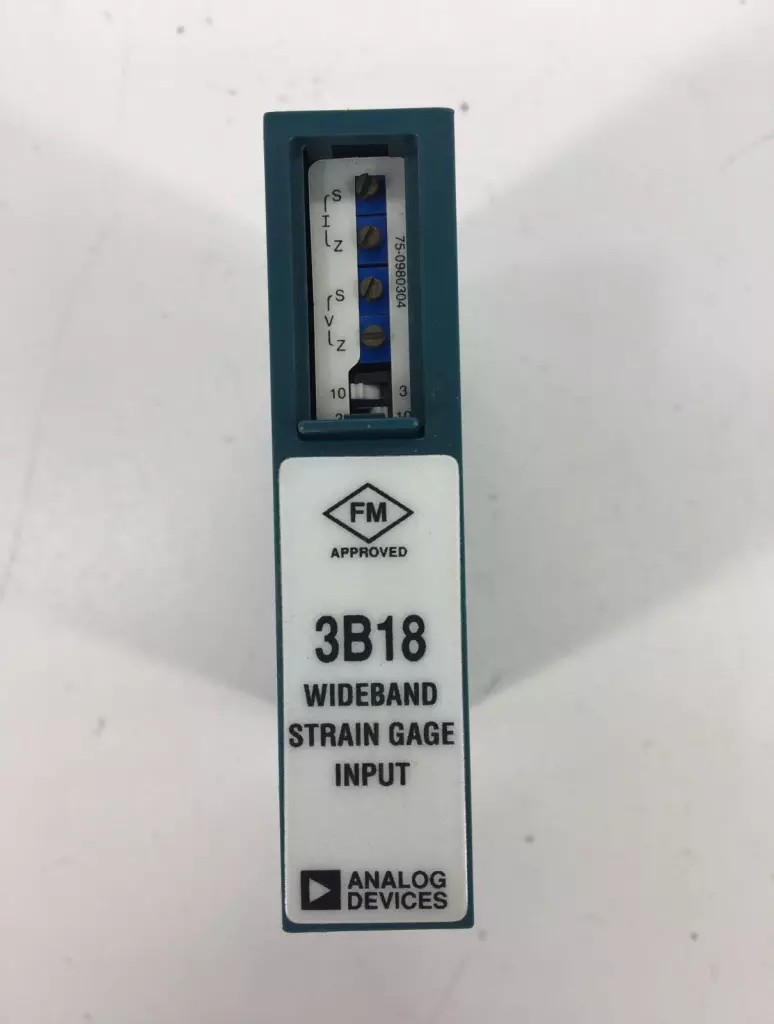

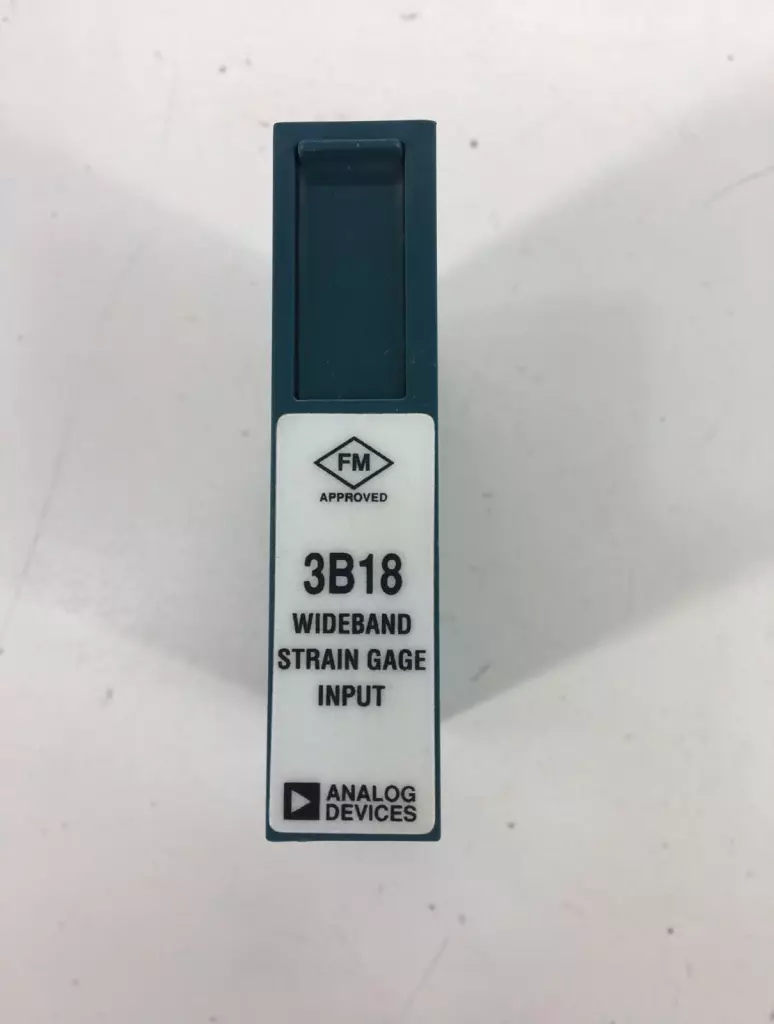

Analog Devices 3B18-01 Wideband Strain Gage Input

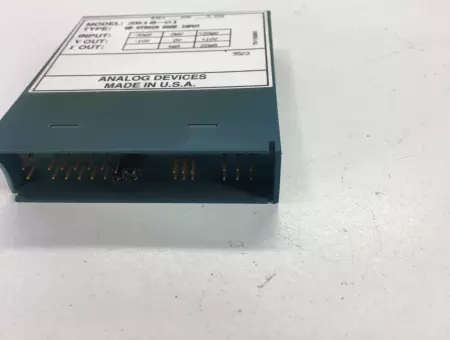

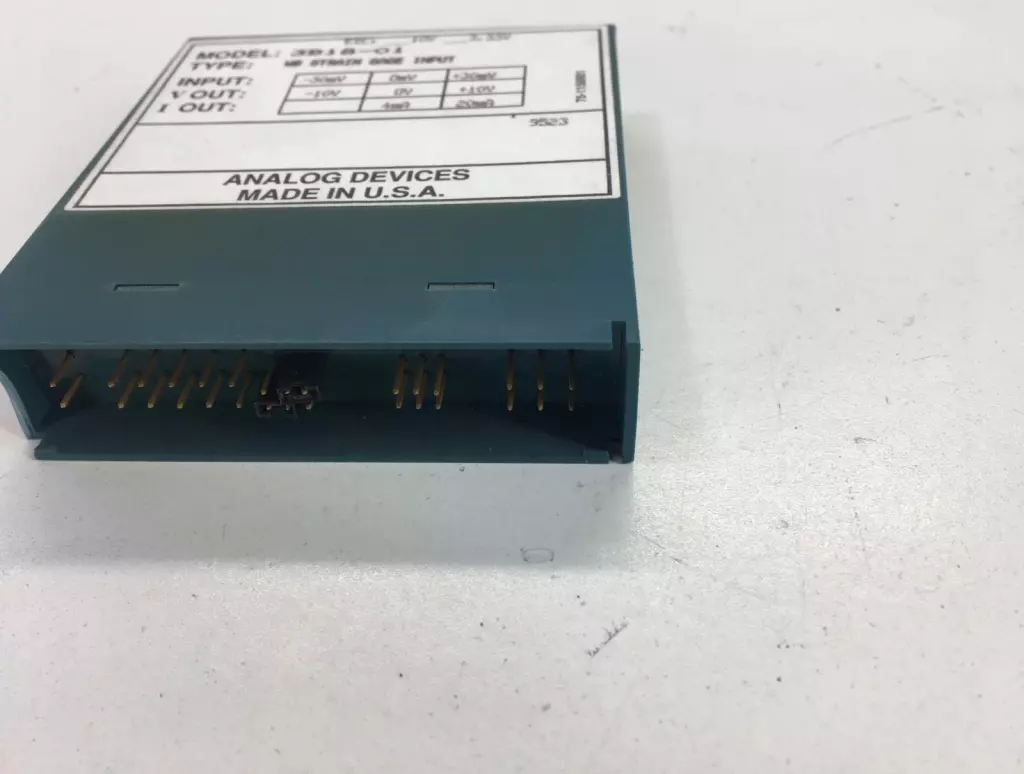

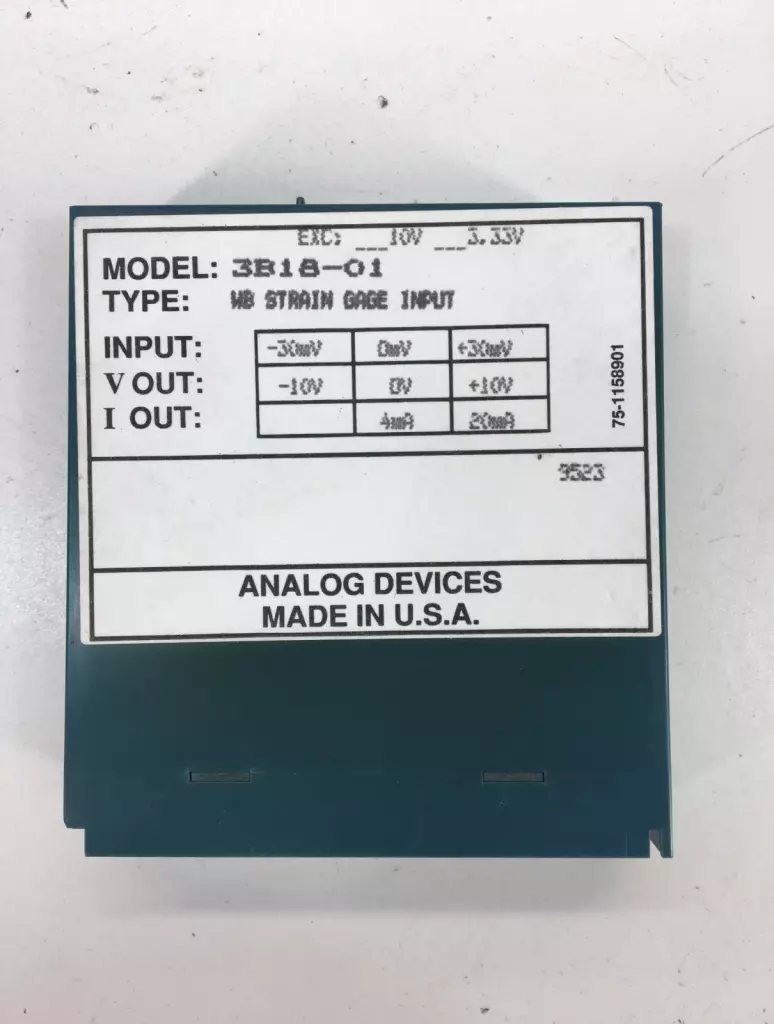

The Analog Devices 3B18-01 is a signal conditioning module specifically designed to interface with strain gage sensors. It amplifies and converts low-level mV signals from strain gages into standardized voltage or current outputs for use in data acquisition and control systems. Model: 3B18-01 Type: Wideband (WB) Strain Gage Input Input Range: ±30 mV (centered at 0 mV) Excitation Voltage: 10 V (typical), adjustable down to 3.33 V Voltage Output (V OUT): -10 V (at -30 mV), 0 V (at 0 mV), +10 V (at +30 mV) Current Output (I OUT): 4 mA (at -30 mV), 20 mA (at +30 mV) Mounting: DIN rail or panel-mount carrier Isolation: Galvanic isolation between input, output, and power supply Accuracy: High precision, low drift (industrial-grade performance) Manufacturer: Analog Devices Country of Origin: Made in U.S.A. Applications: Load cells, pressure transducers, torque sensors, industrial strain measurement systems, test benches, and structural monitoring systems Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.50

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   426 4.S5.14.3
