Gefran TC-K3.5M-C-S Load Cell, Range 3500Kg, F00544

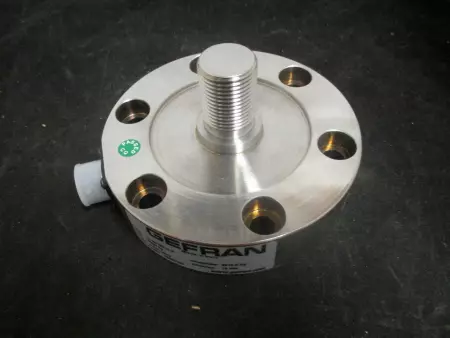

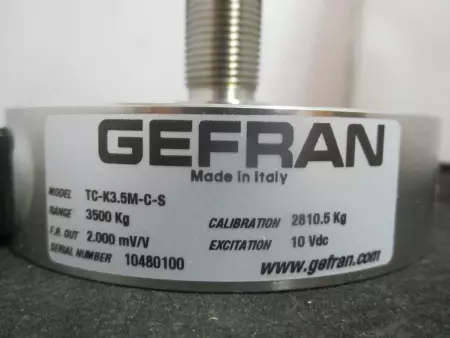

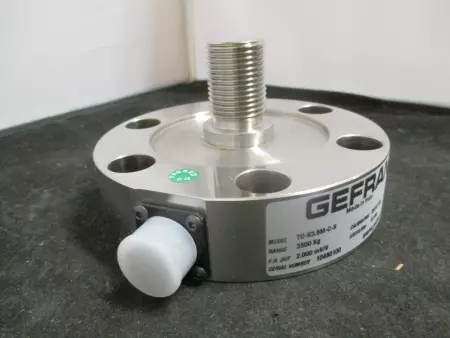

The Gefran TC-K3.5M-C-S Load Cell is a high-precision strain gauge transducer designed for measuring loads up to 3500 kg in both tension and compression. It is commonly used in industrial weighing applications requiring accuracy, reliability, and durability. Technical Specifications: Load Capacity: 3500 kg Accuracy Class: 0.2% Sensitivity: 2 mV/V Input Resistance: 700 Ω Output Resistance: 700 Ω Nominal Supply Voltage: 10V (max 15V) Protection Rating: IP67 (Dustproof and Water-Resistant) Material: Stainless Steel for corrosion resistance and longevity Thermal & Mechanical Performance: Compensated Temperature Range: -10°C to +50°C Operating Temperature Range: -20°C to +60°C Safe Load Limit: 130% of full-scale load Maximum Overload Capacity: 150% of full-scale load Rupture Load: 300% of full-scale load

Condition: New

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   43029 4.S5.12.1
