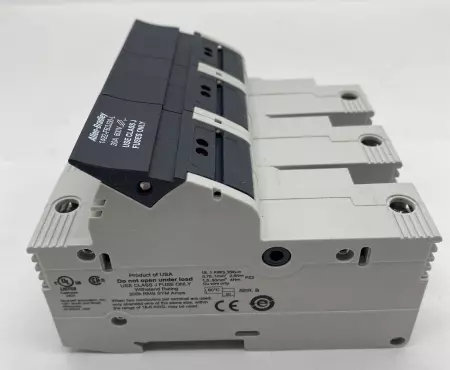

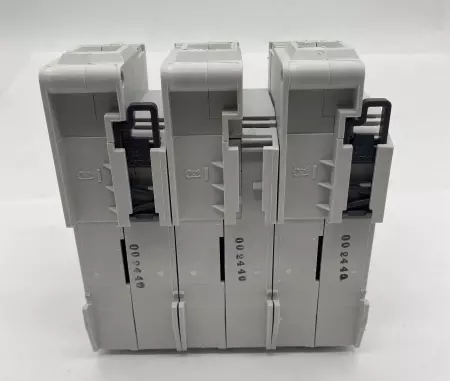

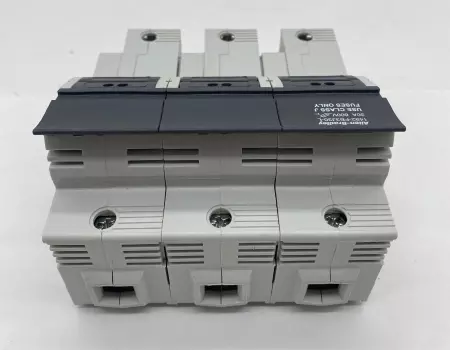

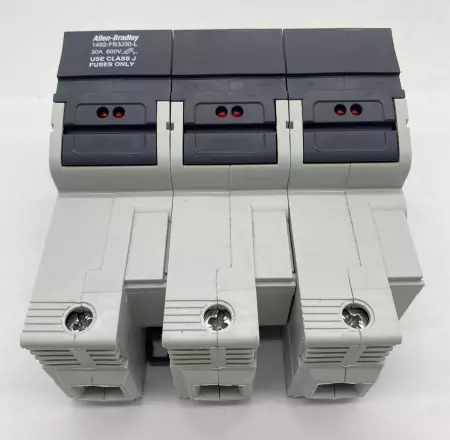

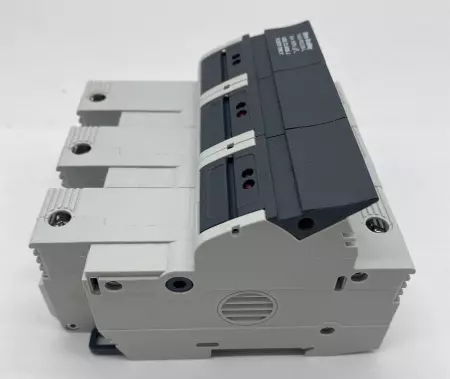

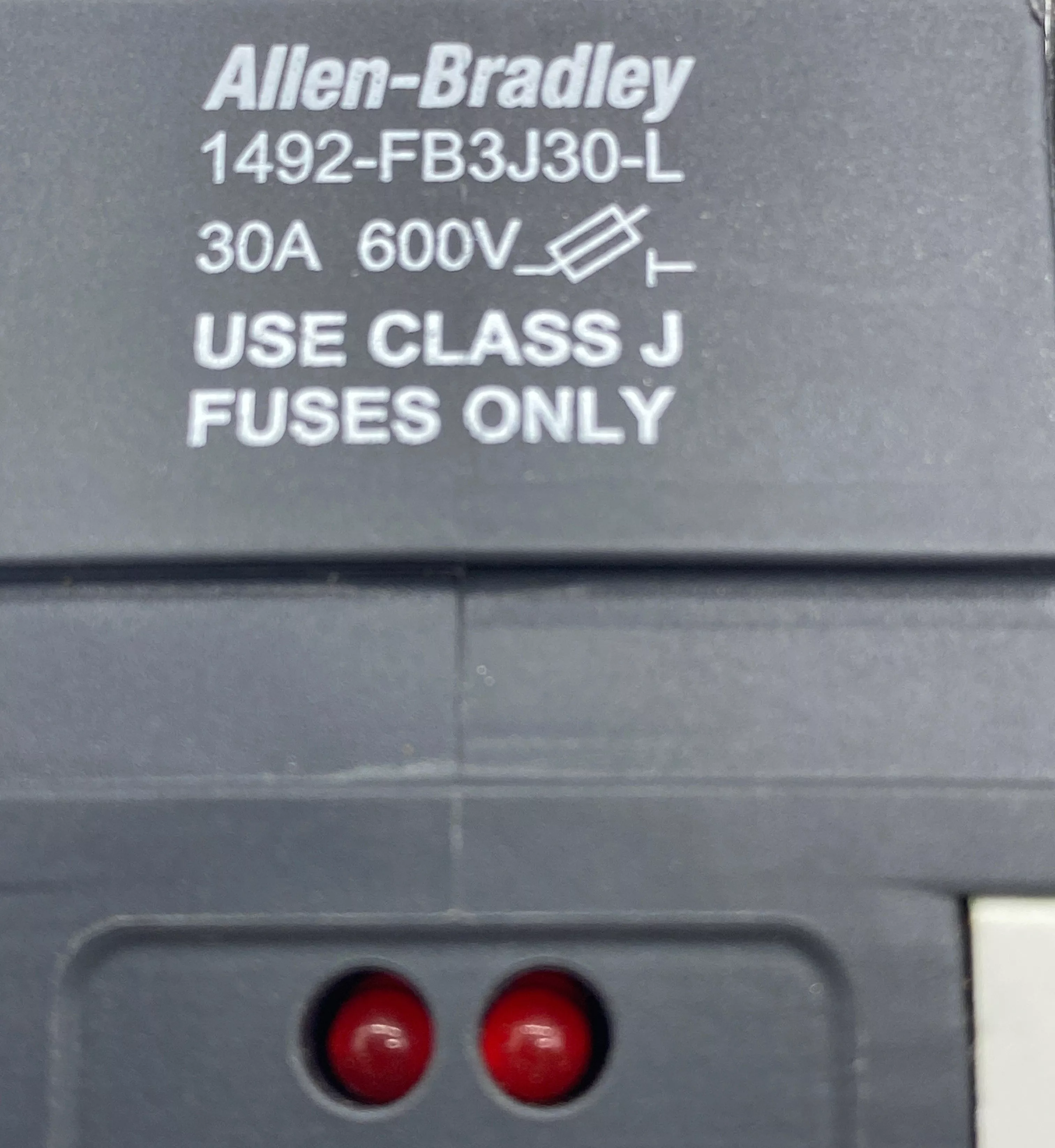

Allen Bradley 1492-FB3J30-L Fuse Holder 30A 600V, Class J Fuses

​The Allen-Bradley 1492-FB3J30-L is a three-pole fuse holder designed for Class J fuses, rated at 30 amperes and capable of handling voltages up to 600V AC/DC. It features an LED blown fuse indicator for voltages ranging from 110V to 600V, providing immediate visual notification of fuse status. ​ Key Features: Fuse Compatibility: Supports Class J fuses, suitable for branch circuit protection, wire protection, small motor loads, and group protection of small motor loads. ​ Blown Fuse Indicator: Equipped with an LED indicator that illuminates when a fuse has blown, facilitating quick identification and maintenance. ​ Construction: Features silver-plated fuse clips for improved contact and a ventilated housing for enhanced air flow and fuse ventilation. ​ Mounting: Designed for easy installation on standard 35 mm DIN rails, simplifying setup and maintenance. ​ Specifications: Number of Poles: 3​ Maximum Voltage: 600V AC/DC​ Maximum Current: 30A​ Blown Fuse Indicator Voltage Range: 110...600V AC/DC​ Conductor Range: One wire per terminal: #14…1 AWG (2.5…50 mm²)​ Two wires per terminal (same size): #14…#6 AWG (2.5…16 mm²)​ Terminal Tightening Torque: 35 lb·in (4 N·m)​ Operating Temperature Range: -4 to 130°F (-20 to 55°C)​ Certifications: UL Listed, CSA Certified, CE Marked​

Condition: Used

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   43093 4.S2.5.3
