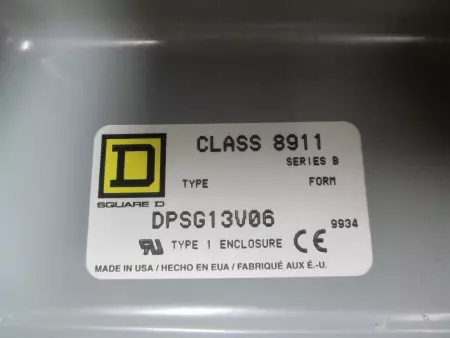

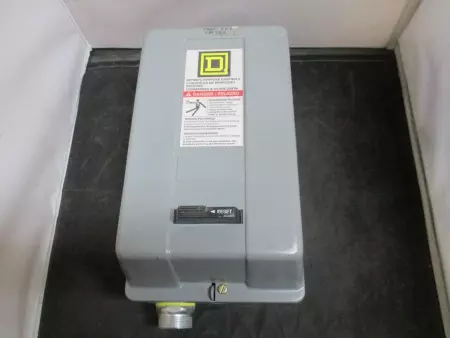

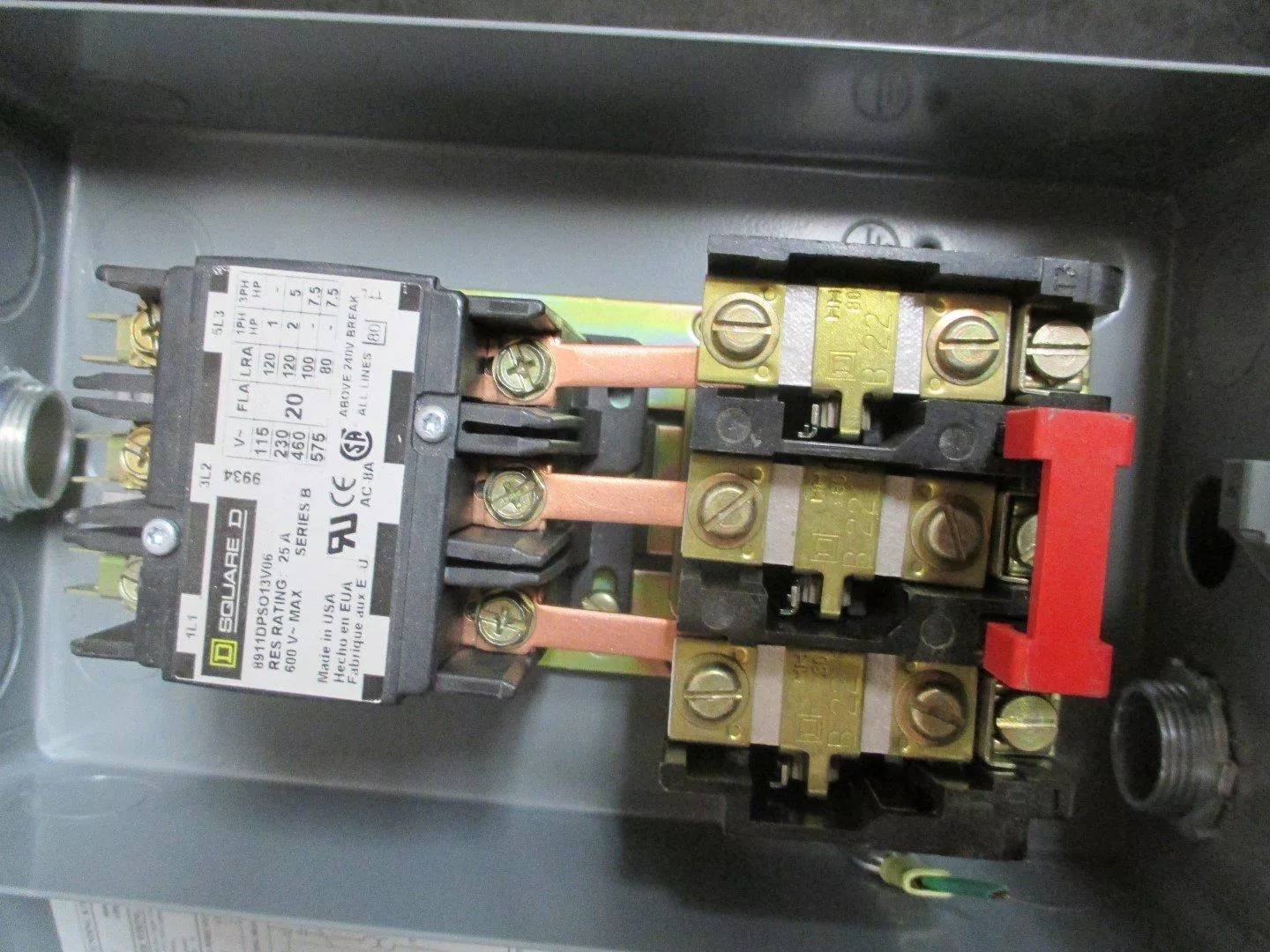

Square D DPSG13V06 Panel Enclosure W/3-Pole Motor Starter 600V 20Amps

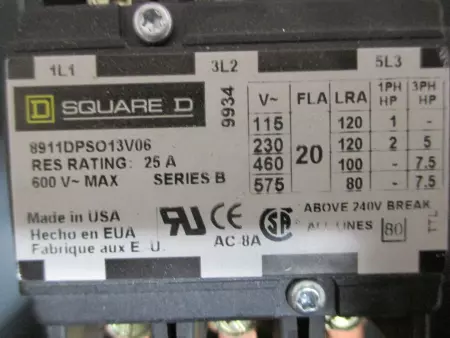

Square D DPSG13V06 is a 3-pole definite purpose motor starter designed for general-purpose motor control applications. It is rated for up to 600 volts and 20 amps, making it suitable for light to moderate industrial loads. Product Type: Definite Purpose Motor Starter Model Number: DPSG13V06 Poles: 3-Pole Voltage Rating: 600 VAC max Coil Voltage: 440V AC at 50 Hz, or 480V AC at 60 Hz Configuration: 3-Pole (3L1, 3L2, 3L3 terminals) Voltage Rating (Max): 600 V AC Resistive Load (RES) Rating: 25 A Full Load Amperes (FLA): 20 A Locked Rotor Amperes (LRA): 120 A @ 115/230 VAC 100 A @ 460 VAC 80 A @ 575 VAC Contact Configuration: Normally open power contacts Enclosure Type: Open type (unless specified otherwise) Frequency: 50/60 Hz Mounting Type: Panel mount Terminal Type: Screw terminals Application: HVAC units, pumps, compressors, conveyors, and other motor loads Standards Compliance: UL Listed, CSA Certified Manufacturer: Square D (a brand of Schneider Electric)

Condition: Used

Weight:   19.00

Depth:   16.00

Length:   12.00

Width:   16.00

SKU:   43201 4.S5.4.2
