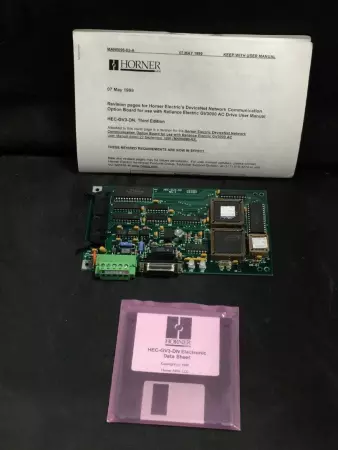

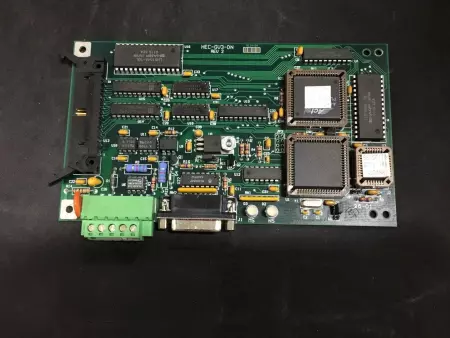

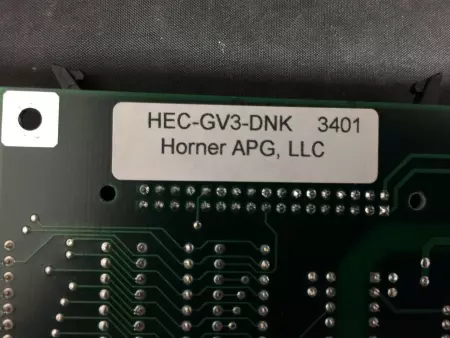

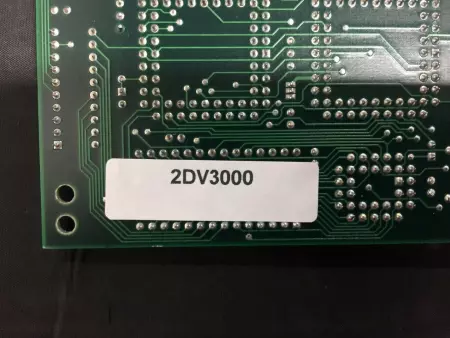

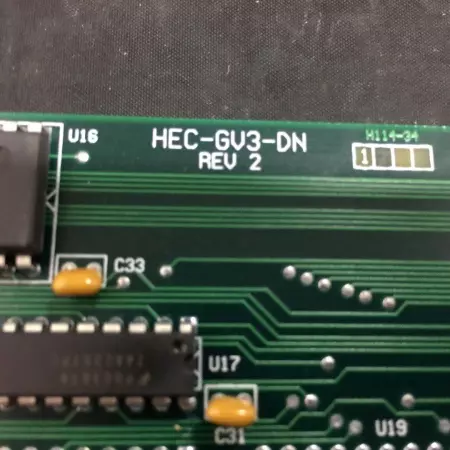

Horner HEC-GV3-DN Devicenet Network Communication Board 2DV3000

Industrial-grade network communication board designed to provide DeviceNet connectivity for Horner Electric Controllers (HEC series). The Horner HEC-GV3-DN (2DV3000) module enables integration of automation systems into DeviceNet-based fieldbus networks, supporting real-time control and data exchange. Technical Specifications: Manufacturer: Horner APG Model: HEC-GV3-DN Part Number: 2DV3000 Component Type: DeviceNet Communication Expansion Board Network Protocol: DeviceNet (based on CANopen layer) Compliance: ODVA-compliant DeviceNet protocol stack Baud Rates Supported: 125, 250, 500 kbps (auto or DIP switch selectable) Node Addressing: 0–63 (set via DIP switch or software) Interface Type: 5-pin DeviceNet connector (V+, V–, CAN_H, CAN_L, shield) Power Supply: 11–25 VDC (provided via DeviceNet trunk line) Data Format: Producer/consumer and polled messaging modes Integration: For use with Horner HEC GV3 controllers (HEC-GV3 series) Indicators: LED status for power, communication activity, and fault diagnostics Mounting: PCB mount within HEC controller enclosure Operating Temperature: –10 °C to +60 °C Protection: Circuit-level ESD and transient protection (within controller housing) Application: for use with Reliance Electric GV3000 AC Drive

Condition: New – Open box

Weight:   6.00

Depth:   6.00

Length:   12.00

Width:   12.00

SKU:   43605 4.S1.11.4D
