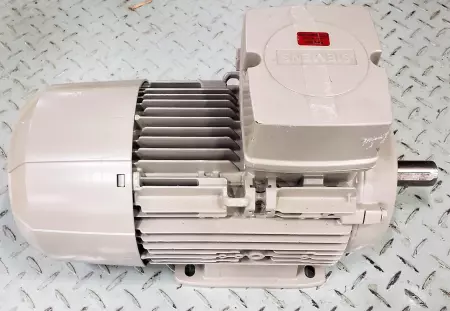

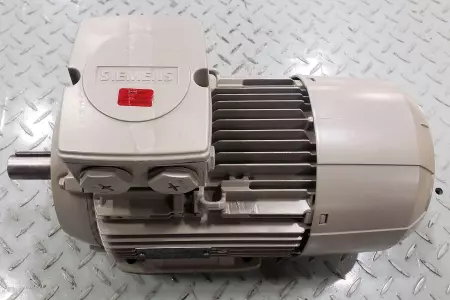

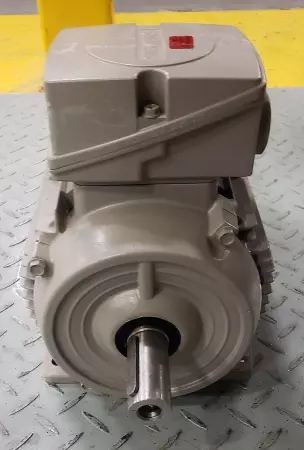

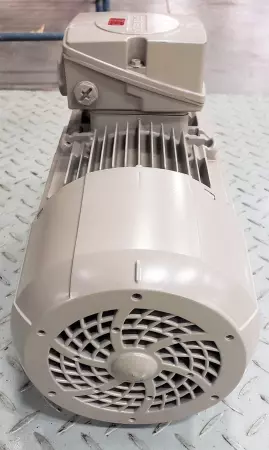

Siemens 1LE10231AA434AB4-Z Simotics GP AC Motor, 4HP/3.45kW

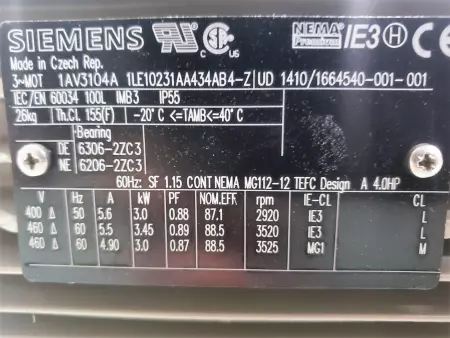

The Siemens 1LE10231AA434AB4-Z is a General Purpose (GP) three-phase induction motor from the Simotics series, designed for industrial use. It features IE3 efficiency classification and a Totally Enclosed Fan-Cooled (TEFC) design for reliable operation in challenging environments. Nameplate Specifications Model: 1LE10231AA434AB4-Z Catalog number: 1AV3104A Type: Three-phase induction motor Power: 4 HP / 3.0–3.45 kW Frame Size: 100L Voltage & Current: 400 V Δ, 50 Hz, 5.6 A 460 V Δ, 60 Hz, 5.5 A (3.45 kW) 460 V Δ, 60 Hz, 4.9 A (3.0 kW) Frequency: 50/60 Hz Speed: 2920 rpm @ 50 Hz 3520/3525 rpm @ 60 Hz Power factor (PF): 0.87–0.89 Efficiency (NOM.EFF): 87.1%–88.5% Service factor: 1.15 Duty: Continuous (S1) Design code: NEMA Design A Thermal class: 155°C (Class F) Insulation class: F Efficiency class: IE3 (Premium Efficiency) Protection: IP55 (dust protected and water jet resistant) Mounting: IMB3 (foot-mounted) Frame size: IEC 100L Bearings: Drive end: 6306-2ZC3 Non-drive end: 6206-2ZC3 Weight: 26 kg Ambient temperature range: -20 °C to +40 °C Country of origin: Made in Czech Republic

Condition: New

Weight:   65.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   43628 4.R5.1.2, 4.R6.3.5, 4.R6.4.6, 4.R7.1.6
