In stock 3 available

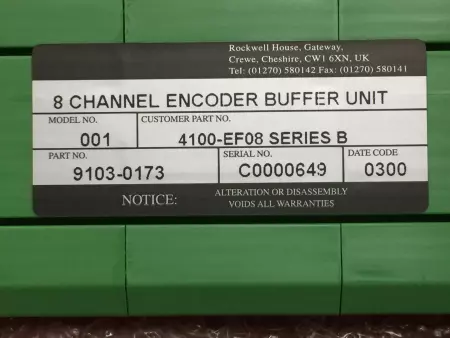

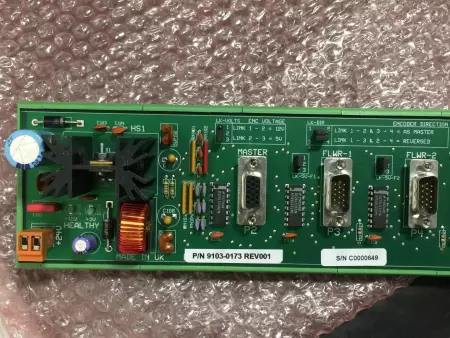

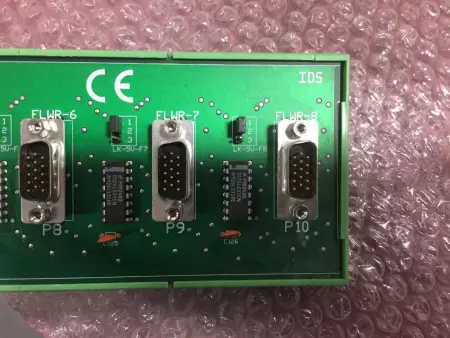

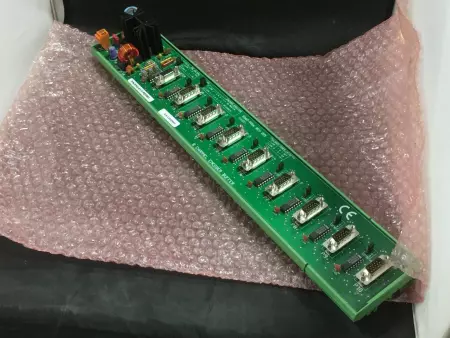

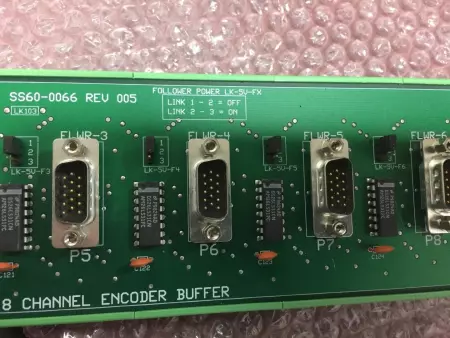

The Allen-Bradley 4100-EF08 (Part Number 9103-0173) is an 8-channel encoder buffer unit designed to distribute encoder signals to multiple devices within industrial automation systems. This module ensures that a master encoder's signal can be accurately and reliably transmitted to up to eight different channels, facilitating synchronized operations across various components. Key Specifications: Model Number: 4100-EF08 Part Number: 9103-0173 Number of Channels: 8 Input Voltage: Selectable 5 Volts DC or 12 Volts DC Input Signal Compatibility: TTL level RS422 encoder signals Power Supply Voltage Range: 18 to 36 Volts DC Current Consumption: Varies with supply voltage; for example, 1.1 A at 18 V, 0.8 A at 24 V, and 0.7 A at 36 V Operating Temperature Range: 0 to +60 degrees Celsius Protection Rating: IP20 Features: Signal Distribution: Allows a single master encoder signal to be buffered and distributed to up to eight separate channels, ensuring consistent signal integrity across multiple devices. Selectable Input Voltage: Accommodates different encoder types by allowing selection between 5 VDC and 12 VDC inputs. DIN Rail Mounting: Designed for easy installation with integral mounting feet suitable for DIN rail setups. Signal Reversal Capability: Features the ability to reverse input signals, providing flexibility in application configurations.
Condition: New – Open box
Weight: 10.00
Depth: 10.00
Length: 20.00
Width: 10.00
SKU: 43629 4.R7.7.2, 4.S1.12.5A
