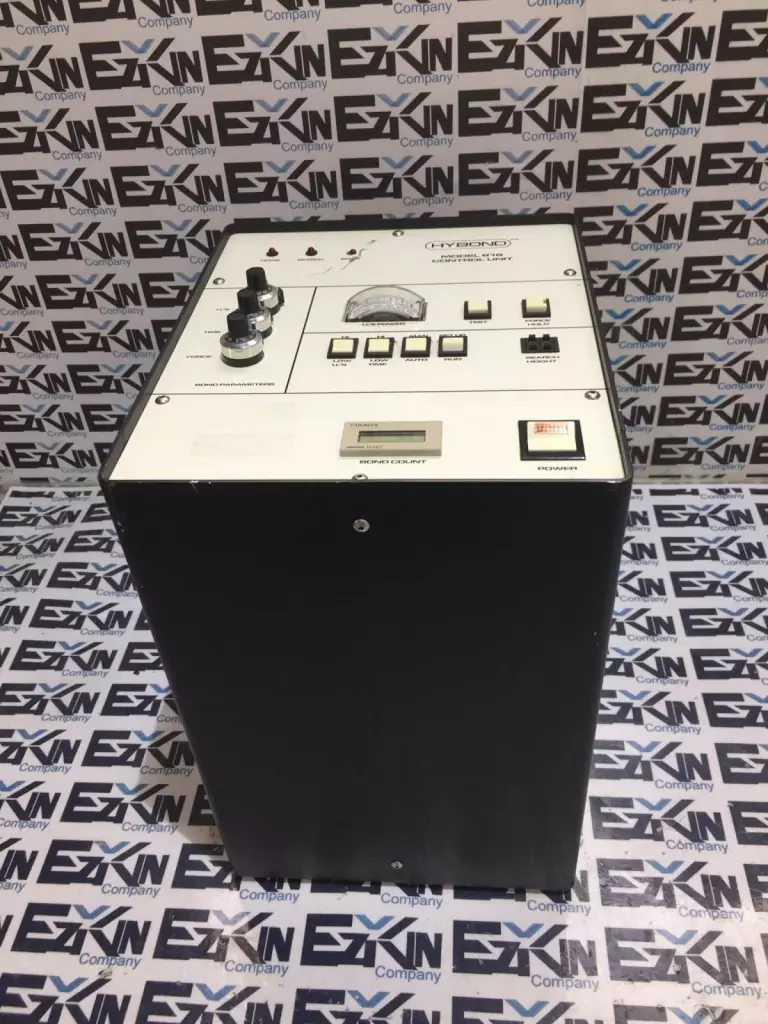

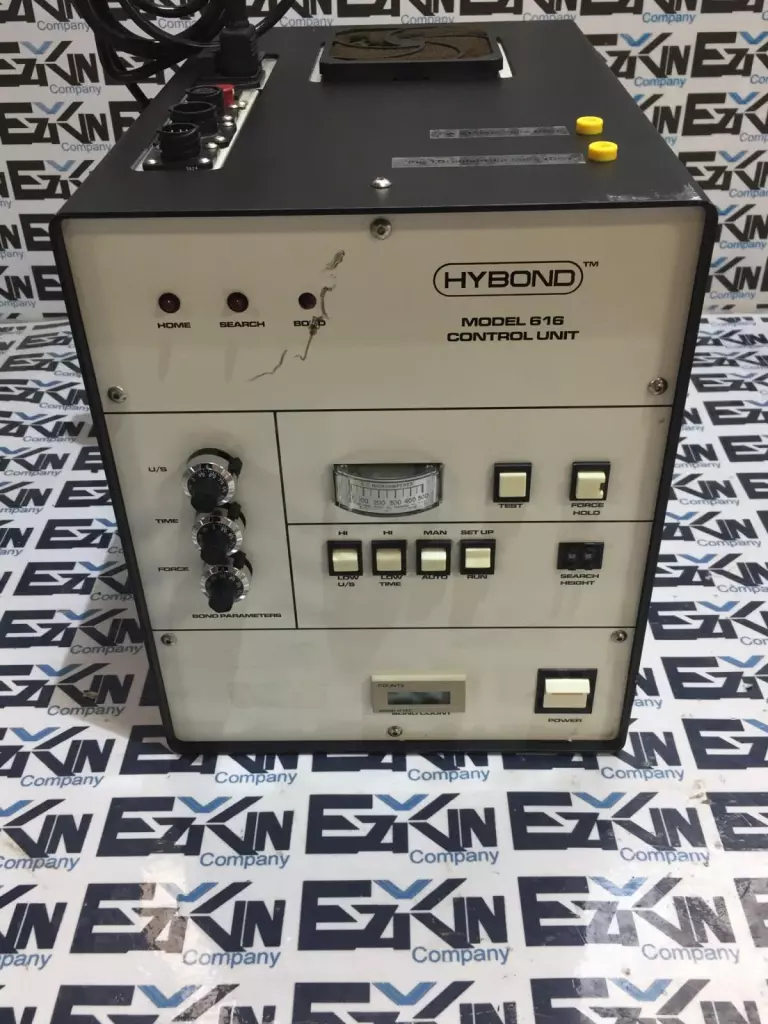

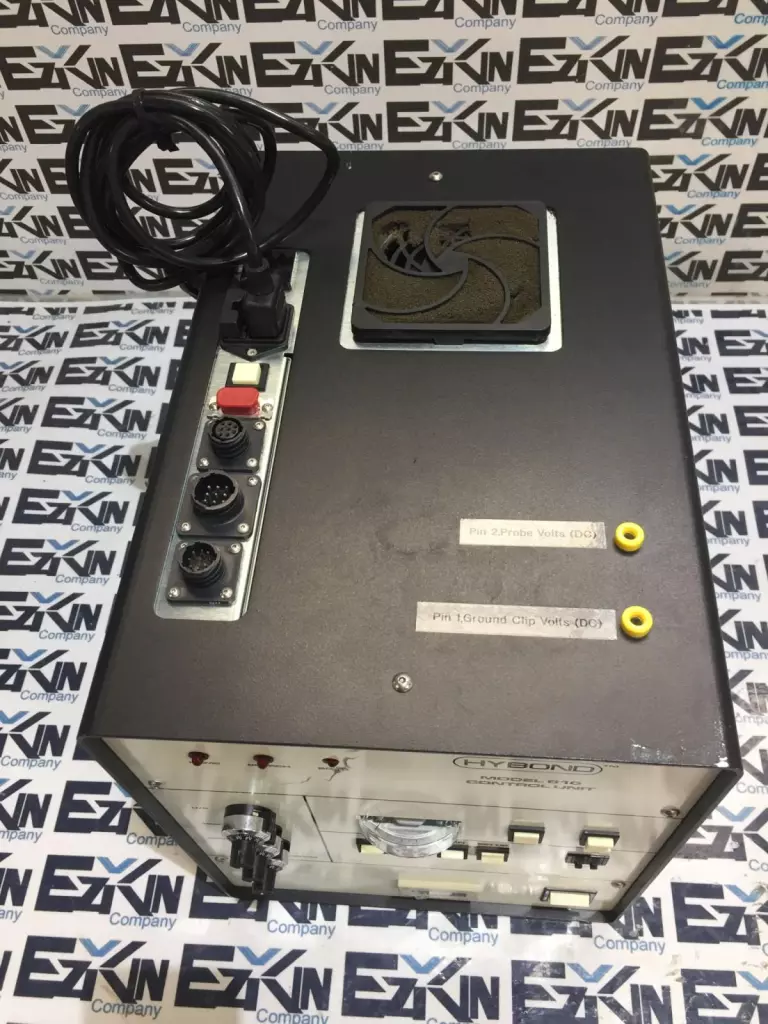

Hybond 616-003 Ultrasonic Bonder Control Unit

Ultrasonic Cleaners

$1,640
$284.00
Save 83%

In stock 2 available

Quantity
Total Price: $284.00

Share this item:

Questions?

Powered by KiipList Logo

Precision digital control unit for ultrasonic bonding applications, designed for use with Hybond 616B-003 bonders to deliver programmable and repeatable bonding performance in wire, ribbon, and peg bonding. Model: 616-003 Type: Ultrasonic Bonder Control Unit Ultrasonic Frequency: 62.5 kHz ±2.5 kHz Ultrasonic Power Output: • Low Range: 0–0.2 W • High Range: 0–4.0 W Bond Time Range: 0–900 ms Bond Force Range: 12–300 g Wire Size Range: 0.7–3.0 mil (18–76 μm) Ribbon Capability: Up to 1 × 20 mil (25 × 500 μm) Bond Head Z‑Travel: 0.75″ (19 mm) Bonding Actuation: Touch-triggered cycle start with force sensor Controls: • Digital adjustments for power, time, and force • Front-panel test function • Dual bond counters • Storage for up to 10 bond schedules in non-volatile memory Drive Mechanism: Servo-controlled vertical motion Mounting: Bench-top system with separate bond head and control unit Power Supply: 120 VAC 50/60 Hz standard, 240 VAC optional Control Unit Dimensions: 14″ × 9.5″ × 11.5″ (358 × 241 × 292 mm) Weight: Control unit ~70 lb (32 kg) User Interface: Manual or footswitch operation with LED status indicators Application: Fine wire and ribbon bonding, peg and pin bonding, tack bonding, flex circuit connections, ball coining Please review pictures carefully and let us know if you have any questions!

Brand:
HybondMPN

Condition: Used

Weight:   27.03

Depth:   20.00

Length:   30.00

Width:   20.00

SKU:   4363 4.S7.6.6
