In stock 3 available

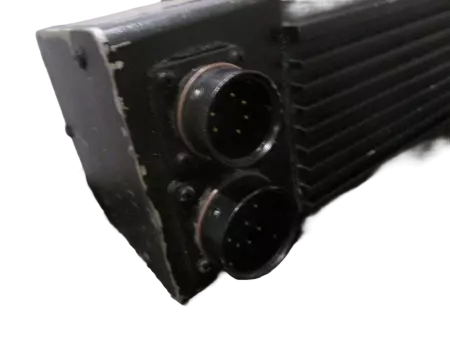

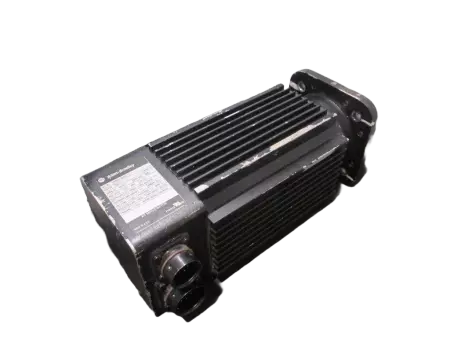

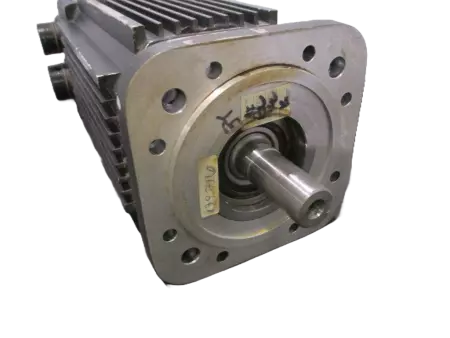

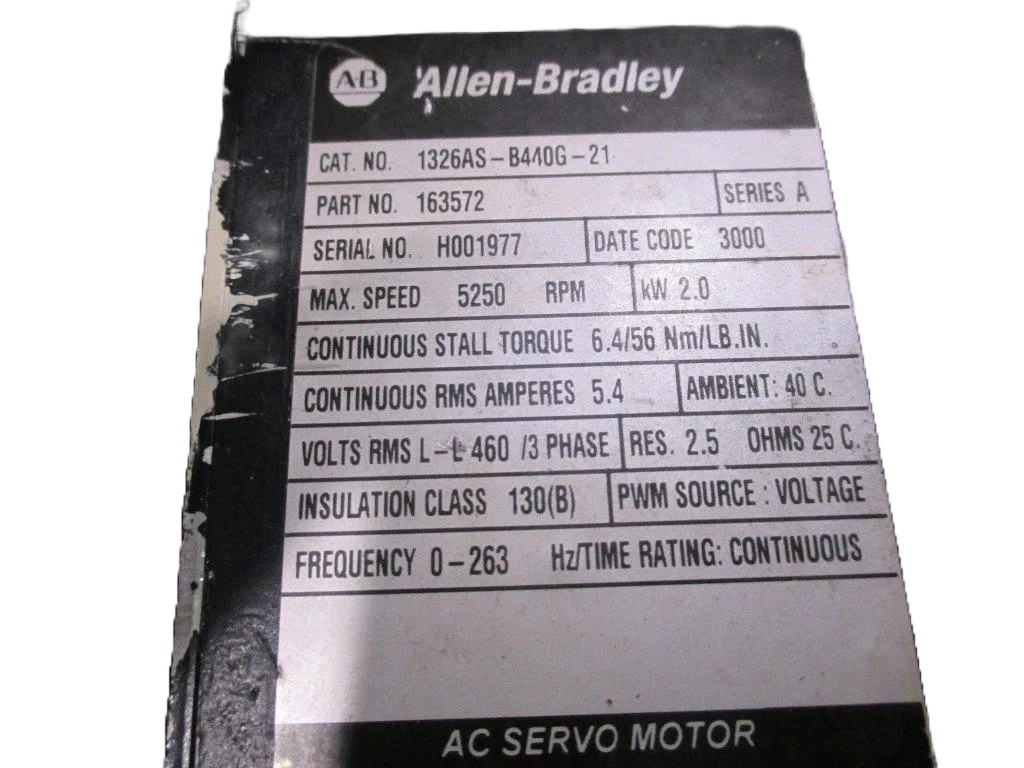

The Allen-Bradley 1326AS-B440G-21 is a durable and efficient AC servo motor engineered for industrial automation tasks requiring consistent torque, reliable feedback, and compact high-speed operation. It delivers 2.0 kW of power with excellent thermal performance and continuous-duty capability. Power: 2.0 kW Max Speed: 5250 RPM Continuous Stall Torque: 6.4 Nm Continuous RMS Amperes: 5.4 A Voltage: 460 V RMS line-to-line, 3-phase Resistance: 2.5 Ohms @ 25°C Insulation Class: 130(B) Ambient Temperature: 40°C PWM Source: Voltage Frequency Range: 0–263 Hz Time Rating: Continuous Catalog Number: 1326AS-B440G-21 Part Number: 163572 Series: A Feedback: Resolver (assumed based on series characteristics) Enclosure: Likely TENV (based on standard for this motor family) Mounting: Flange-mounted Shaft: Keyed output (standard for 1326AS series)
Condition: New
Weight: 42.00
Depth: 12.00
Length: 12.00
Width: 12.00
SKU: 43696 1.Blickle
