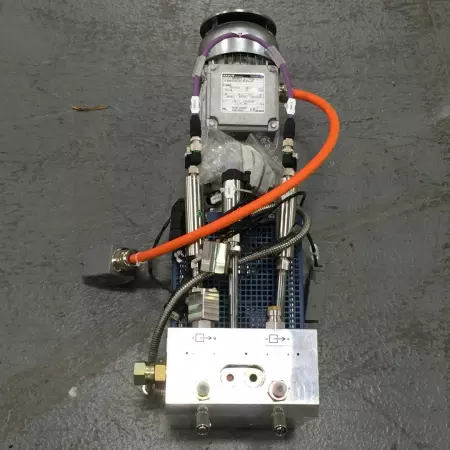

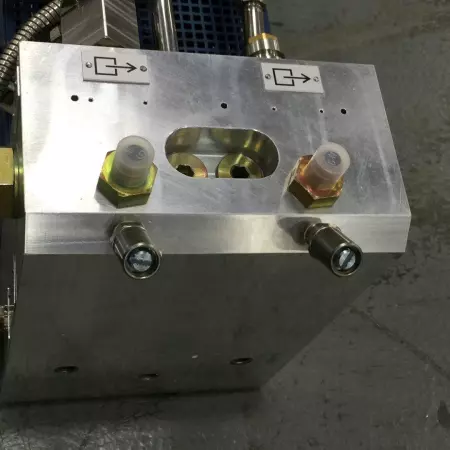

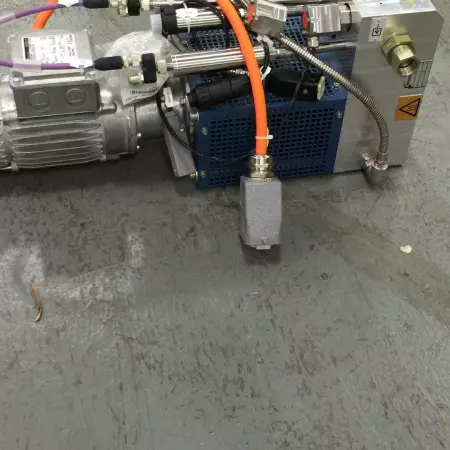

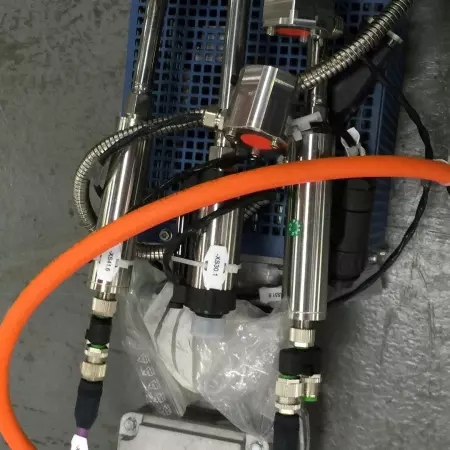

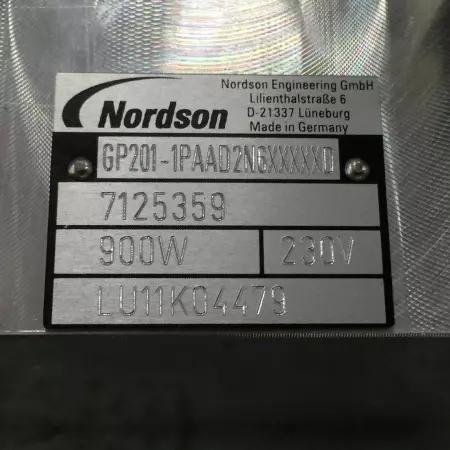

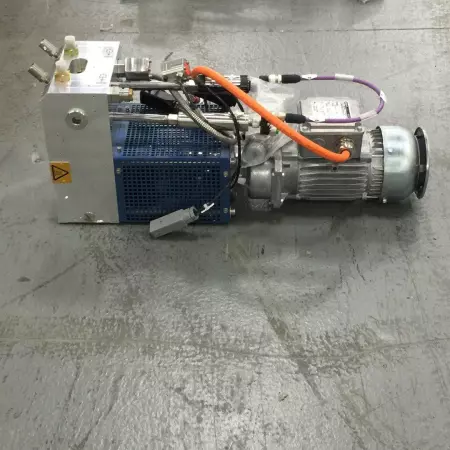

Nordson 7125359 Remote Metering Station

​The Nordson 7125359 Remote Metering Station is a component of the GP200 series, designed to enhance production capabilities by increasing the delivery points of existing adhesive melters with precise, metered add-on functionality. This system offers an economical alternative to purchasing additional melters or converting from non-metered delivery systems.​ nordson.com Key Features: Expanded Application Delivery: Allows the addition of one or more pumping stations between a melter and the point of application, effectively increasing the number of delivery points without the need for additional melters.​ Improved Pattern Consistency: Delivers metered adhesive to control pressure drops, reducing issues such as hammerheads, inconsistent add-on rates, and burn-through on heat-sensitive substrates.​ Flexible Configurations: Offers choices between servo or AC drives and supports one or two single- or dual-stream metering pumps in a wide range of outputs.​ Monitoring Capabilities: Enables monitoring of adhesive temperature and pressures via the melter control system or an auxiliary control module.​ Scalability: Multiple stations can be linked together to add pumping capacity and reduce total hose length, minimizing adhesive degradation, downtime, and service requirements.​ Specifications: Pump Configurations: Available in GP201 (one pump/motor) Pump Types: Supports single or dual-stream Nordson or Feinpruf pumps.​ Pump Speed: Operates between a minimum of 7 rpm and a maximum of 100 rpm, with a recommended speed of 45 rpm.​ Motor Types: With Bauer 0.37kW Gear Motor Operating Temperature Range: 40° to 230° C (100° to 450° F).​ Adhesive Viscosity: Suitable for adhesives with viscosities ranging from 1,000 to 15,000 cps.​ Adhesive Input Pressure Range: 3.4 to 34 bar (50 to 500 psi), with an optimal range of 6.8 to 13.6 bar (100 to 200 psi).​ Pressure Relief Valve: Set at 70 bar (1029 psi).​ Safety Valve with Indication: Set at 85 bar (1250 psi).​ Inlet Hose Fittings: Available in 8, 13, or 16 mm sizes.​ Outlet Hose Fitting: 8 mm.​ Supply Voltage: 240 VAC.​ Heated Zones: One.​ Temperature Sensors: Compatible with 100 ohm platinum RTD or 120 ohm nickel RTD.​ Power Consumption: 900 W for GP20 Dimensions (W x D x H): GP201 with AC motor measures 140 x 240 x 635 mm (5.51 x 9.45 x 25 in.), and GP202 with AC motor measures 300 x 240 x 635 mm (11.81 x 9.45 x 25 in.)

Condition: New – Open box

Weight:   69.00

Depth:   20.00

Length:   27.00

Width:   25.00

SKU:   43740 4.R1.7.1
