In stock 2 available

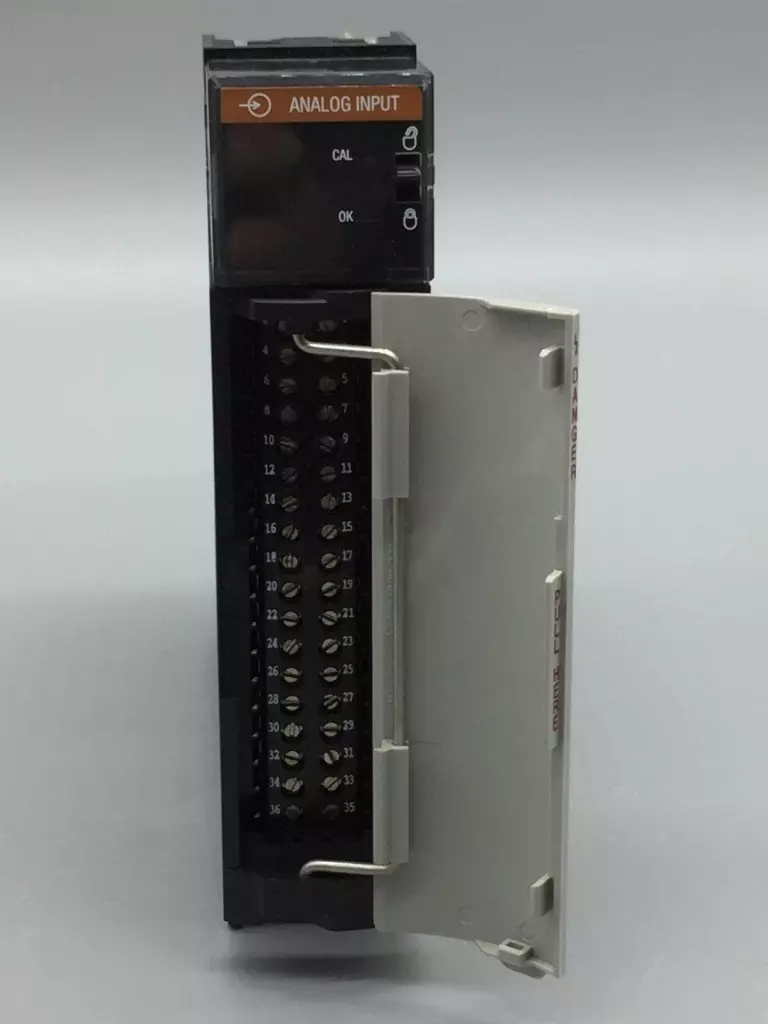

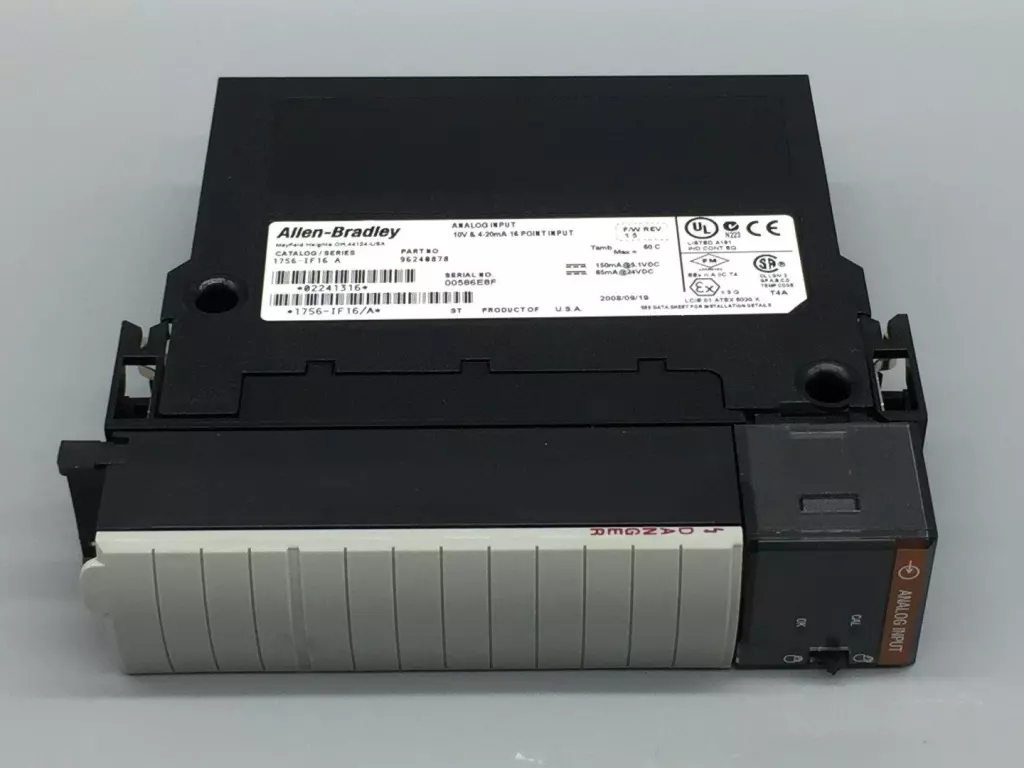

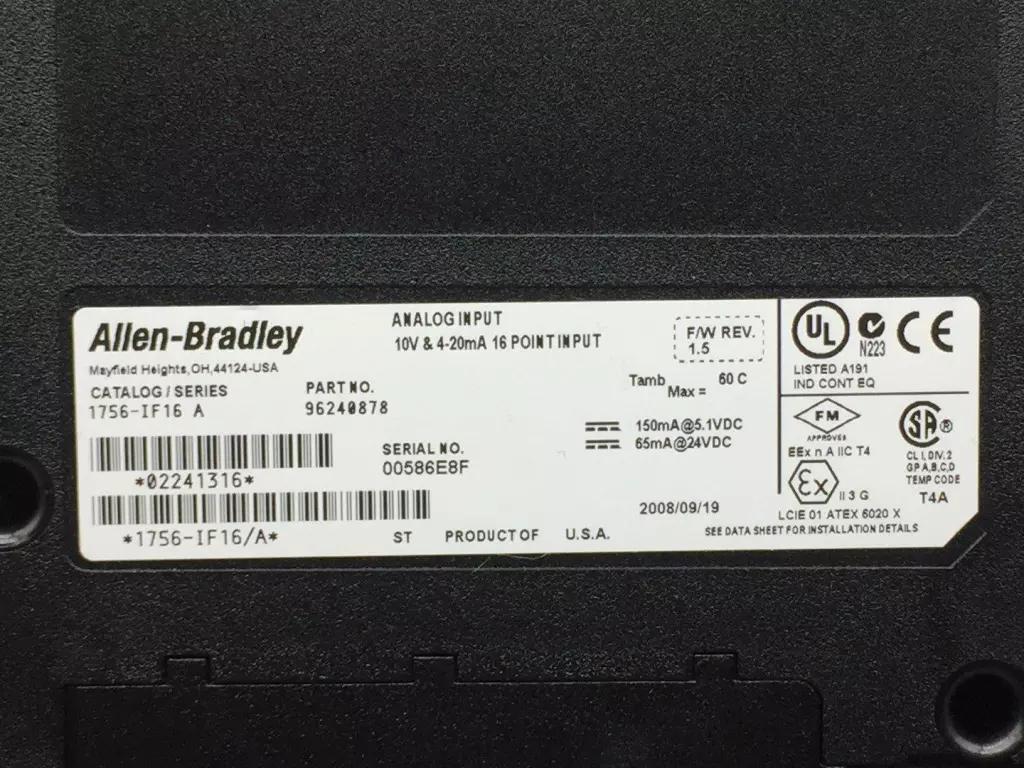

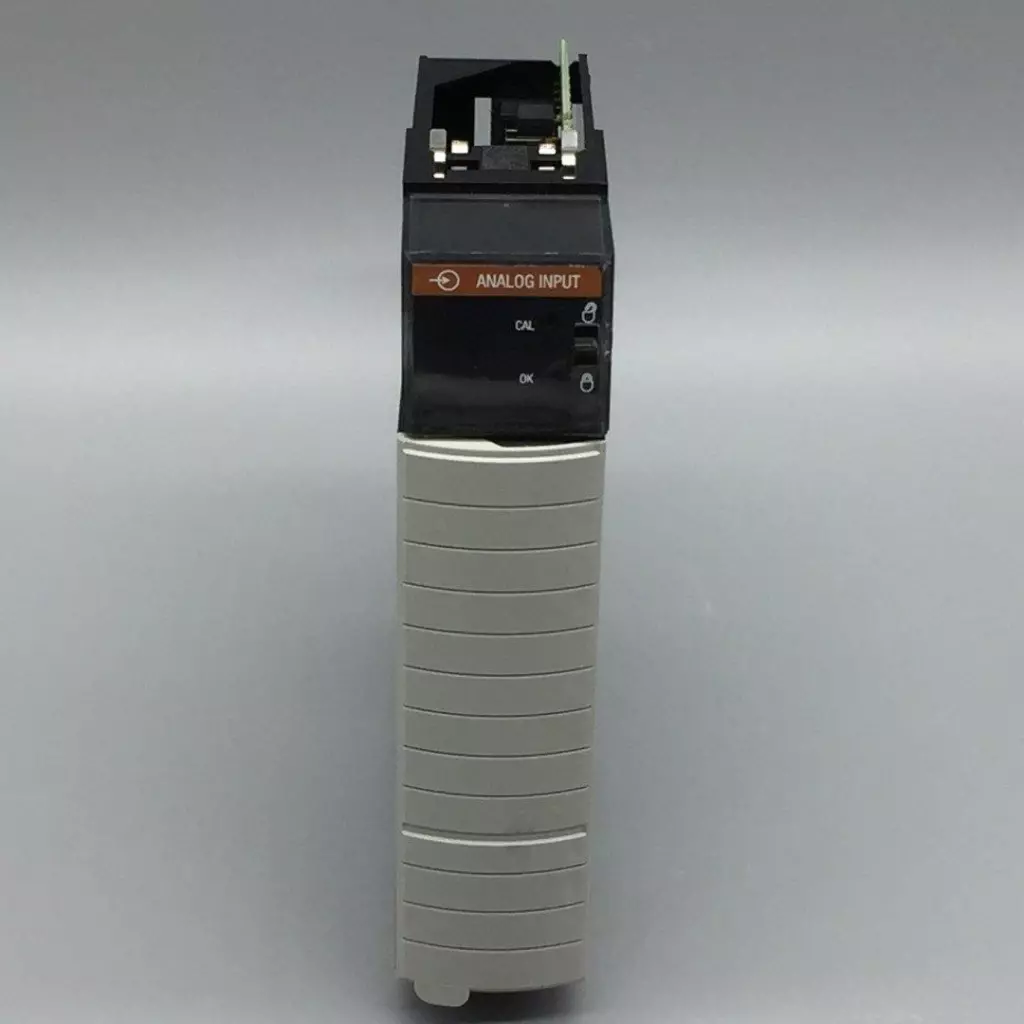

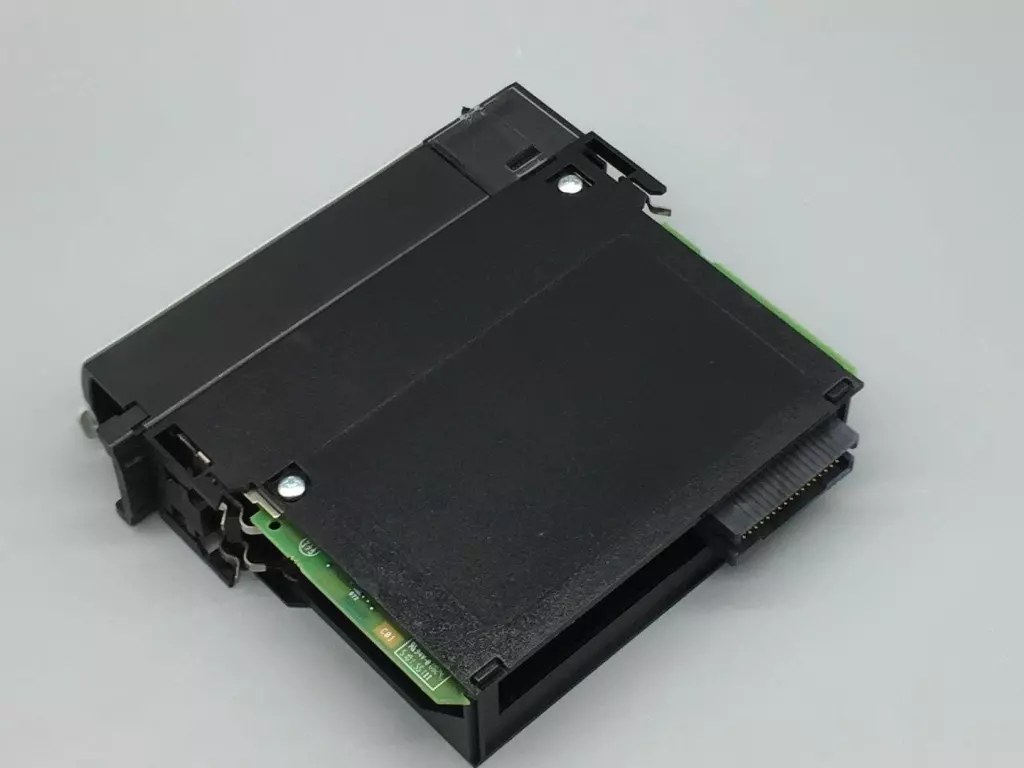

The Allen-Bradley 1756-IF16 is a ControlLogix series 16-channel analog input module, designed for high-density analog signal acquisition in industrial automation systems. It supports both current and voltage input signals and offers precise, scalable analog data capture for applications such as process control, monitoring, and instrumentation. Technical Specifications: Manufacturer: Rockwell Automation / Allen-Bradley Catalog Number: 1756-IF16 Series: ControlLogix Type: Analog Input Module Channels: 16 single-ended analog input channels Input Signal Types: Voltage: ±10V Current: 0–20 mA, 4–20 mA Resolution: 16-bit Input Impedance: Voltage mode: ≥1 MΩ Current mode: ~250 Ω Conversion Rate: Programmable (e.g., 5 ms per channel typical) Accuracy: ±0.05% full scale (typical) Isolation: Channel-to-backplane and channel-to-channel isolation Calibration: Factory-calibrated, no user adjustment needed Backplane Current (5V): ~150 mA Backplane Current (24V): ~85 mA Module Type: Non-isolated single-ended (NISE) Wire Connection: Removable Terminal Block (RTB) – 1756-TBNH or 1756-TBSH (sold separately) Operating Temperature: 0°C to +60°C (32°F to 140°F)
Condition: Used
Weight: 2.00
Depth: 5.00
Length: 12.00
Width: 9.00
SKU: 43750 4.S1.11.5, 4.S2.12.2A
