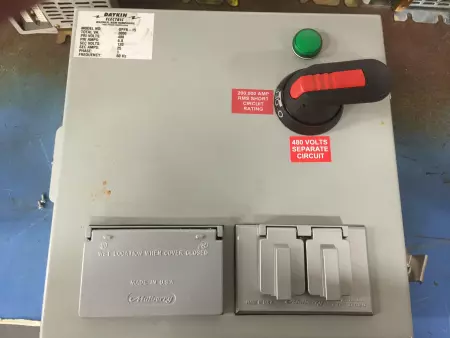

Daykin Electric GPFB-15 Transformer Disconnect Switch 3kVA

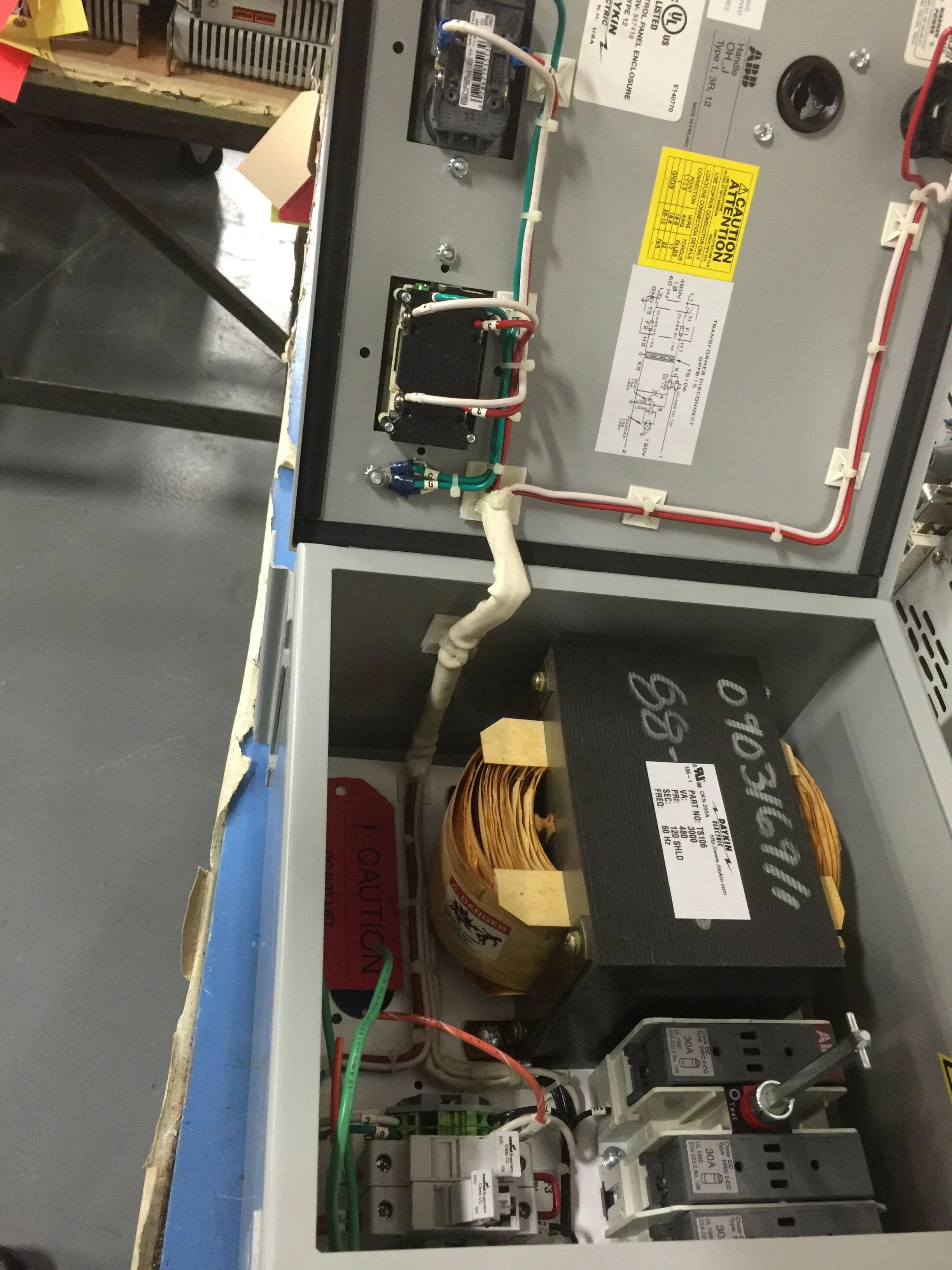

The Daykin Electric GPFB-15 is a transformer disconnect switch designed to provide a dedicated 120V power source for control panel components that require continuous operation, even when the main system power is turned off. This makes it ideal for powering panel lighting, computers, PLCs, HMIs, and other essential control devices. Technical Specifications: Power Rating: 3 kVA (3000 VA) Primary Voltage: 480V Primary Current: 6.3A Secondary Voltage: 120V Secondary Current: 25A Frequency: 60 Hz Enclosure Type: NEMA 12 / IP54 (suitable for general-purpose industrial use) Key Features: Compact Design: Approximate dimensions: 14" x 13" x 9", making it easy to mount externally on a control panel. Allows for flexible installation without consuming excessive space. Safety Features: Lockable disconnect switch interlocked with the door for enhanced safety. Ensures power is disconnected before access, reducing the risk of electrical hazards. Shielded Transformer: Electrostatically shielded to protect against electrical noise and transients, ensuring stable performance of connected devices.

Condition: Used

Weight:   20.00

Depth:   8.00

Length:   16.00

Width:   16.00

SKU:   43799 4.R6.4.2
