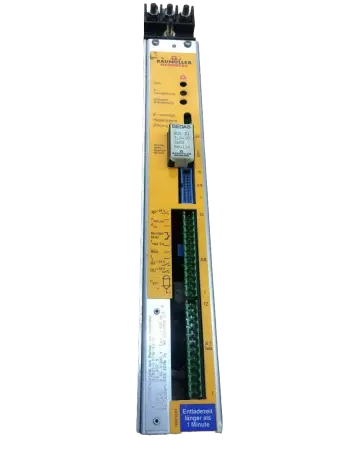

Baumuller BUS21-7.5/15-30-001 AC Servo Drive, 2.2kW - IN GERMANY

The Baumüller BUS21-7.5/15-30-001 is a compact and efficient AC servo drive module designed for precision motion control in industrial applications. It supports high-frequency operation with excellent overload capability and is suitable for dynamic servo motor control tasks. Model: BUS21-7.5/15-30-001 Manufacturer: Baumüller Nürnberg Input Voltage: DC 300 V Output Voltage: 3 × AC 0–200 V Output Current: 7.5 A Output Frequency: 0–300 Hz Overload Capacity: 8 kHz, 200% for 2 s Estimated Continuous Output Power: ≈ 2.2 kW Peak Output Power (at 200% for 2s): ≈ 4.4 kW Operation Mode: BKB 200% 2s Cooling: Forced-air (typical for BUS21 series) Mounting: Panel-mounted Application: High-speed servo control for automation, packaging, and motion systems

Condition: New

Weight:   25.00

Depth:   12.00

Length:   24.00

Width:   18.00

SKU:   43820 1.Blickle
