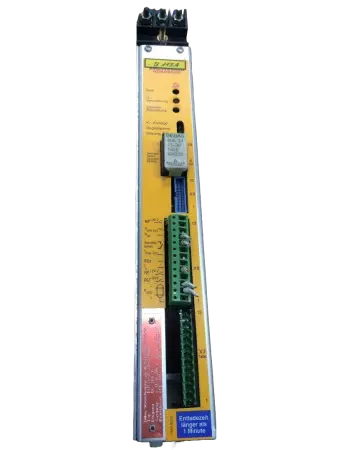

Baumuller BUS21-15/30-30-001 Servo Power Drive, 15kW - IN GERMANY

The Baumüller BUS21-15/30-30-001 is a compact and efficient servo power drive unit engineered for dynamic industrial motion control applications. It is part of the BUS21 series, supporting advanced control for synchronous servo motors with reliable performance and integrated diagnostics. Drive Series: BUS21 Model: BUS21-15/30-30-001 Rated Power Output: 15 kW continuous, 30 kW peak Rated Current: 30 A Peak Current: 60 A Input Voltage: DC 300 V Frequency: 50/60 Hz Output Voltage: 3 × AC 0–200 V Output Current: 13 A Output Frequency: 0–300 Hz Overload Capacity: 8 kHz, 200% for 2 s Control Type: PWM (Pulse Width Modulated) servo amplifier Feedback Support: Resolver, Encoder (depends on configuration) Cooling Method: Forced-air cooling Protection Class: IP20 Mounting: Panel mounting Application: Suitable for dynamic servo applications in packaging, plastics, machine tools, and automation systems Communication: CANopen or optional fieldbus interfaces (e.g., Profibus, EtherCAT) Standards Compliance: CE, UL (depending on variant)

Condition: Used

Weight:   20.00

Depth:   12.00

Length:   24.00

Width:   18.00

SKU:   43821 1.Blickle
