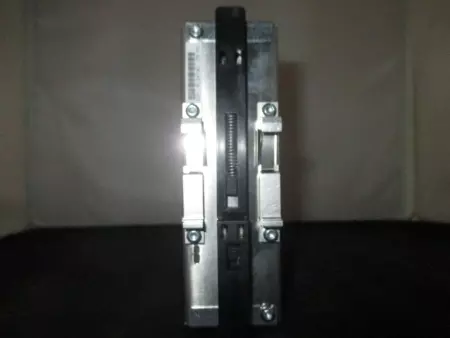

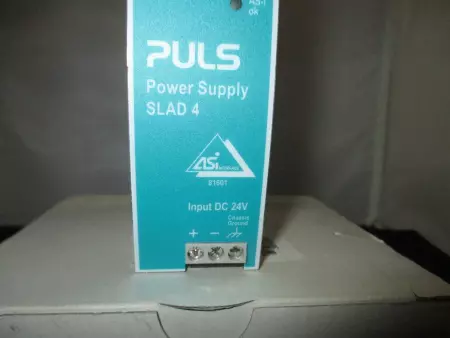

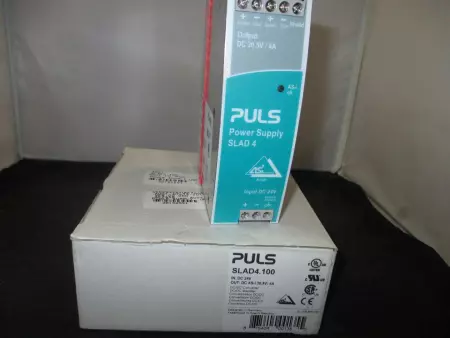

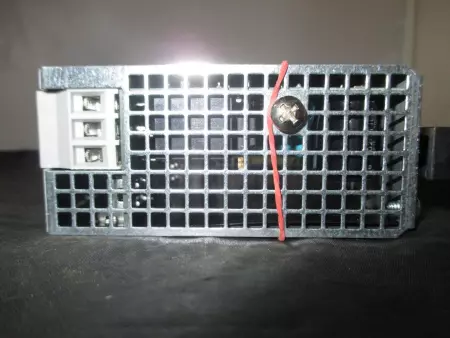

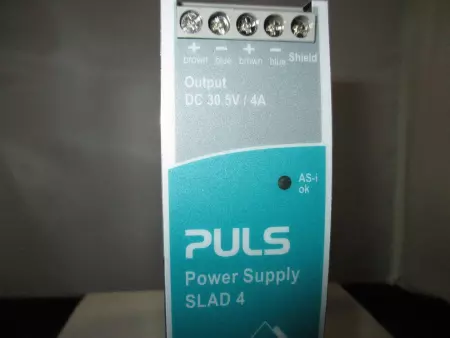

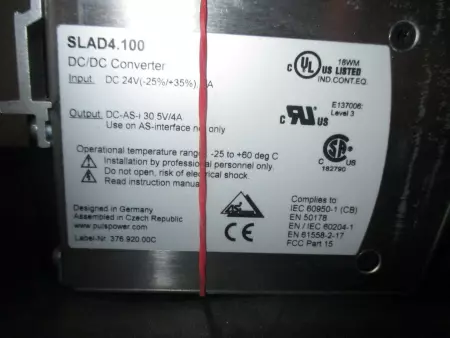

Puls SLAD4.100 Power Supply DC/DC Converter 30.5V 4A

The PULS SLAD4.100 is a DIN rail-mounted DC/DC converter designed for industrial applications requiring a stable power supply. It converts a 24V DC input into a regulated 30.6V DC output with 4A output current, making it ideal for AS-Interface systems and automation networks. Technical Specifications: Input Voltage Range: 18V to 32.4V DC Output Voltage: 30.6V DC (fixed) Output Current: 4A Power Output: 122.4W Efficiency: 90.5% Ripple & Noise: < 100mV peak-to-peak Operating Temperature Range: -25°C to +70°C Cooling Method: Natural convection (no fan required) Dimensions: 40 mm (W) x 124 mm (H) x 102 mm (D) Weight: 500 grams Mounting Type: DIN rail (TS35/7.5 or TS35/15) Protection: Overload, short circuit, and overvoltage protection

Condition: New

Weight:   4.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   43834 4.S2.17.3
