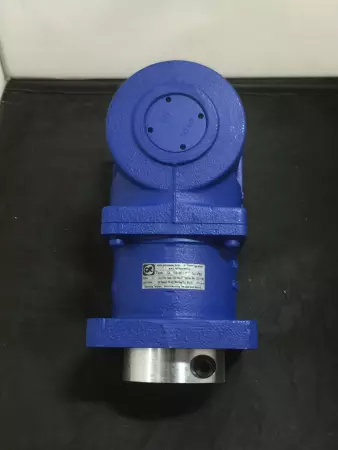

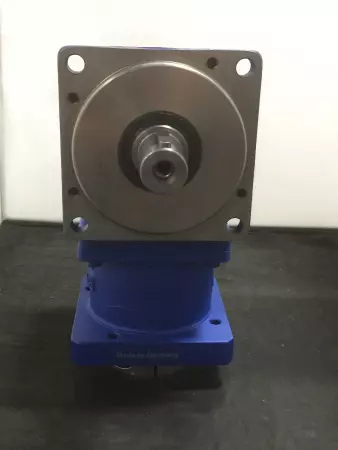

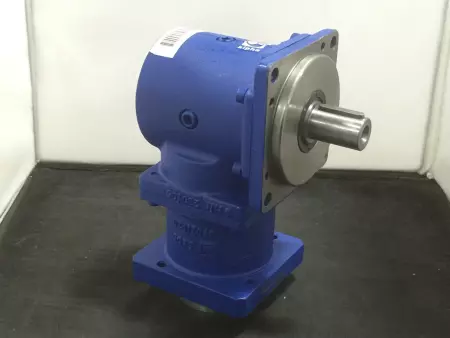

Alpha Wittenstein SK100-MF1-2 Right Angle Gear Box, Ratio 2:1

The Alpha Wittenstein SK100-MF1-2 is a right-angle precision gear reducer with a 2:1 ratio, designed for high-performance motion control applications. It features spiral bevel gears and is ideal for compact automation setups requiring low backlash and high torsional rigidity. Technical Information: Model: SK100-MF1-2 Series: Alpha SP+ / SK (Spiral Bevel Gearbox) Gear Type: Spiral bevel, right-angle configuration Gear Ratio: 2:1 Mounting Style: MF1 (motor flange type 1 – inline motor interface) Frame Size: 100 mm Output Type: hollow shaft Input Compatibility: Custom motor flange (requires motor-specific adapter plate) Backlash: ≤ 6 arcmin (standard); low-backlash variants may be ≤ 3 arcmin Torsional Rigidity: High — ideal for dynamic and precise applications Nominal Output Torque: ~180 Nm (varies with duty cycle and speed) Max Acceleration Torque: ~300 Nm Max Input Speed: 6000 RPM Lubrication: Lifetime lubricated (synthetic oil) Housing Material: High-strength aluminum alloy Cooling: Convection (fanless) Protection Class: IP64 (standard) Applications: Robotics, packaging, machine tools, conveyor drives, and other high-precision automation

Condition: New

Weight:   49.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   44023 4.R1.5.4
