In stock 2 available

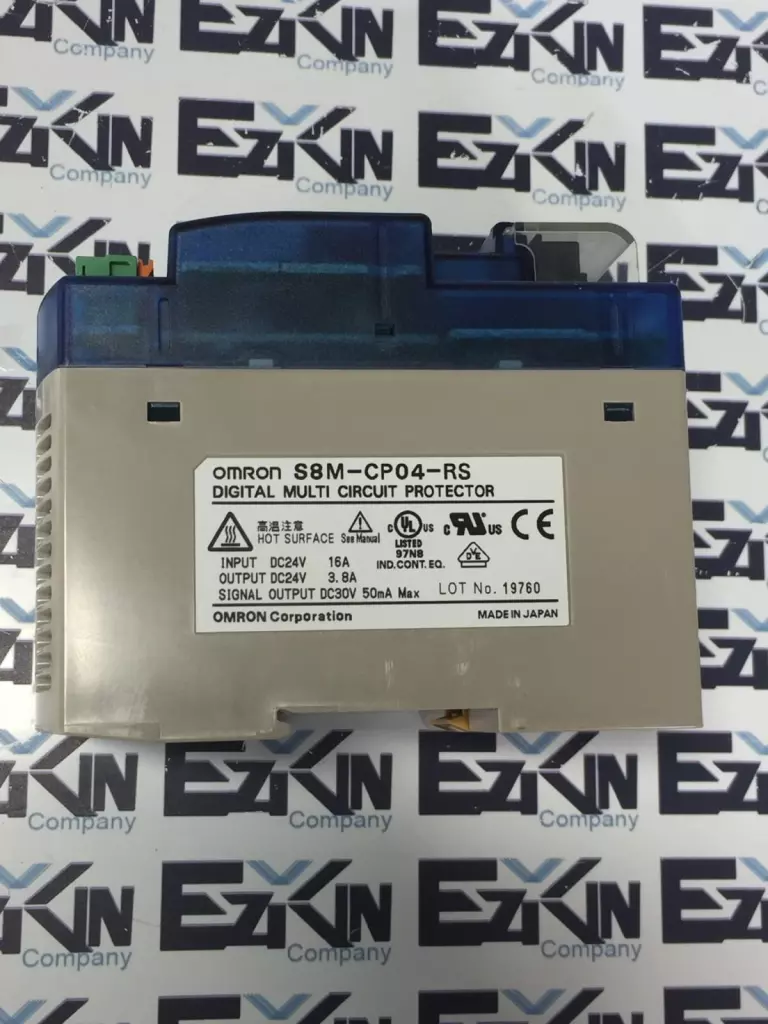

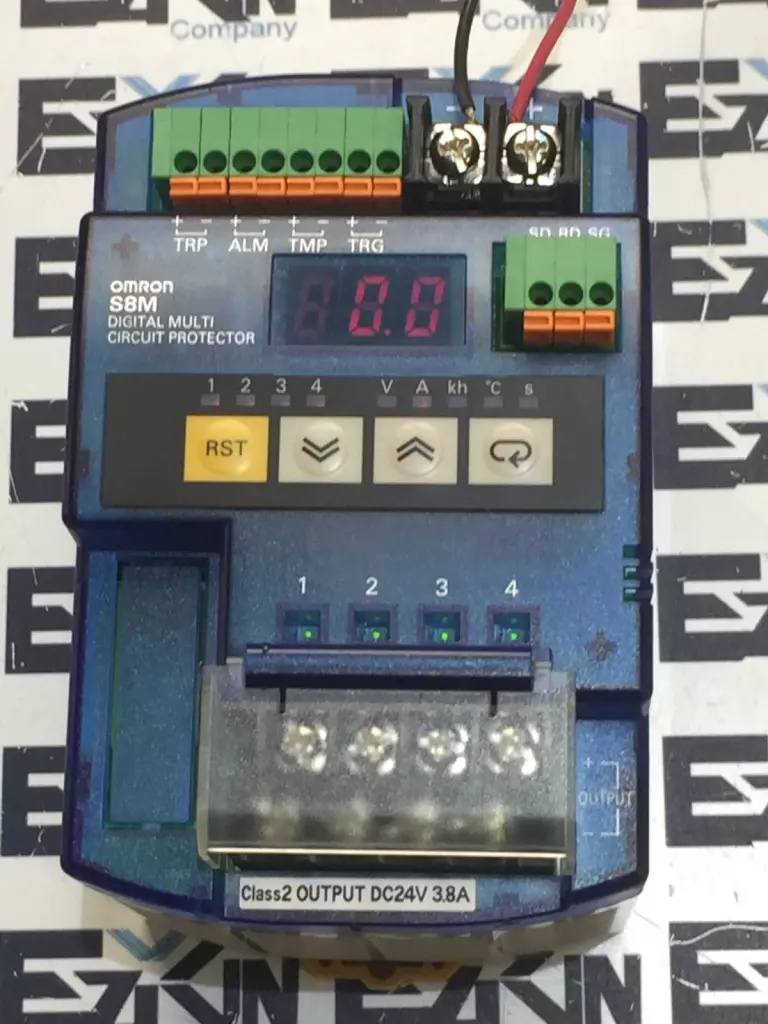

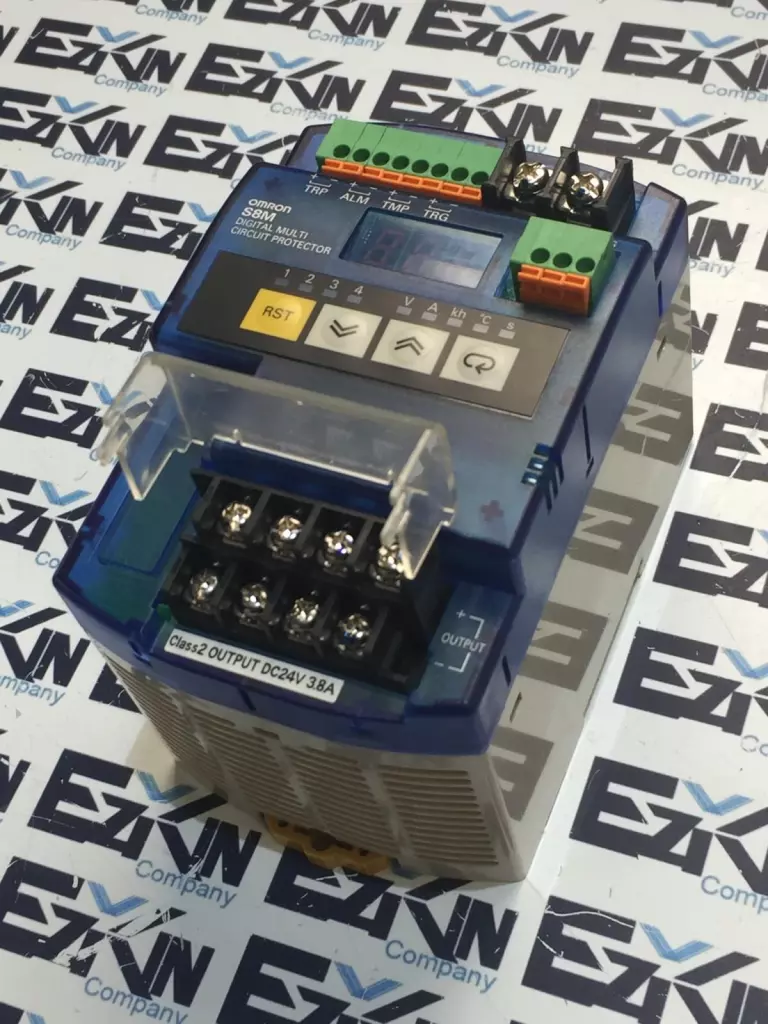

Electronic protection module designed for 24 VDC control panels, providing digitally monitored circuit protection with resettable overload functions. Model: S8M-CP04-RS Type: Digital Multi Circuit Protector Input Voltage: 24 VDC Input Current: 16 A max Output Voltage: 24 VDC (pass-through) Output Current: 3.8 A max per channel (×4 channels) Number of Channels: 4 individually monitored and protected outputs Signal Output: DC 30 V, 50 mA max (status alarm signal output) Interface: RS-232/RS-485 communication (for remote monitoring) Status Indicators: Per-channel LEDs for trip/OK status Protection Features: • Overcurrent protection • Short circuit shutdown • Overload limiting • Manual/remote reset Mounting: DIN rail mount Cooling: Convection Temperature Range: 0 °C to 55 °C Certifications: CE, UL, cURus, RoHS Dimensions: ~105 mm H × 90 mm W × 70 mm D Weight: ~350 g Application: Ideal for protecting 24 VDC circuits in industrial control panels, PLC cabinets, and machinery—safely isolates and monitors individual loads like solenoids, relays, and sensors Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.15
Depth: 12.00
Length: 12.00
Width: 12.00
SKU: 4403 4.S7.10.4
