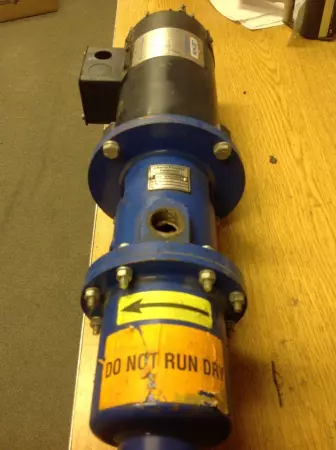

Leeson 98032 DC Motor, 0.75HP Frame USS56C W/Liberty Process Pump

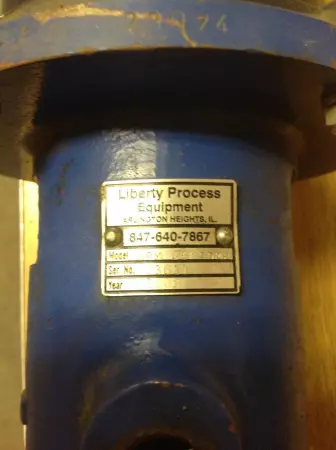

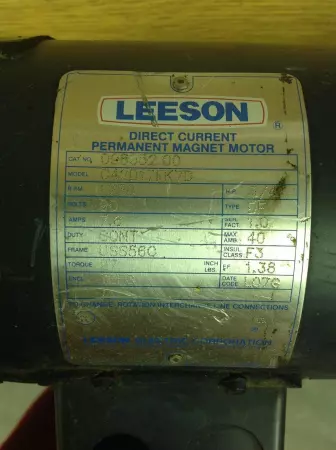

The Leeson 98032.00 is a Direct Current Permanent Magnet Motor, designed for consistent torque output and variable-speed control in industrial and process applications. In this configuration, it's paired with a Liberty Process Pump, making it ideal for metering, transfer, and dosing tasks. Motor Specifications – Leeson 98032.00 Model: C4D17FK7D Type: PMDC (Permanent Magnet DC Motor) Horsepower: 0.75 HP Voltage: 90 VDC Current: 7.6 A Speed: 1750 RPM Frame: USS56C Duty: Continuous (SOMT) Service Factor: 1.0 Max Ambient Temp: 40°C Insulation Class: F Enclosure: TEFC (Totally Enclosed Fan Cooled) Torque: Not specified (can be calculated: ~3.0 Nm at 1750 RPM) Efficiency: 73.58% Date Code: L076 (indicating manufacturing date) Rotation: Reversible by interchanging line connections Application with Liberty Process Pump Pump Type: Liberty Progressive Cavity Pump (typical configuration) Use Case: Sludge, polymer, adhesive, or viscous fluid transfer Motor Mount: C-face flange (compatible with direct coupling) Speed Control: Typically used with DC drive controller for flow rate regulation

Condition: Used

Weight:   50.00

Depth:   10.00

Length:   10.00

Width:   24.00

SKU:   44142 4.R7.3.3
