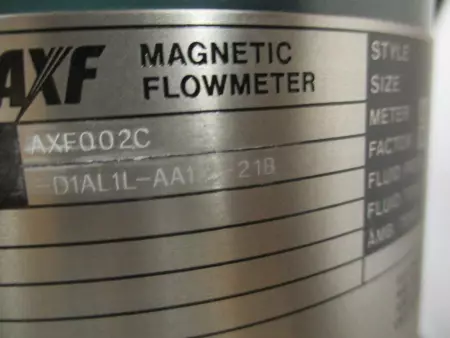

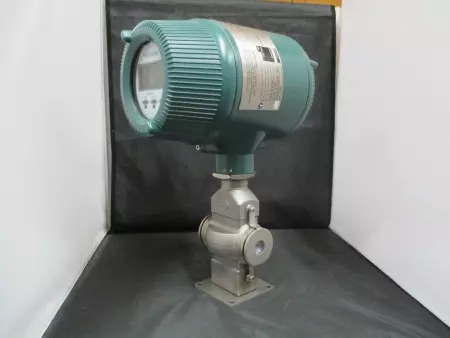

Yokogawa AXF002C-D1AL1L-AA12-21B AXF Magnetic Flowmeter

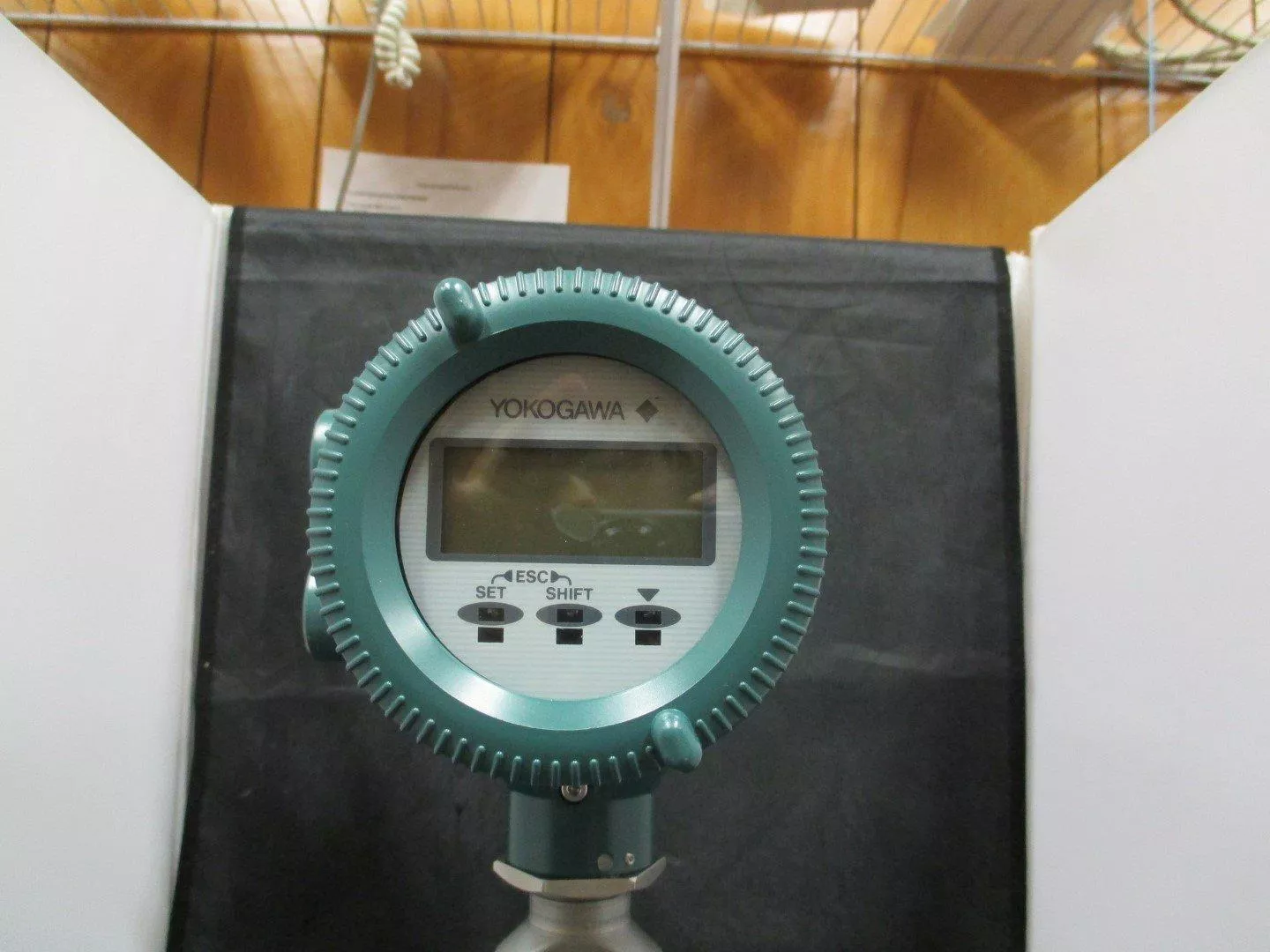

The Yokogawa AXF002C-D1AL1L-AA12-21B is a magnetic flowmeter from the ADMAG AXF series, designed for accurate and reliable fluid flow measurement in industrial processes. Although this model has been discontinued, it remains widely used in various applications. Key Features: Dual Frequency Excitation: Enhances measurement stability and improves response time, especially for high-concentration slurries. Low Conductivity Measurement: Capable of accurately measuring fluids with conductivities as low as 1 µS/cm, expanding its usability. Electrode Coating Diagnostics: Monitors electrode impedance to detect insulating coatings, ensuring long-term measurement accuracy. Replaceable Electrodes: Allows for easy removal and cleaning without disassembling the entire flowmeter, reducing maintenance efforts. Enhanced Display: Features a backlit LCD with multiple display modes, including bar graphs and diagnostic information. Infrared switches enable adjustments without opening the enclosure. Specifications: Accuracy: Standard accuracy of 0.35% of reading, with an optional 0.2% high-accuracy calibration. Power Supply Options: 100-240V AC, 50/60 Hz 24V DC (depending on model configuration) Fluid Conductivity: Minimum 1 µS/cm for proper operation. Lining Materials: Available with options such as PFA, ceramics, polyurethane rubber, and natural soft rubber, depending on process requirements. Process Connections: Supports wafer, flange, and sanitary (Tri-clamp, DIN, ISO) connections for versatile installation. FLOW METER 12W

Condition: New

Weight:   19.00

Depth:   13.00

Length:   18.00

Width:   13.00

SKU:   44175 4.S5.10.5
