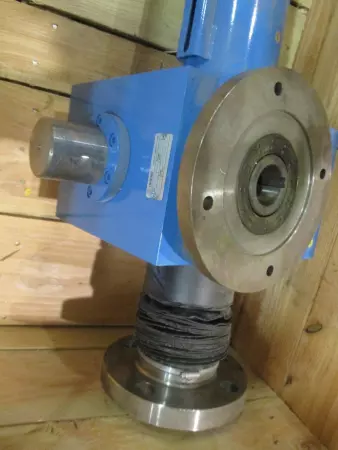

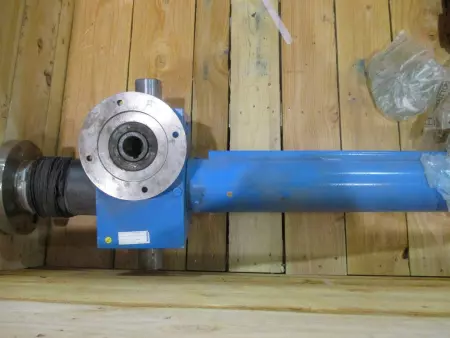

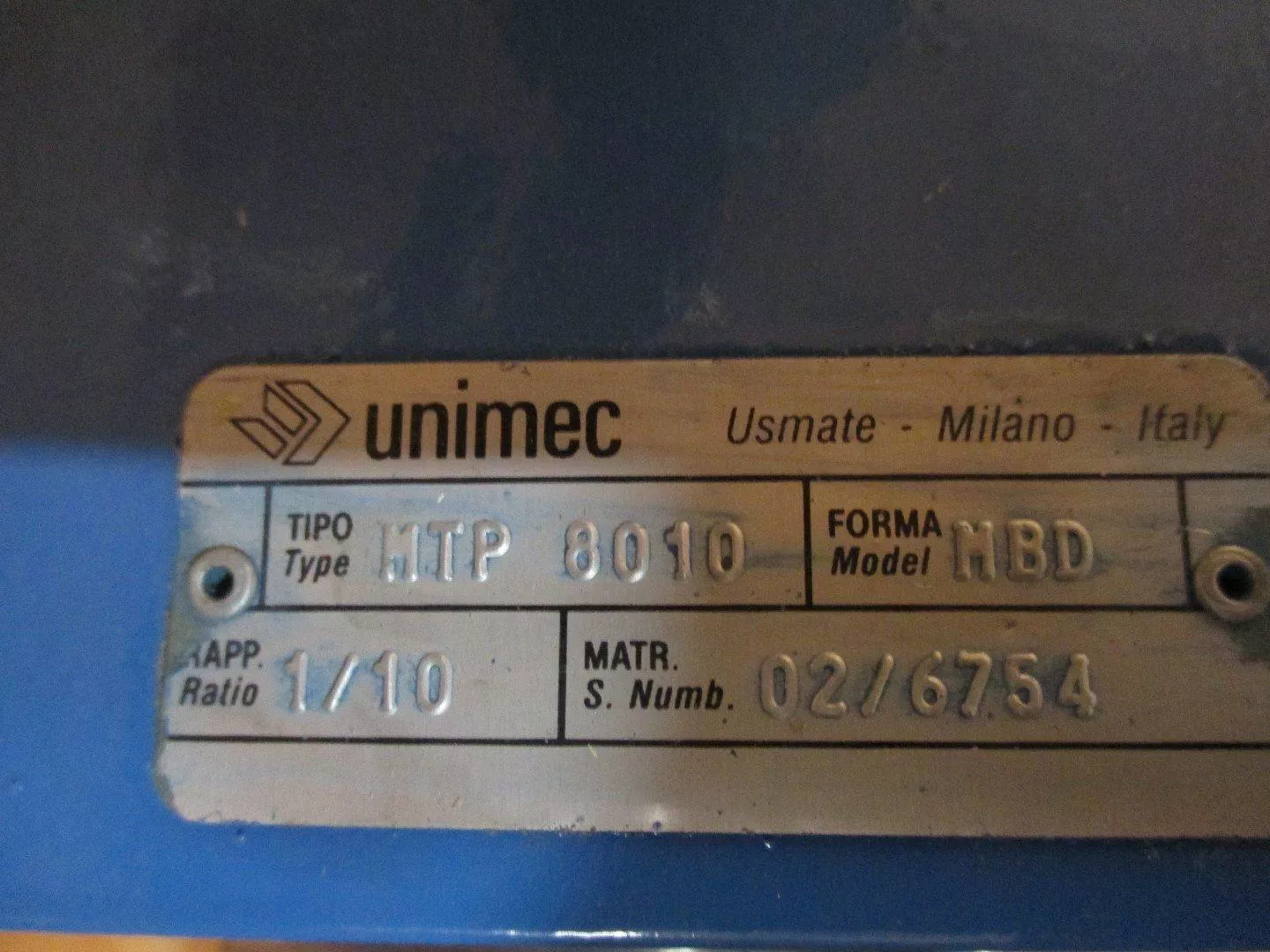

Unimec MTP 8010 Screw Jack Gearbox 1:10 Ratio

The Unimec MTP 8010 is a high-capacity trapezoidal screw jack, designed for heavy-duty linear motion applications. Engineered for precise load handling, this unit is ideal for lifting, positioning, and adjusting industrial equipment with high efficiency and reliability. Technical Specifications: Load Capacity: Static Load: 80 kN Dynamic Load: 50 kN Input Speed: Up to 1800 RPM Gear Ratios: 1/10 – Balanced speed and force Efficiency: 20% for 1/10 ratio Material Composition: Worm Gear: Case-hardened & ground alloy steel Worm Wheel: Chill-molded aluminum bronze Threaded Spindle: Carbon steel (Tr 80x10 threading) Housing: Machined grey cast iron 165 NM ANTI-ROTATION TORQUE AT MAX LOAD 300 N MAX RADIAL LOAD ON WORM

Condition: Used

Weight:   140.00

Depth:   30.00

Length:   40.00

Width:   48.00

SKU:   44232 4.R7.3.3
