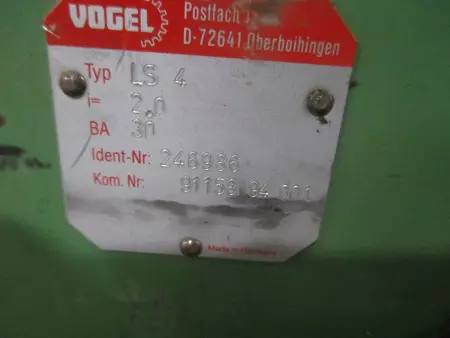

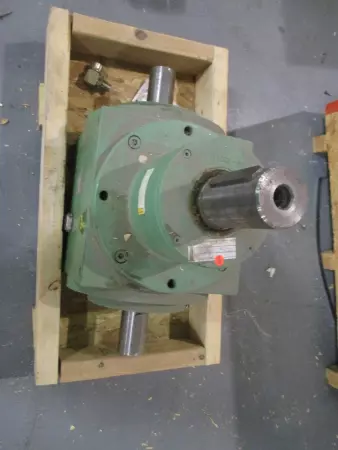

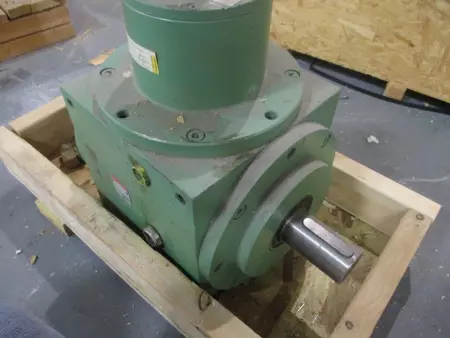

Vogel LS-4 Right Angle Gearbox 2:1 Ratio

​The Vogel LS-4 is a right-angle spiral bevel gearbox with a 2:1 ratio, designed for industrial applications requiring efficient torque transmission and space-saving configurations.​ Key Specifications: Gear Ratio: 2:1​ Design: Right-angle configuration with a solid shaft and key​ Output Torque: Maximum permissible output torque: 630 Nm​ Nominal output torque: 205 Nm​ Input Speed: Permissible average input speed: 850 min⁻¹​ Maximum input speed: 1275 min⁻¹​ Backlash: Standard ≤ 10 arcmin; reduced ≤ 7 arcmin (optional)​ Efficiency: Approximately 97% BOLT HOLE SPREAD APPROX 160MM, SHAFT DIAMETER INPUT 60MM & OUTPUT 50MM, LENGTH OF INPUT SHAFT 90MM. LENGTH OF OUTPUT SHAFT 110MM. LENGTH OF BODY 262MM CUBED

Condition: Used

Weight:   275.00

Depth:   30.00

Length:   30.00

Width:   30.00

SKU:   44233 4.R1.4.8
