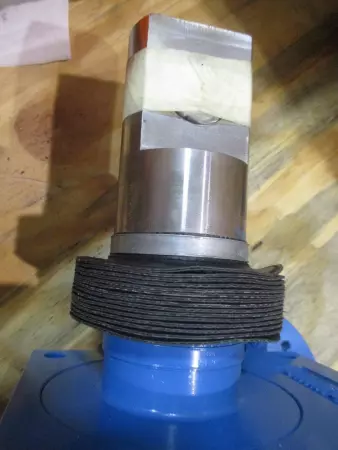

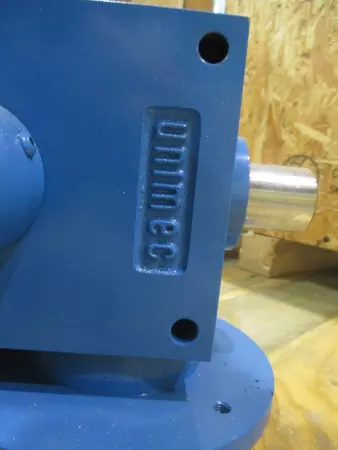

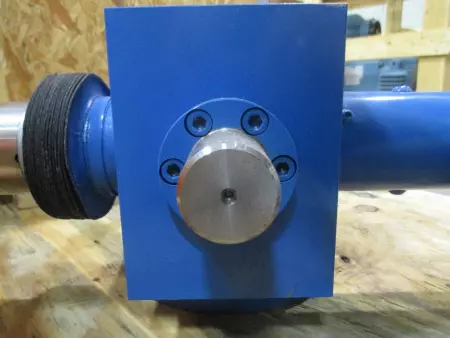

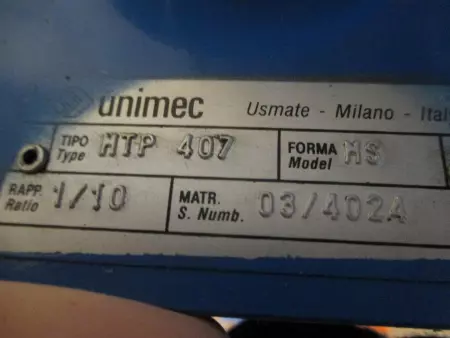

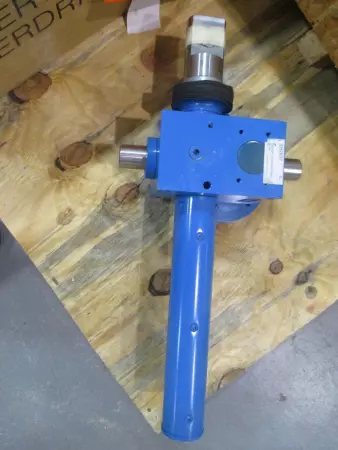

Unimec MTP407 Screw Jack, 10:1 Ratio

The Unimec MTP407 is a mechanical screw jack gearbox designed for precise linear motion and heavy load handling. With a 10:1 gear reduction ratio, it provides efficient torque transmission for industrial applications. Key Specifications: Gear Ratio: 10:1 Static Load Capacity: 80 kN Dynamic Load Capacity: 50 kN Maximum Input Speed: 1,800 RPM Anti-Rotation Torque at Max Load: 165 Nm Radial Load on Worm Shaft: 600 N Operating Temperature Range: -10°C to 80°C Weight: Gearbox: 18 kg Trapezoidal Screw: 9 kg/m Performance Characteristics: Translation per Worm Revolution: 0.7 mm (for 10:1 ratio) Efficiency: ~25% Start-Up Efficiency: ~18% Maximum Linear Speed: 1,260 mm/min Torque at Maximum Load: 23 Nm Maximum Worm Screw Torque: 128 Nm Idle Torque: 0.45 Nm Design Features: Compact Cubic Housing – Allows universal mounting for integration into different machine setups. Multiple Shaft Configurations – Works with IEC standard motors, brushless motors, and pneumatic motors. Precision Spiral Bevel Gearing – Ensures high efficiency, smooth operation, and low noise levels.

Condition: New – Open box

Weight:   85.00

Depth:   16.00

Length:   12.00

Width:   35.00

SKU:   44234 4.R2.4.5
