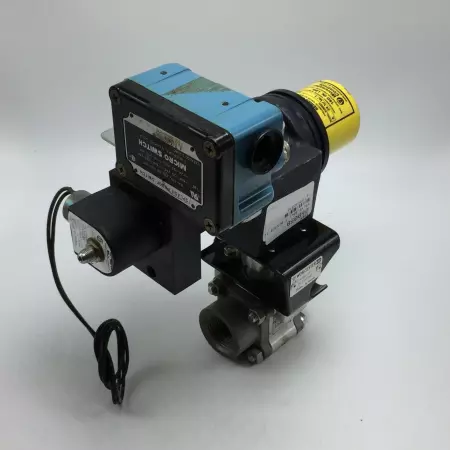

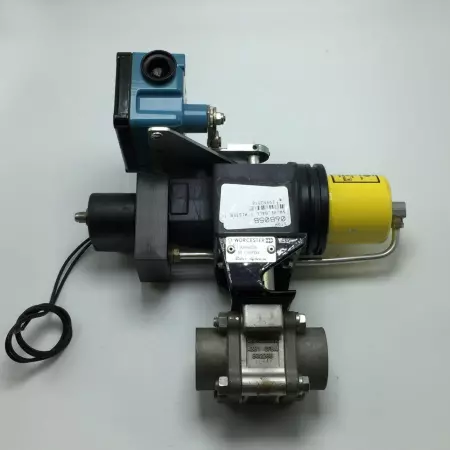

Worcester Controls A34WW1R4 Pneumatic Valve Actuator W/Valve & Switch

Includes the following attached parts:

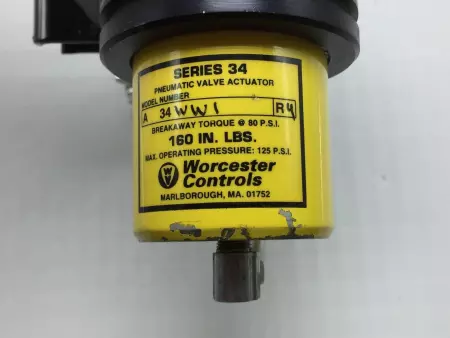

Worcester Controls Part# A-34WW1-R4 - Pneumatic Valve Actuator Breakaway Torque 80PSI, Max Operating Pressure 125PSI

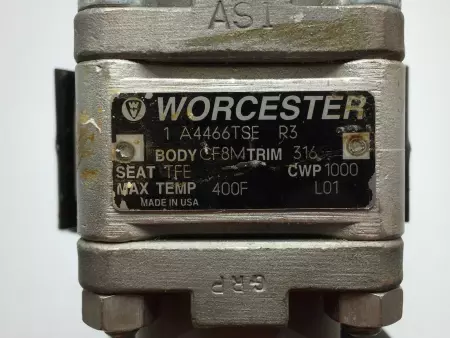

Worcester Part# 1A4466TSE - Ball Valve 2 Way 1” Npt, Body cf8m, Trim 316, CWP 1000, Seat TFE

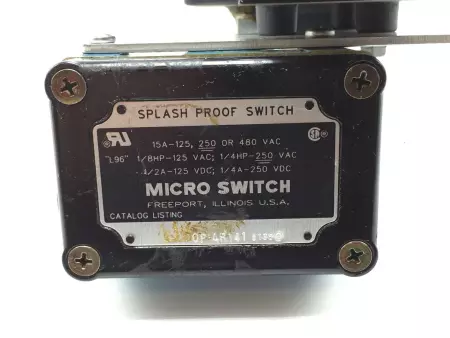

Honeywell Micro Switch Part# OP-AR141 – Enclosed Switch Series OP: Side Rotary, Fixed lever length with steel roller, 1NO 1NC Snap Action SPDT, CW actuation; 15A-125, 250 or 480VAC

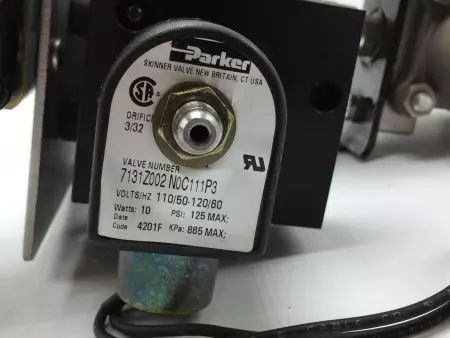

Parker Part# 7131Z002N0C111P3 – Parker/Skinner Solenoid Valve, 10W, 125 Max Psi, 885 Max KPa, 110/120V, 50/60Hz

A34WW1R4Brand

Condition: Used

Weight:   25.00

Depth:   16.00

Length:   16.00

Width:   16.00

SKU:   44418 4.S6.7.1
