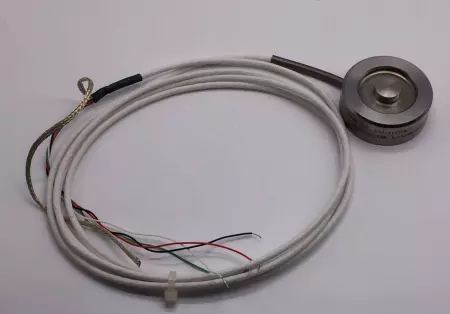

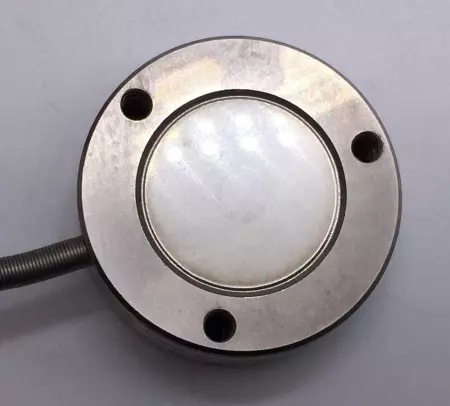

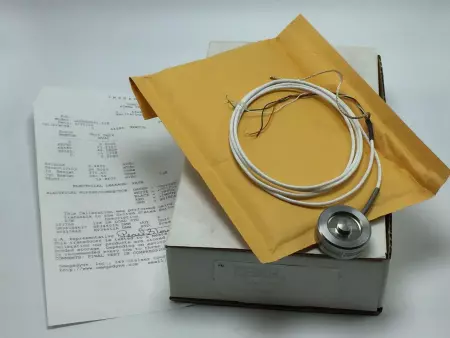

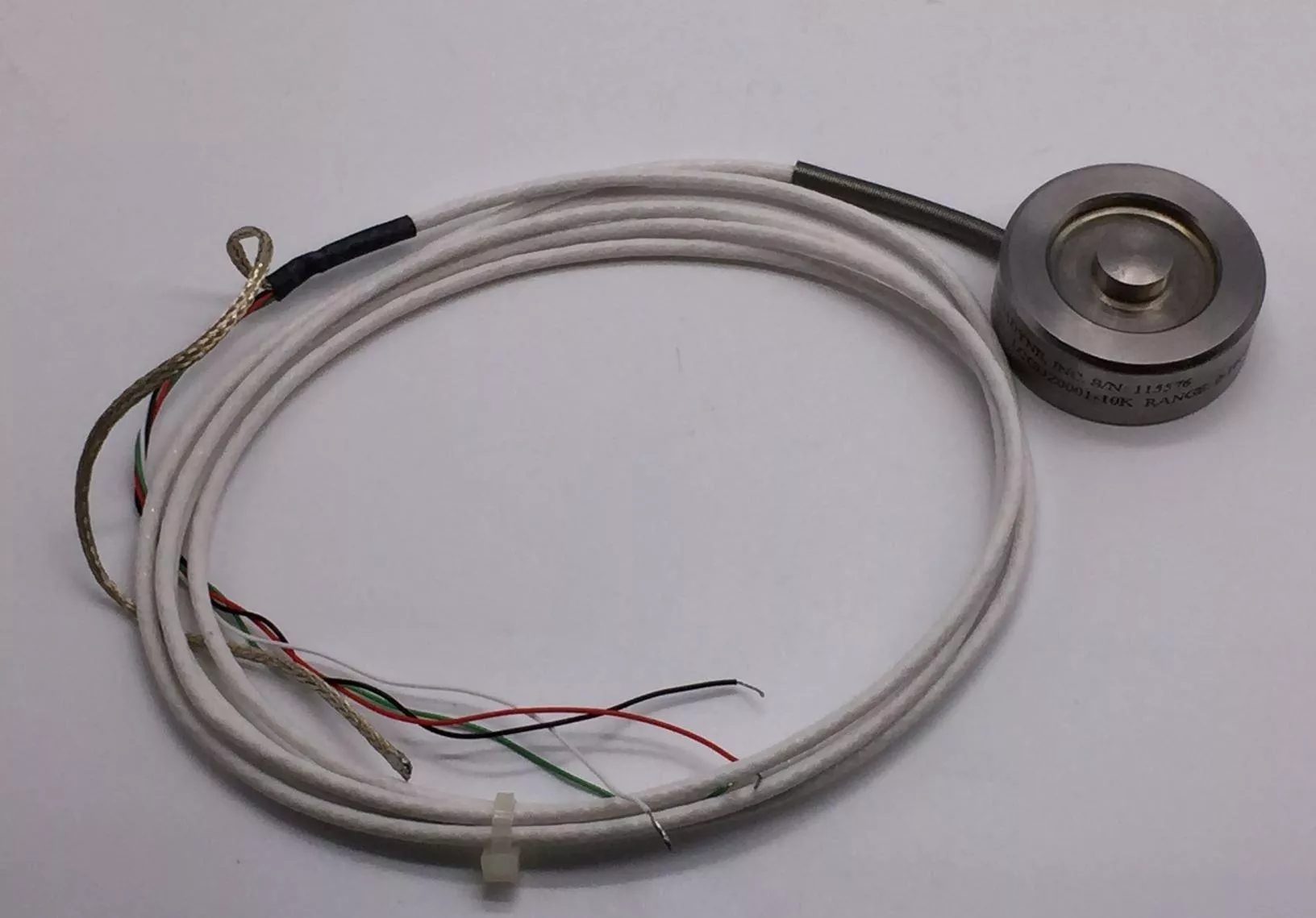

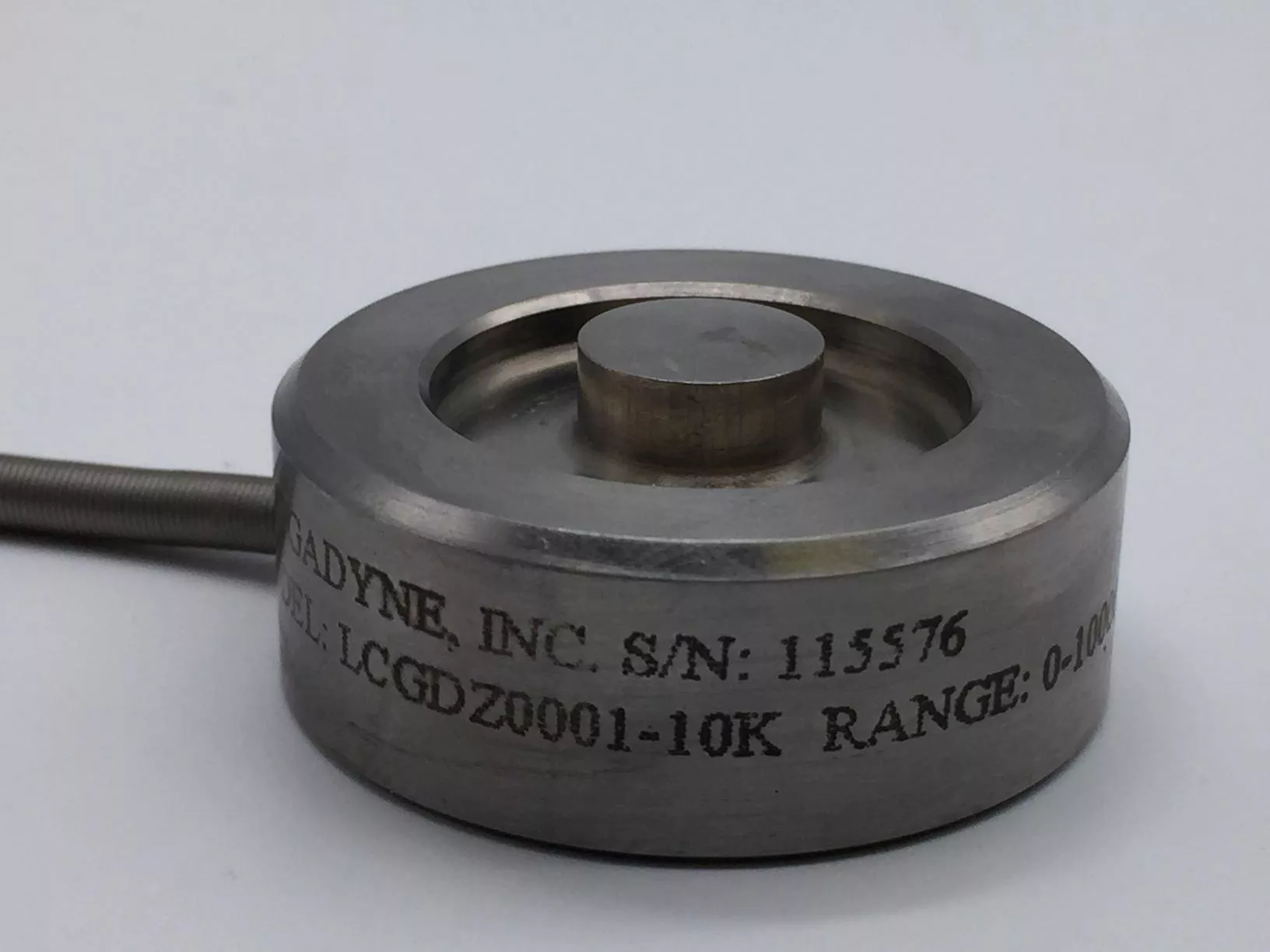

New in Mfg Packaging The Omegadyne LCGDZ0001-10K is a miniature industrial compression load cell designed to accurately measure compressive forces up to 10,000 pounds-force (lbf). With its compact stainless steel construction and integral load button design, it provides high accuracy, durability, and ease of integration for industrial applications requiring precise force measurements. Technical Specifications: Capacity: 10,000 lbf Output: 2 mV/V nominal Linearity: ±0.25% Full Scale Output (FSO) Hysteresis: ±0.20% FSO Repeatability: ±0.10% FSO Zero Balance: ±2% FSO Deflection: ~0.003 inches Safe Overload: 150% of capacity Ultimate Overload: 300% of capacity Bridge Resistance: Minimum 350 ohms Material: Stainless steel Protection Rating: IP65 Operating Temperature Range: -65°F to 250°F (-54°C to 121°C) Compensated Temperature Range: 60°F to 160°F (16°C to 71°C) Thermal Effects: Span: ±0.018% of reading per °F Zero: ±0.009% FSO per °F Dimensions: Overall Diameter (D1): 1.5 inches (38 mm) Height (H): 0.63 inches (16 mm) Load Button Diameter (D2): 0.43 inches (11 mm) Mounting Hole Thread: #6-32 UNC Mounting Hole Depth (L): 0.08 inches (2 mm) Cable Length: 5 feet (shielded)
Condition: New
Weight: 6.00
Depth: 6.00
Length: 12.00
Width: 12.00
SKU: 44655 4.S5.13.4
