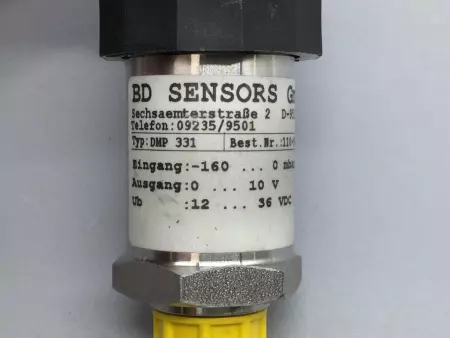

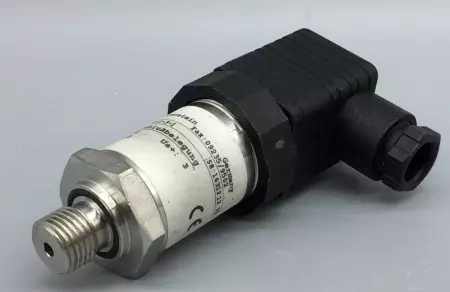

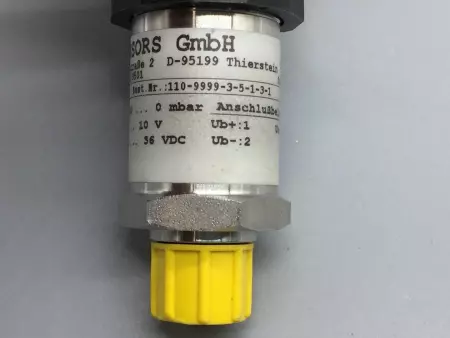

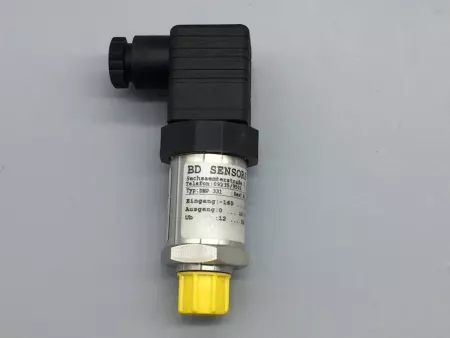

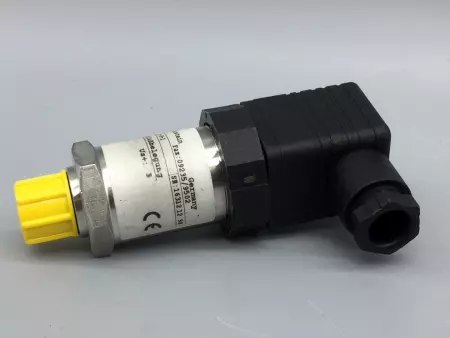

BD Sensors DMP331 Pressure Transmitter 12-36VDC

The BD Sensors DMP331 is a high-precision industrial pressure transmitter designed for measuring pressures of gases, vapors, and liquids in industrial process environments. With a robust stainless steel housing and a wide supply voltage range (12–36 VDC), it's suitable for use in harsh environments across various industries like mechanical engineering, hydraulics, and energy systems. Model: DMP 331 Measurement Type: Relative or absolute pressure Pressure Ranges: From 0...100 mbar up to 0...600 bar (user-configurable range) Output Signal: 4–20 mA, 2-wire (standard), other options: 0–10V, 0–5V on request Supply Voltage: 12–36 VDC (for 4–20 mA output) Accuracy: ≤ ±0.25 % FSO (standard), optional: ±0.1 % FSO Temperature Compensation Range: -20 to +85 °C Medium Temperature: -40 to +125 °C Operating Temperature: -40 to +85 °C Process Connection: G1/4", G1/2", 1/4" NPT, 1/2" NPT, others on request Electrical Connection: DIN EN 175301-803-A (standard), M12x1, Binder, cable outlet, etc. Housing Material: Stainless steel 1.4404 (316L) Sensor Element: Stainless steel (fully welded) or ceramic Ingress Protection: IP65 to IP67 depending on connector Certifications: CE, RoHS compliant

Condition: New

Weight:   3.00

Depth:   5.00

Length:   5.00

Width:   5.00

SKU:   44965 4.S10.2.3B
