In stock 2 available

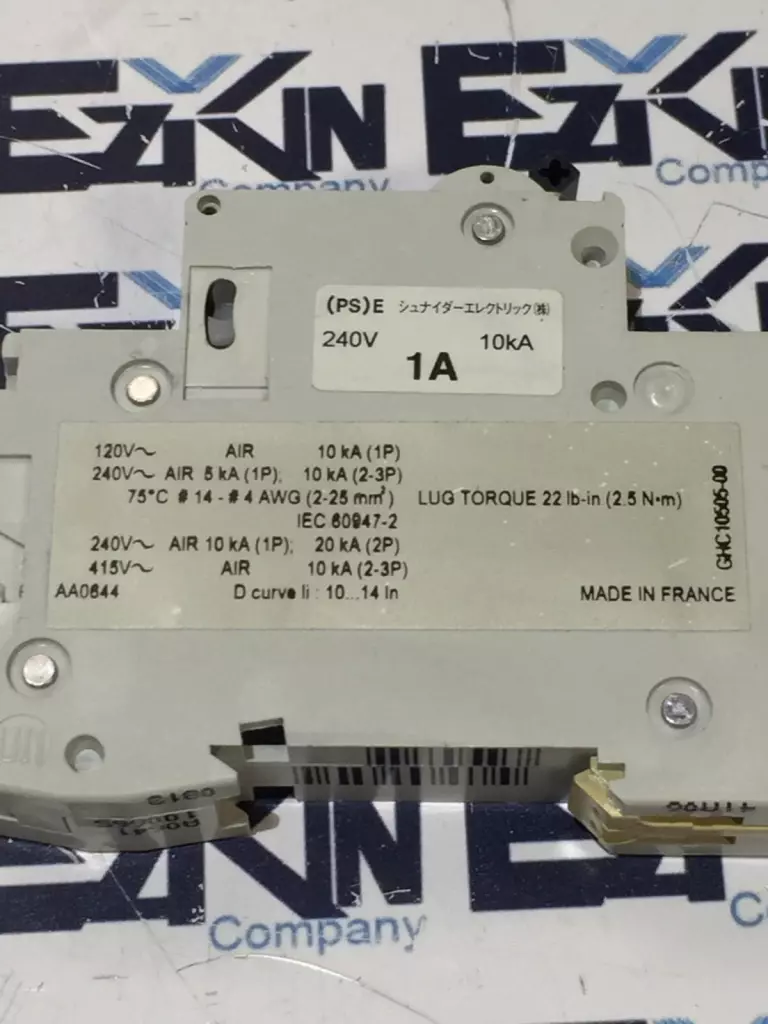

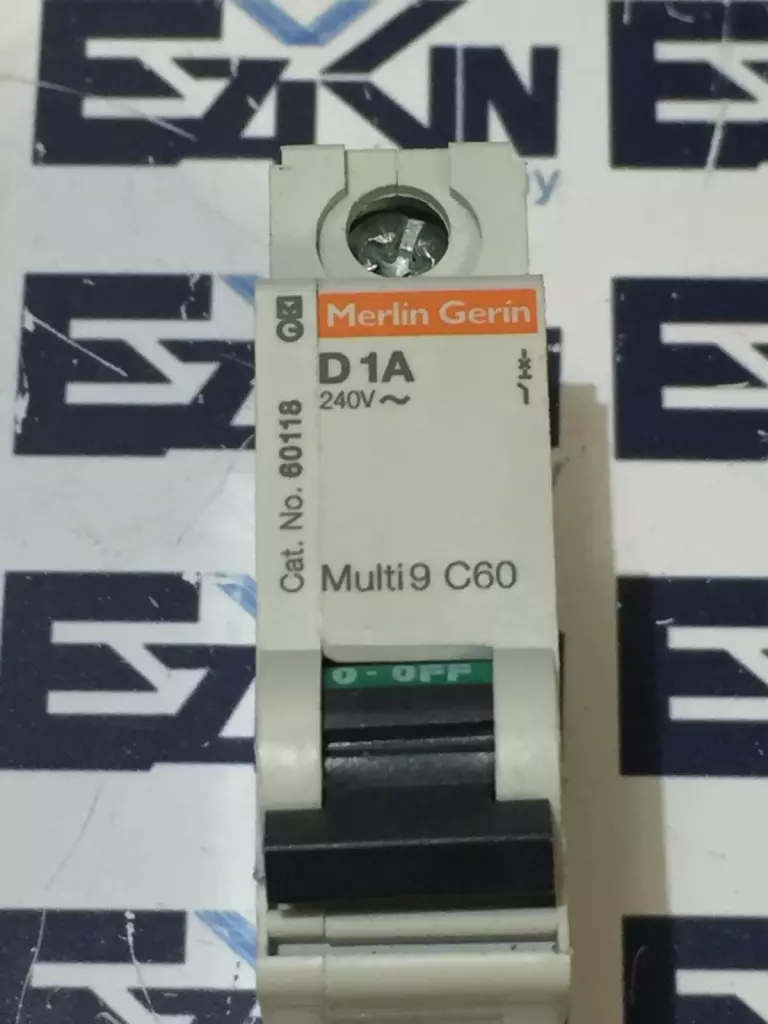

Compact, DIN-rail mountable miniature circuit breaker (MCB) designed for protection in industrial and commercial electrical systems. This unit is part of the Multi 9 C60 series with a 1A D-curve trip characteristic. Model: 60118 D1A Series: Multi 9 C60 Manufacturer: Merlin Gerin (Schneider Electric Group) Type: Miniature Circuit Breaker (MCB) Poles: 1P (single pole) Rated Voltage: 240 V AC Rated Current: 1 A Breaking Capacity: 10 kA at 240 V (IEC 60947-2 standard) Curve Type: D (trips at 10–14× In, suited for high inrush loads) Frequency: 50/60 Hz Wire Size: #14–#4 AWG (2–25 mm²) Lug Torque: 22 lb-in (2.5 N·m) Terminal Type: Screw clamp Operating Temperature: 75 °C rated terminal Mounting: DIN rail Standards: IEC 60947-2 Country of Origin: France Marking Code: AA0844 Applications: Suitable for industrial machinery, transformers, motor circuits with high inrush current, and panelboards. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.10
Depth: 4.00
Length: 6.00
Width: 4.00
SKU: 4526 4.S10.1.3C
