SMC VF3140 Pilot Operated Solenoid Valve

The SMC VF3140 is a pilot-operated 5-port solenoid valve designed for controlling air flow in pneumatic systems. It is part of the VF3000 series, known for its reliability, fast response, and compatibility with manifold or standalone installations.

Model: VF3140
Series: VF3000
Type: 5-Port Pilot-Operated Solenoid Valve
Actuation: Internal pilot type
Port Configuration: 5 ports (2-position or 3-position depending on submodel)
Pressure Range: 1.5 to 9.0 kgf/cm² (approx. 0.15 to 0.9 MPa)
Medium: Compressed air (filtered and lubricated or non-lubricated)
Coil Voltage: Varies by submodel (commonly 24VDC or 110/220VAC)
Mounting: Base or manifold mountable
Response Time: Fast response (typically under 50 ms)
Manual Override: Locking or non-locking type (varies)
Electrical Entry: Grommet, plug connector, or DIN terminal (submodel-dependent)

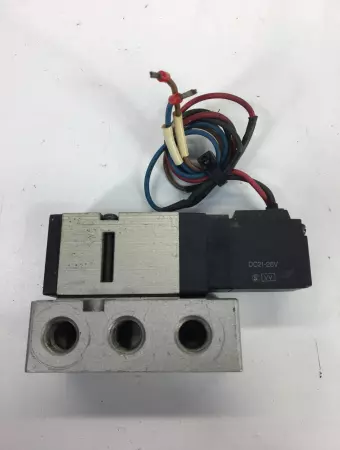

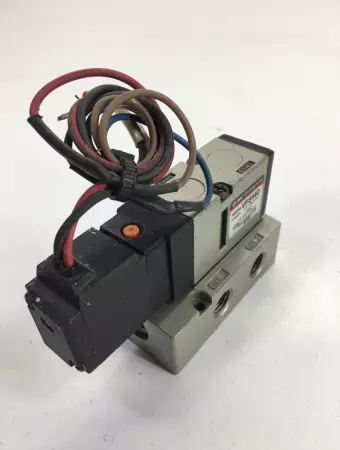

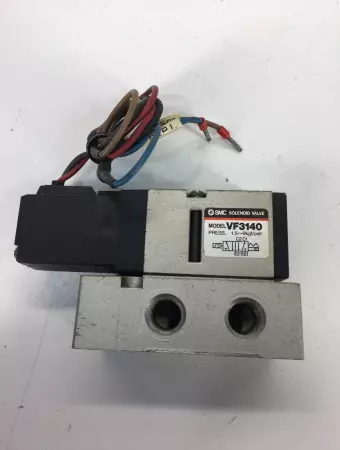

Applications: Air cylinder control, directional flow control, factory automation systems, pick-and-place mechanisms, and pneumatic conveyors Please review pictures carefully and let us know if you have any questions!
