In stock 7 available

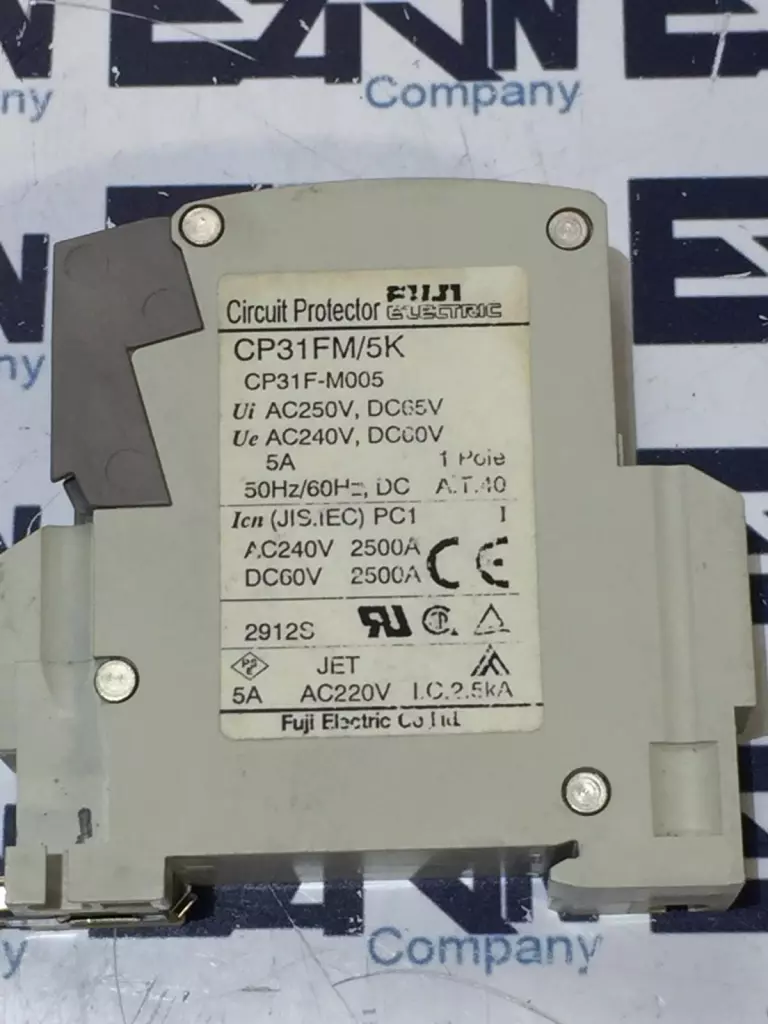

Compact, DIN-rail-mountable circuit protector designed for branch circuit protection in control panels. Offers reliable interruption for both AC and DC applications with high breaking capacity. WITH ALARM SWITCH Model: CP31FM/5K Submodel: CP31F-M005 Type: Circuit Protector (Miniature Breaker) Poles: 1-pole Rated Current: 5 A Rated Voltage (Ui): 250 V AC / 65 V DC Operating Voltage (Ue): 240 V AC / 60 V DC Frequency: 50/60 Hz (AC) Breaking Capacity (Icn): • AC240 V: 2500 A • DC60 V: 2500 A Utilization Category: PC1 (per JIS/IEC) Mounting: DIN rail Trip Curve: A.T. 1.0 Approvals: UL Recognized, CE, TÜV, JET certified Terminal Type: Screw terminal Manufacturer: Fuji Electric Co., Ltd. Color: Light gray body with dark actuator Typical Applications: Protection of control circuits, instrumentation loops, and power distribution in automation panels. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.10
Depth: 4.00
Length: 7.00
Width: 7.00
SKU: 4537 4.S6.1.3
