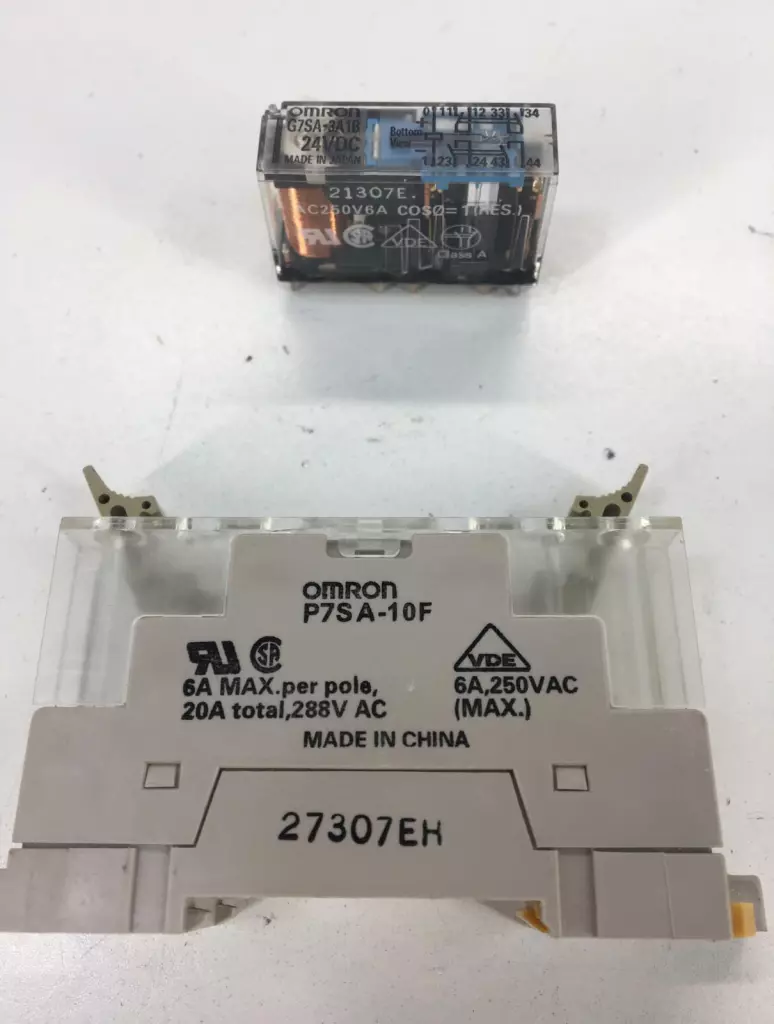

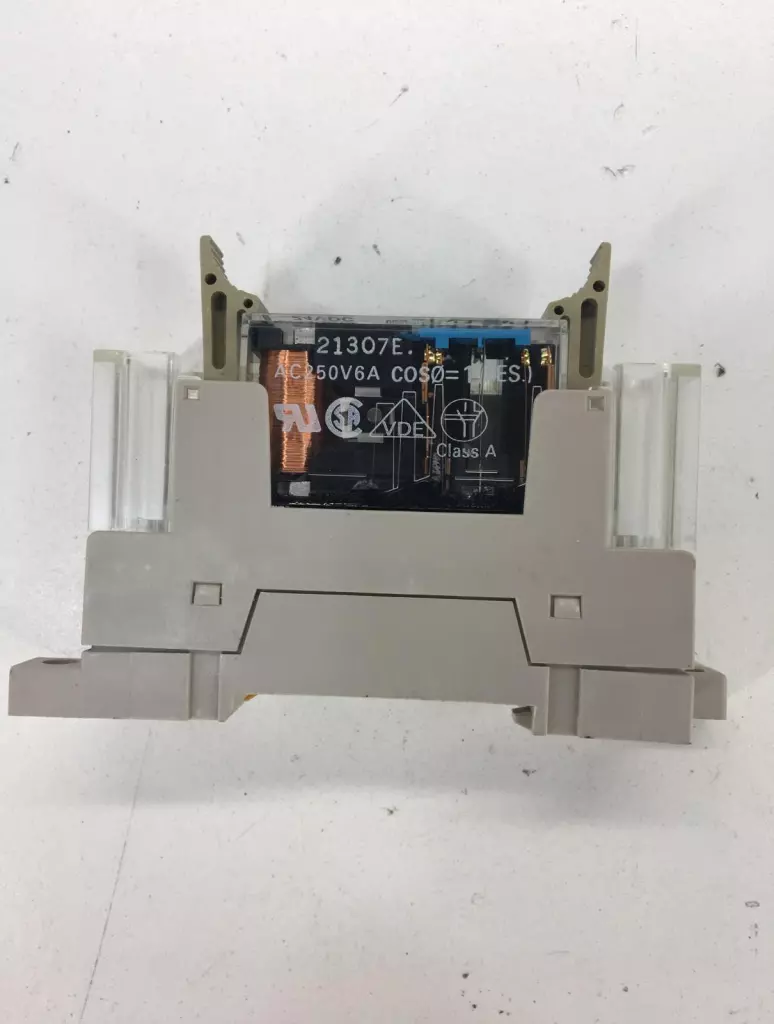

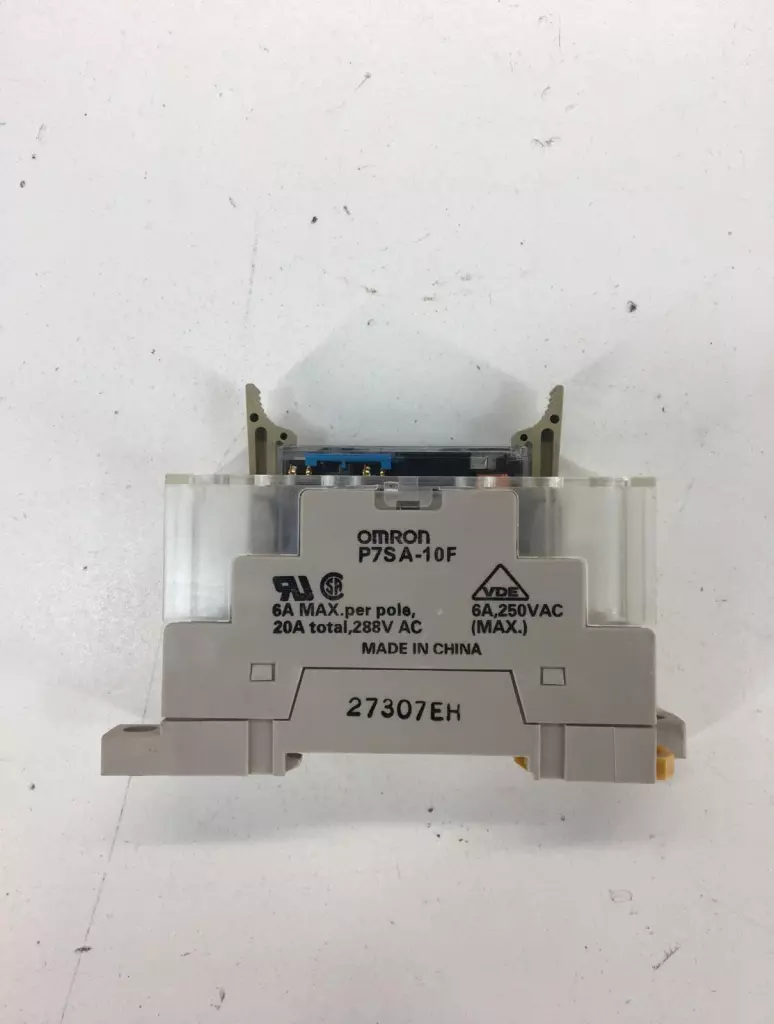

Overview: High-reliability safety relay with forcibly‑guided contacts, ideal for safety circuits requiring positively driven contact feedback. Compact plug‑in relay with DIN-compatible socket simplifies installation and inspection. Specifications: Model: G7SA‑3A1B (with P7SA‑10F socket) Contact Configuration: • 3 PST Normally Open (NO) contacts • 1 SPST Normally Closed (NC) contact Contact Type: Forcibly‑guided (positively driven) contacts for safety applications Contact Rating: 6 A @ 250 VAC, 3 A @ 24 VDC (cos φ = 1) Coil Voltage: 24 VDC Coil Power Consumption: ~0.9 W (approx. 37 mA at 24 VDC) Coil Type: Non-polarized, DC coil Mounting: 10‑pin P7SA‑10F plug‑in PC or DIN socket Terminal Type: Double-sprung contacts in socket, No-screw wire list Insulation Voltage (Between coil & contact): 2,500 VAC Dielectric Strength: 2,500 VAC, 1 min Mechanical Life: 10 million operations Electrical Life: 100,000 ops @ rated load Operate Time: ≤ 15 ms Release Time: ≤ 10 ms Ambient Temperature: –40 °C to +70 °C Shock Resistance: 1,000 m/s² (mechanical) Vibration Resistance: 10‑55 Hz, 0.75 mm double amplitude Certifications: UL, CSA, VDE, TÜV, CE (EN ISO 13849‑1 / EN 60947‑5‑1 safety) Housing Color: Black relay, gray socket Total Height (relay + socket): approx. 30 mm Typical Applications: Safety contactor control, dual‑channel safety circuits, emergency stop circuits Standards Compliance: Designed for safety circuits in machinery (EN 60204, ISO 13849)
Condition: Used
Weight: 0.90
Depth: 4.00
Length: 6.00
Width: 4.00
SKU: 4542 4.S5.15.2
