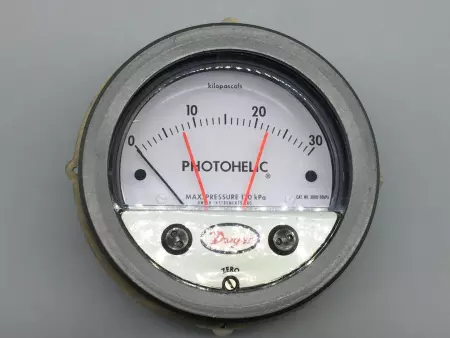

Dwyer 3000MR Photohelic® Pressure Gauge 0-30kPa

The Dwyer 3000MR Photohelic® Pressure Gauge is a dual-function device that combines a high-precision differential pressure gauge with a reliable pressure switch. This allows for both real-time monitoring and automated control, making it ideal for applications requiring accurate pressure regulation. Technical Specifications: Functionality: Differential pressure gauge with dual setpoint switching Medium Compatibility: Air and non-combustible, non-corrosive gases Accuracy: ±2% of full scale Pressure Limits: Standard: Up to 25 psig (1.725 bar) Temperature Range: 20 to 120°F (-6.67 to 48.9°C) Process Connections: 1/8" female NPT (side and back ports available) Switch Type: Dual independent setpoints SPDT relays (Form C) Relay Ratings: 1.0 A @ 30 VDC Power Supply: 24 VDC, regulated within ±10%

Condition: New

Weight:   5.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   45423 4.S5.13.2
